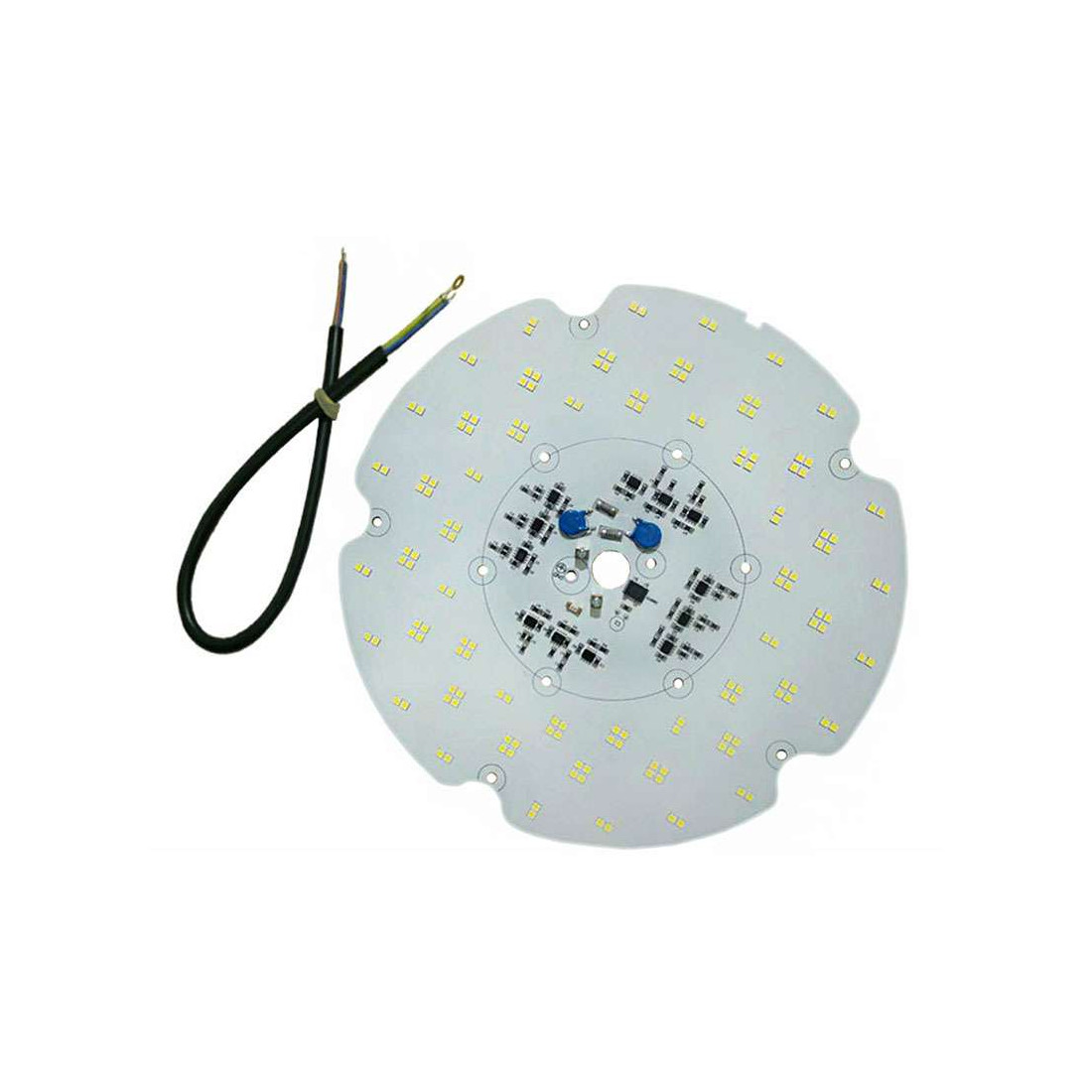

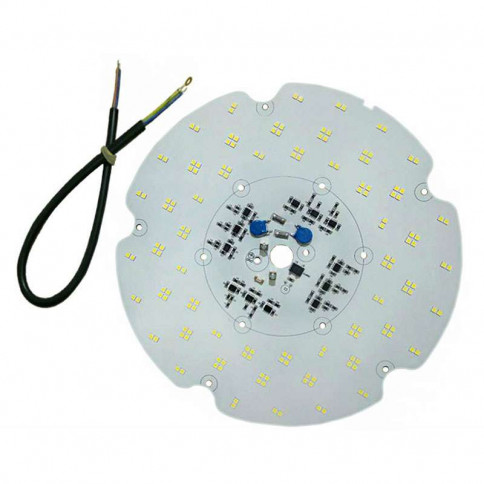

There's no need for a transformer or power supply, this 100-watt AC/LED plate operates directly on 230 volts alternating current thanks to its built-in transistorised power supply.
The installation of this LED board will require the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.
The 135 Epistar SMD 2835LEDs are arranged uniformly on this 220 mm diameter plate to distribute the light evenly.
It diffuses a high level of brightness, in excess of 13,000 lumens, with a light output equivalent to a 400 watt halogen bulb.
Product description :
Number of LEDs: 135 SMD 2835 Epistar LEDs
PCB diameter: 220 mm
Transistorised power supply (integrated on the PCB)
Power consumption: 100 watts
Cosine phi power factor: 1
Dimmability: no
Luminous efficacy: 130 Lumens per Watt
Equivalent to a 200-watt halogen lamp
Brightness: 13,000 Lumens white
Colour: white 6000 kelvin, light warm white 4000 kelvin, warm white 3000 kelvin
Colour rendering index: white > 80ra
Lighting angle: 180
Life: 50,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0, for the proposed lighting colours, i.e. it presents no photo-biological hazard.
