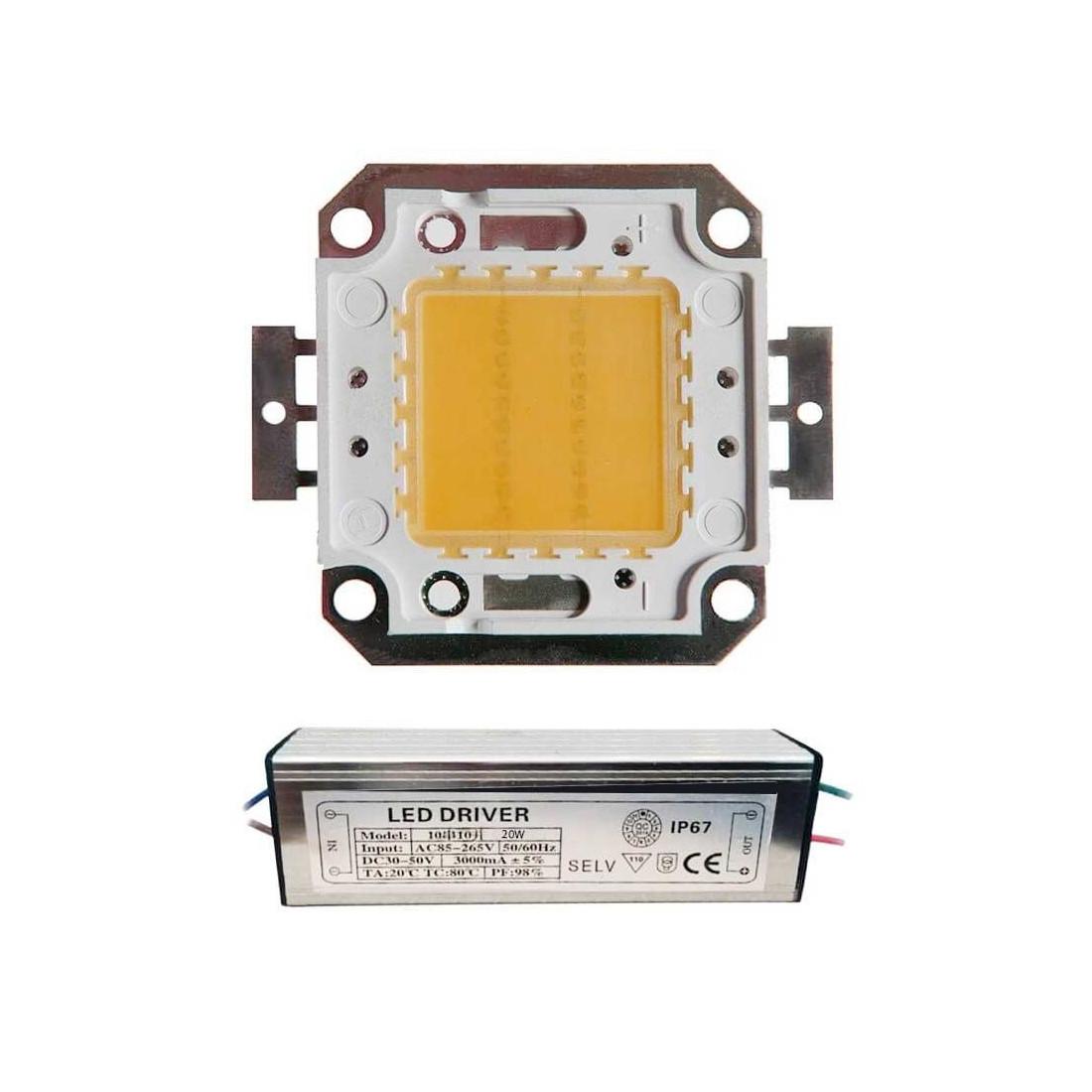

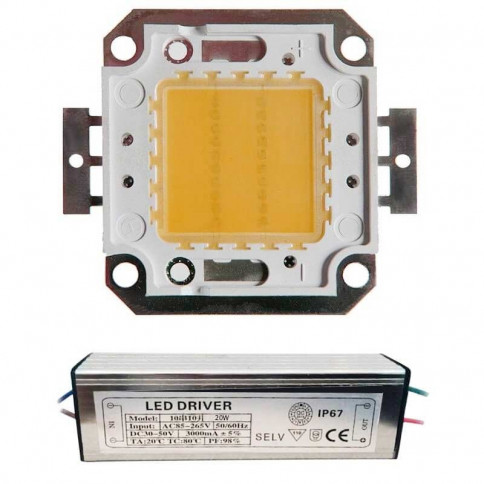

A 20 watt chip-on-board matrix LED with a luminous flux of 1986 Lumens.
Build or modify your own luminaires with this power supply and 20 watt COB LED package.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 20 watt Multi Chip On Board
Number of cores: 20 x 1 watt chips
Chip LED 45 Mil
Voltage: 230V mains supply
Amperage: 600 mA
Light output: 1986 Lumens
Outer dimension of PCB: 53 * 42mm
PCB thickness: 4.3 mm
Colour temperatures: white 6000K, warm white 3000 K
Diffusion angle: 150
LED weight: 25.6g
