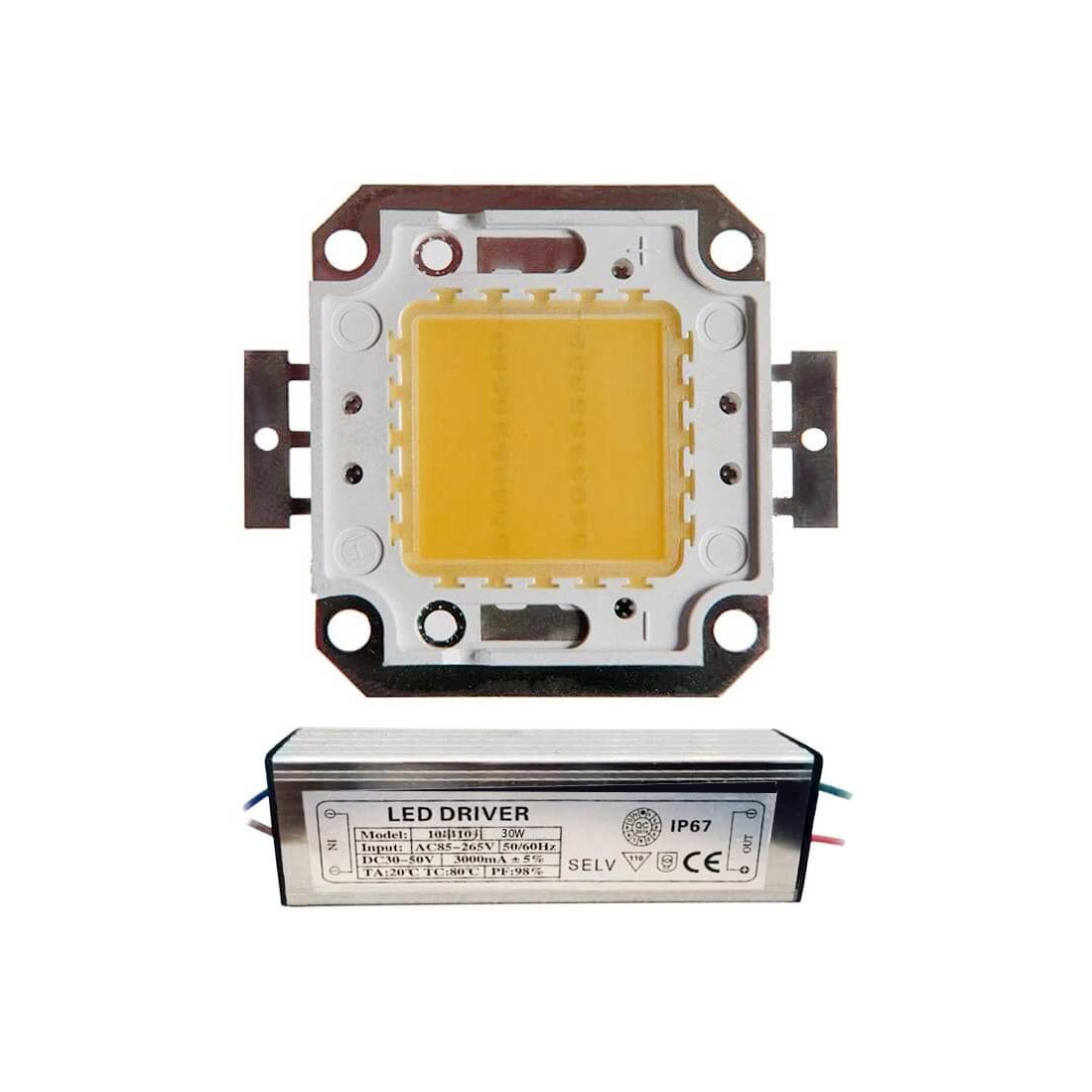

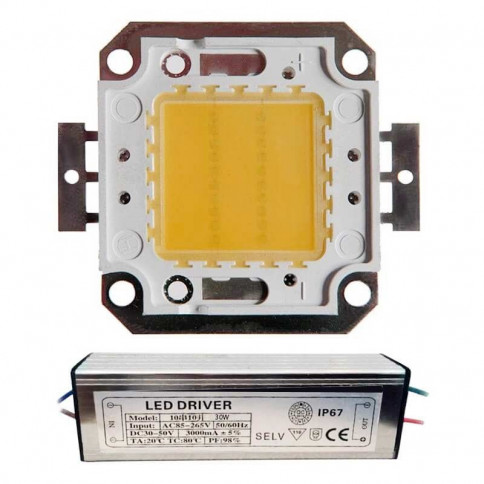

A 30 Watt chip-on-board matrix LED with a luminous flux of 2938 Lumens.
Build or modify your own luminaires with this power supply and 30 watt COB LED package.
A heat sink is required with a thermal paste connection to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 30 watt Multi Chip On Board
Number of cores: 30 chips of 1 watt each
45 Mil LED chip
Voltage: 230V mains supply
Amperage: 900 mA
Light output: 2940 Lumens
Outer dimension of PCB: 53 * 42mm
PCB thickness: 4.3 mm
Colour temperatures: white 6000K, warm white 3000 K
Diffusion angle: 150
LED weight: 25.6g
