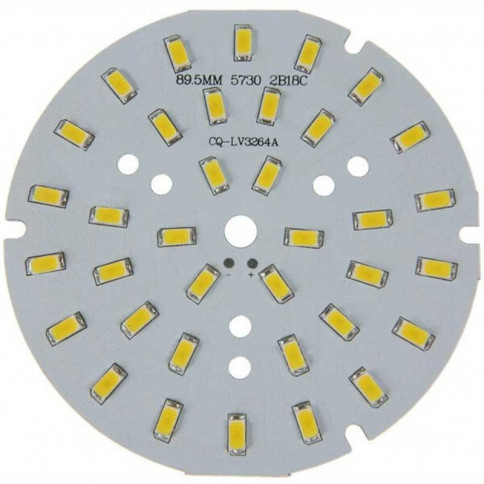

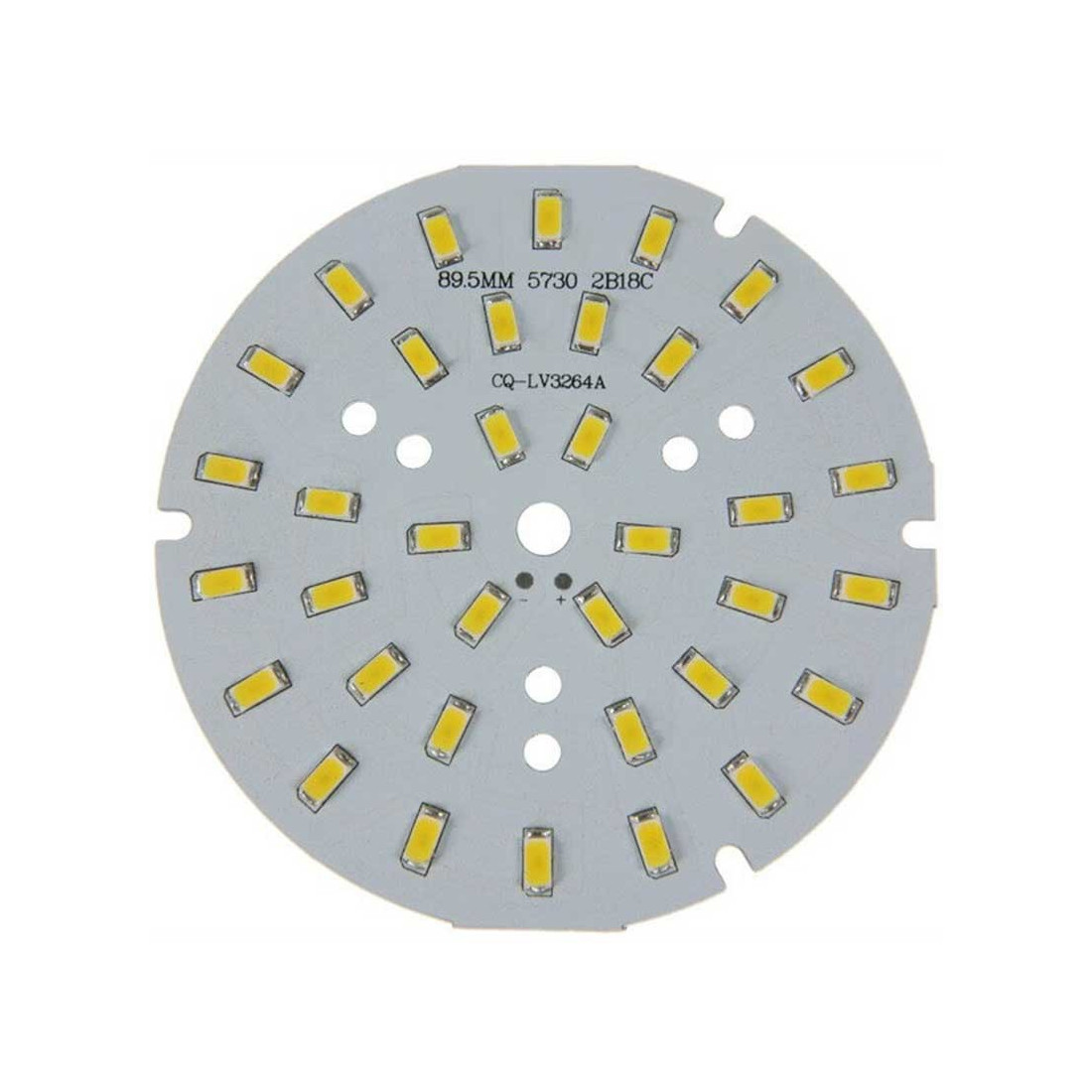

An 18-watt LED board equipped with 36 SMD 5730 LEDs, it delivers a luminous flux of 1764 Lumens.
Build or modify your own luminaires with this 18-watt SMD 5730 LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 36 x 0.5 watt SMD 5730 LEDs
Voltage: Specific supply 9.6 to 10.5 volts 260mA
Amperage: 260 mA
Light output: 1764 Lumens
Outer dimension of PCB: diameter 89.5 mm
Plate thickness: 2.2 mm
Colour temperatures: white 5800K, warm white 3300 K
Diffusion angle: 150°.
