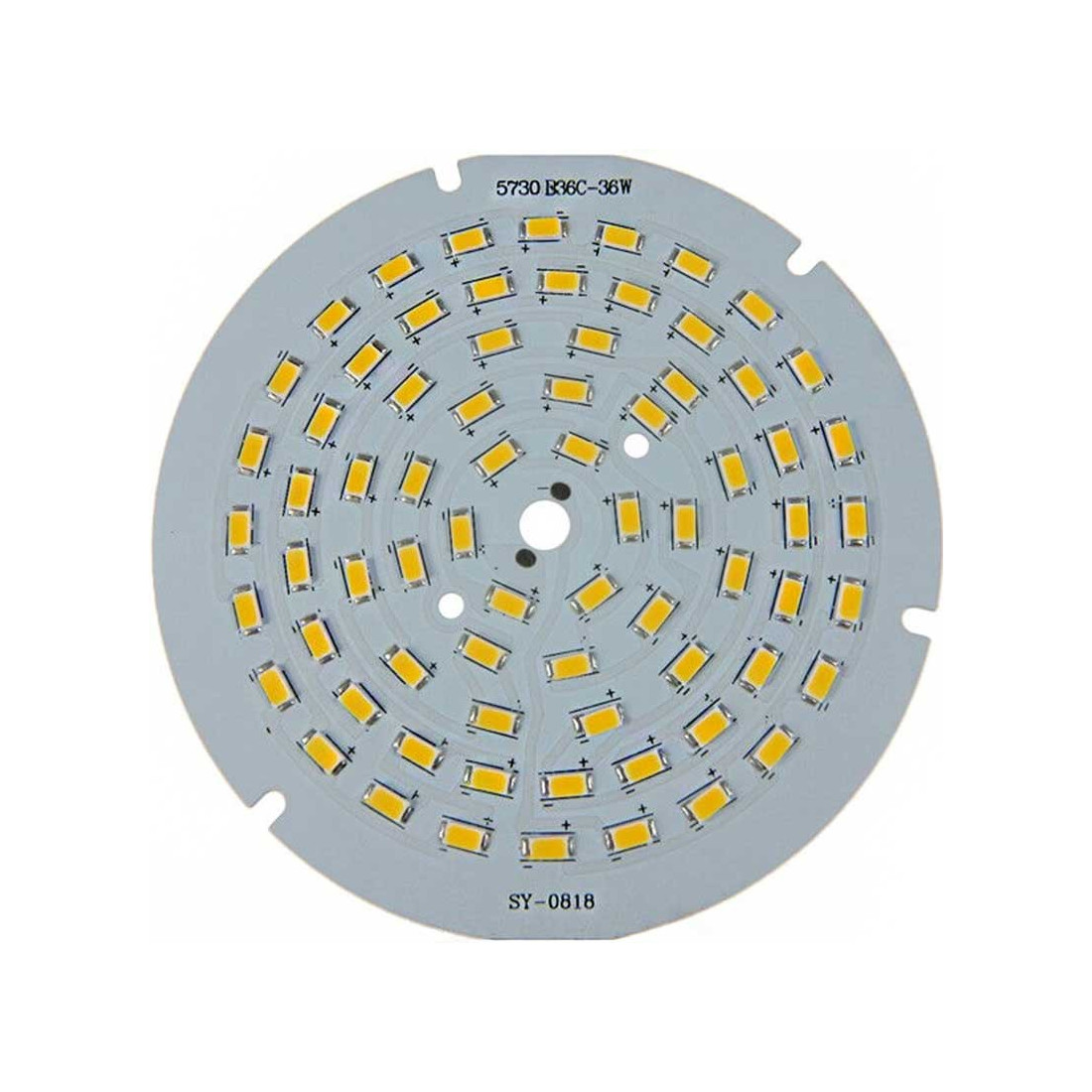

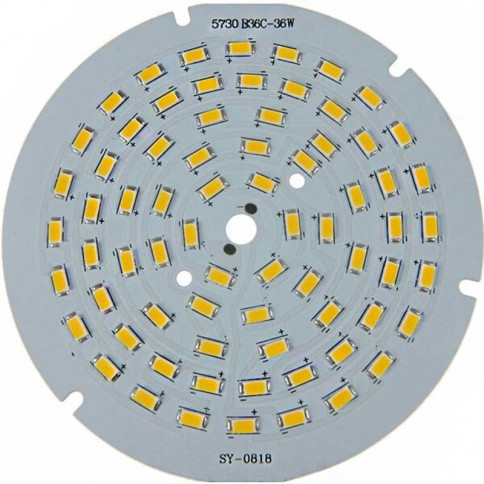

A 36-watt LED board equipped with 72 SMD 5730 LEDs, it delivers a luminous flux of 3058 Lumens.
Build or modify your own luminaires with this 36-watt SMD 5730 LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 72 SMD 5730 watt 0.5 watt LEDs
Voltage: Specific supply 9.6 to 10.5 volts 260mA
Amperage: 260 mA
Light output: 3058 Lumens
Outer dimension of PCB: diameter 112.8 mm
Plate thickness: 2.2 mm
Colour temperatures: white 5800K, warm white 3300 K
Diffusion angle: 150°.
