There's no need for a transformer or power supply, this 5-watt AC - LED plate operates directly on 230 volts AC thanks to its built-in transistorised power supply.
Installation of this LED board will require the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.

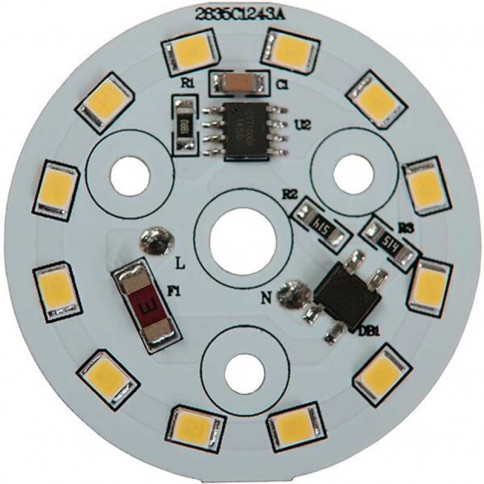

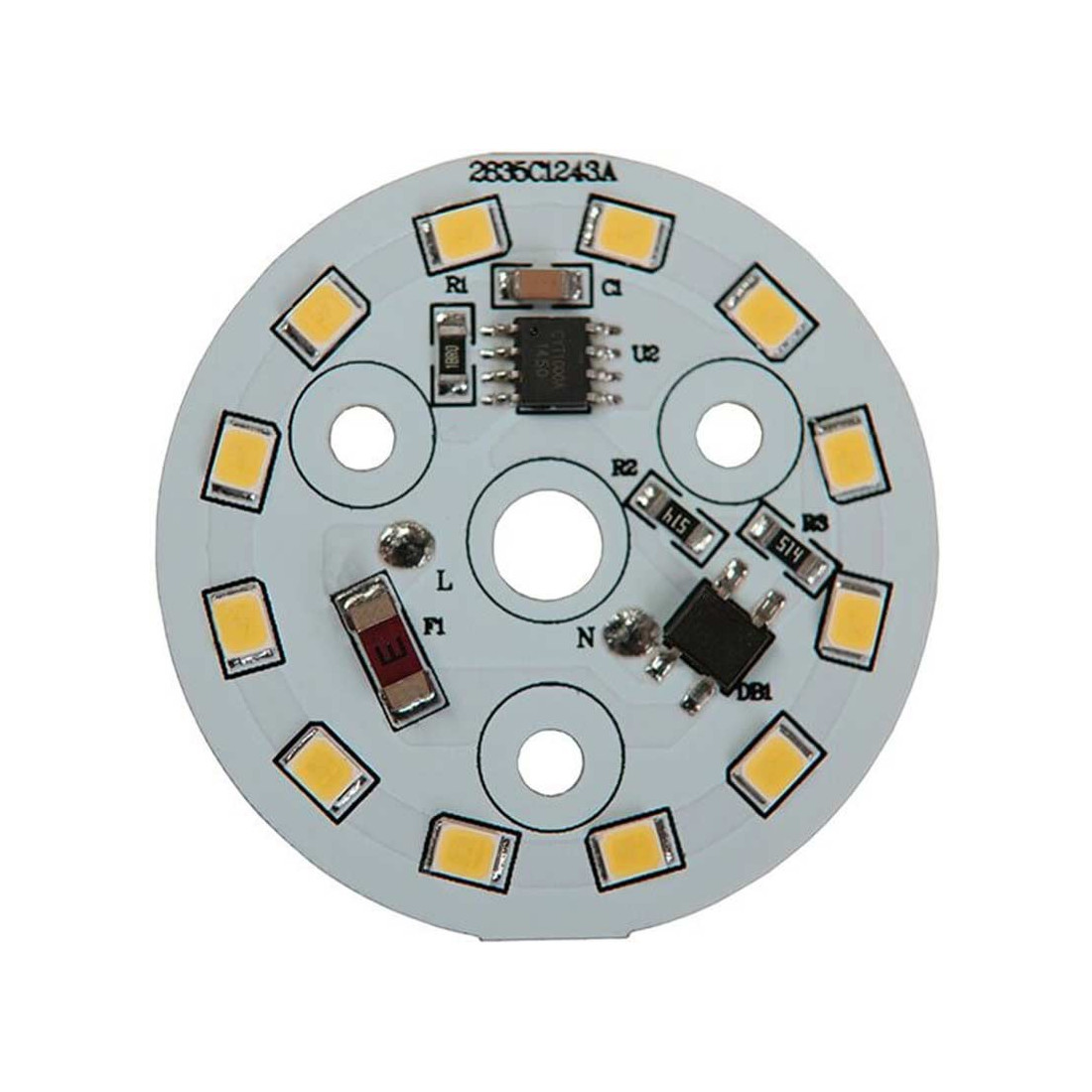

The 12 2835 SMD LEDs are arranged uniformly on this 30 mm diameter plate to distribute the light evenly.
With just 5 watts, it can be integrated into your old luminaires, saving you real money.
It diffuses a beautiful luminosity of over 432 lumens, with a light output equivalent to a 55-watt halogen bulb.
Product description :
Number of LEDs: 12 LED 2835
PCB diameter: 40 mm
Transistorised power supply (integrated on the circuit board)
Power consumption: 3 watts
Cosine phi power factor: 1
Dimming capability: no
Luminous efficacy: 85.02 Lumens per Watt
Equivalent to a 55-watt halogen lamp
Brightness: 432 Lumens white
Colour: white 6268 K warm white 2722 K
Colour rendering index: white 70.8 ra
Angle of illumination: 180
Life: 30,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0 for the proposed lighting colours, i.e. it presents no photo-biological hazard.
