There's no need for a transformer or power supply, this 80-watt AC/LED plate operates directly on 230 volts alternating current thanks to its built-in transistorised power supply.
Installation of this LED plate requires the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.

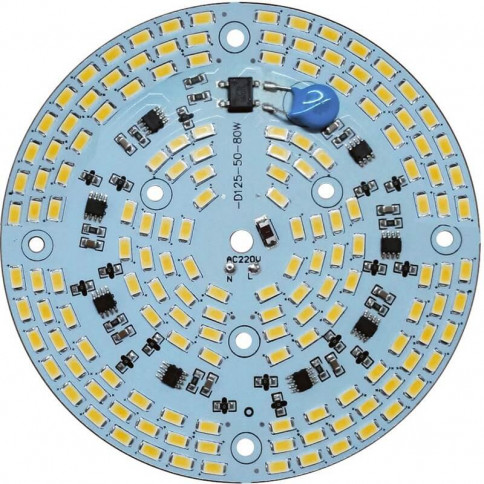

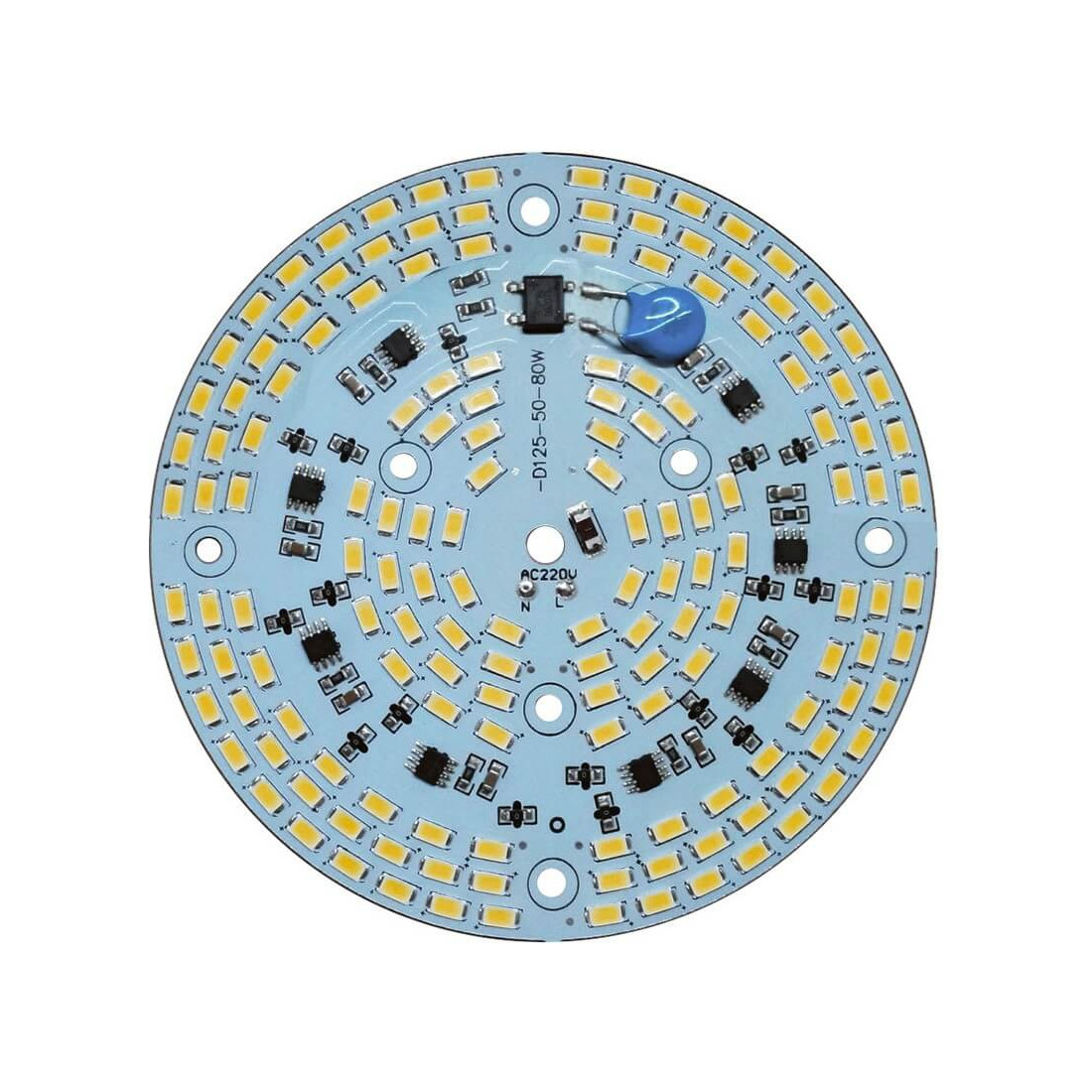

The 156 5730 SMD LEDs are arranged uniformly on this 124 mm diameter plate to distribute the light evenly.
With just 60 watts, it can be integrated into your old luminaires, saving you real money.
It diffuses an impressive 5100 lumens of light, with the same output as a 550-watt halogen bulb.
Product description :
Number of LEDs: 156 LEDs type SMD 5730
PCB diameter: 124 mm
Transistorised power supply (integrated on the circuit board)
Power consumption: 80 watts
Cosine phi power factor: 1
Dimmability: no
Luminous efficacy: 85 Lumens per watt
Equivalent to a 670-watt halogen lamp
Brightness: 6800 Lumens white
Colour: white 6268 K warm white 2722 K
Colour rendering index: white 70.8 ra
Angle of illumination: 180
Life: 30,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0 for the proposed lighting colours, i.e. it presents no photo-biological hazard.
