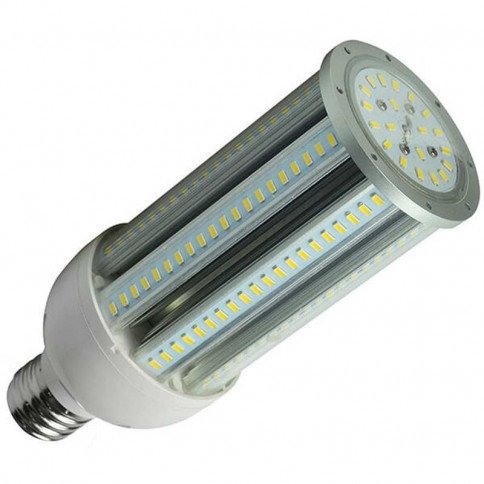

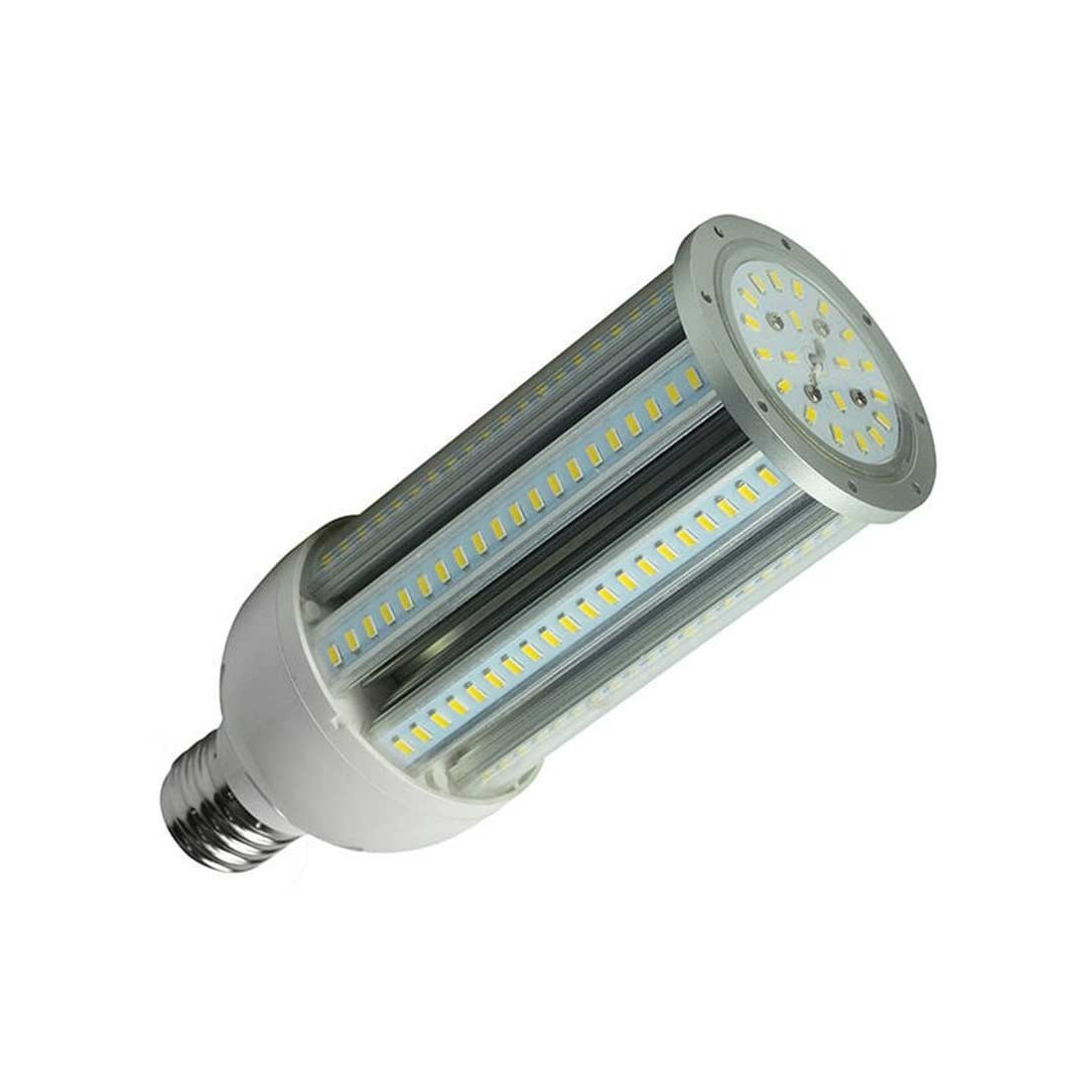

This 60-watt Altea-LED lamp will enable you to achieve energy savings of up to 35% compared with older-generation lamps (such as high-pressure sodium and mercury vapour lamps).
Withan estimated life of over 50,000 hours, thanks to its latest-generation components based on 5630 S3 series LED technology and electronic management with integrated IC Driver protection circuits from Rubycon, maintenance costs are significantly reduced.
High-quality manufacture: the 162 LEDs are attached to an AL6063 aluminium finned barrel using a heat-conducting paste, ensuring good heat dissipation and 360° light distribution.
This means that Altea-LED lamps can be installed in all luminaires used in public or industrial spaces.
Our Altea-LED lamps are available in a top-of-the-range version with Spectra Color LEDs offering a CRI greater than 80 Ra for the three lighting colours available, and delivering a light output greater than 125 lm per watt.
A complete range with a choice of fifteen lighting power levels available from 30 watts to 150 watts, built around three different LED bulb body diameters.
The IP64 tightness level of the Altea-LED lamp protects it against the intrusion of solid objects or splashing water, keeping it free from dirt caused by pollutants, dust and insects attracted by the luminous flux.
Optional on request:
-A customised lighting colour shade from 2700 to 6500 Kelvin.
Product description:
Number of LEDs: 162 LED SMD type 5630 second generation series 3
Bulb diameter: 90 mm
Power supply : 85 to 265 Volts AC （50/60Hz）
Power consumption : 60 watts
Cosine phi power factor: 0.90
Dimmable : no
Light output: 125 Lumen per watt
Brightness: 7540 Lumen
Colour: white 6000 K / light warm white 4535 K / warm white 3062 K
Colour rendering index: white 84.6 ra / cool warm white 83.7 ra / warm white 83.6 ra
Lighting angle: 360
Operating temperature : - 35° à + 55°
Life: 50,000 hours
Lamp base: E40
Protection rating: IP64
Dimensions: Ø 93 x 271mm with base
Weight: 650g
No UV or infrared radiation
2-year guarantee
Certification: UL/cUL, TüV Rheinland, GS
This bulb is certified to CE, Rosh and IEC 62471 standards (photo-biological risk safety).
It is classified as group 0 risk for the three lighting colours available, meaning that it presents no photo-biological hazard.
The values for luminous power, colour rendering and power consumption are calculated by us in France using appropriate equipment in our quality control laboratory. The information in the product sheets is not overestimated!
Our Altea-LED bulbs comply with European standards for public and workplace lighting.
The requirements of this NF EN 12464-1 standard concern the quality of lighting for work requiring good visual acuity, without eyestrain.
This circular highlights the fact that the colour rendering index (CRI) is satisfactory from a value of 80Ra, which is essential for all workstations requiring constant visual concentration.
