Brass cable clamp for electrical cable passage on lamp base - locks and prevents rotation of electrical cable with conical silicone, for cable diameters from 4 to 7 mm.
Our cable clamp is innovative: unlike conventional models, it does not use locking screws that could damage the electrical cable when pressed.
It is made from a conical silicone that exerts uniform pressure around the cable, ensuring effective locking against rotation and traction.

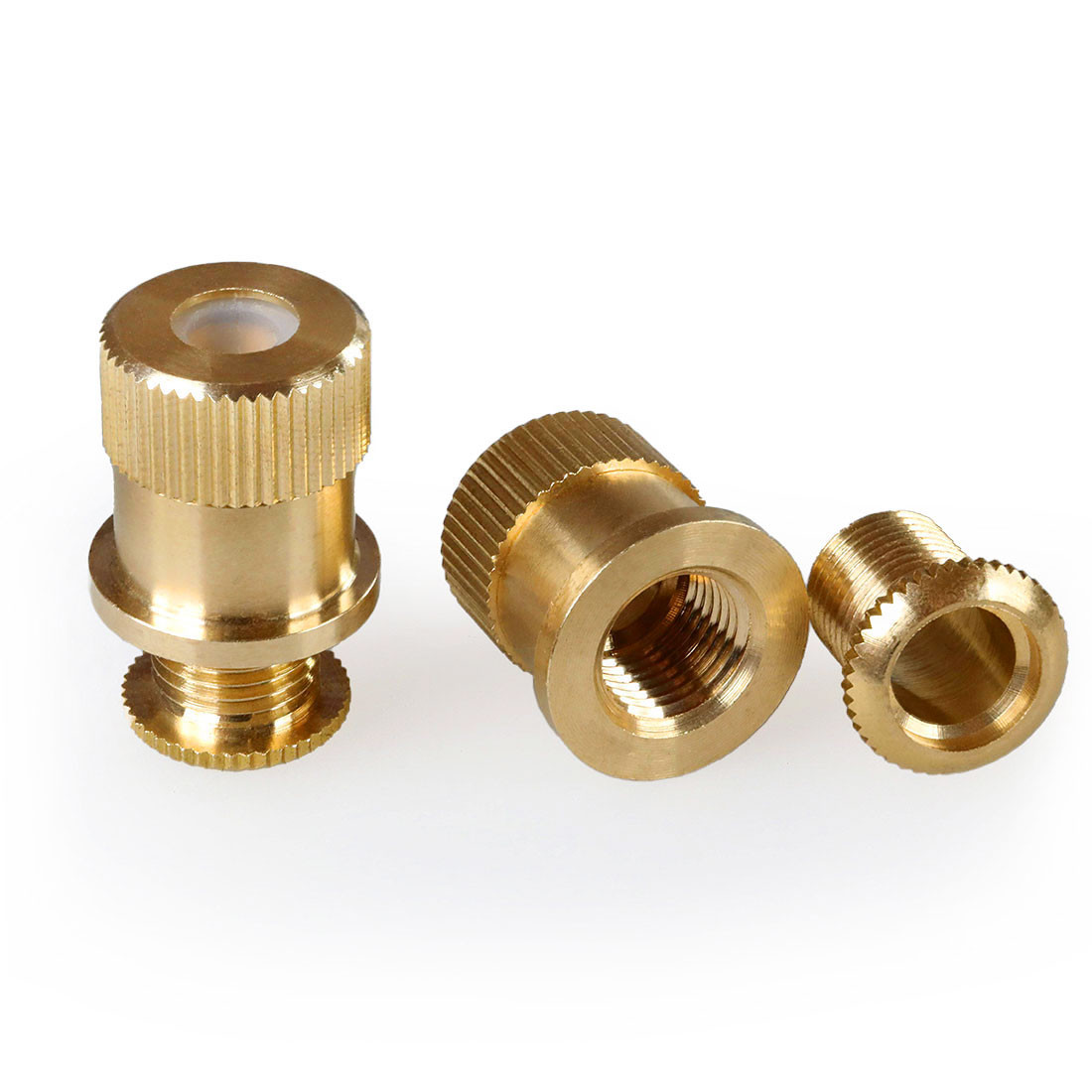

Comprising three brass components and a small silicone cone, the device is easy to install and the knurled brass front piece can be adjusted in length to suit the thickness of the lamp base.
If you need a longer version for thicker partitions, similar pieces are available in different sizes. These longer sleeves allow you to sandwich thicker lamp ceramics. You can find them at the bottom of the product sheet.
Product description :
Outside diameter of visible ring: 13.5mm
For cable diameters from 4mm to 7mm
Composition: brass
Thread: M10, 1mm pitch, 9mm deep
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electrical cable*.
Sold individually
