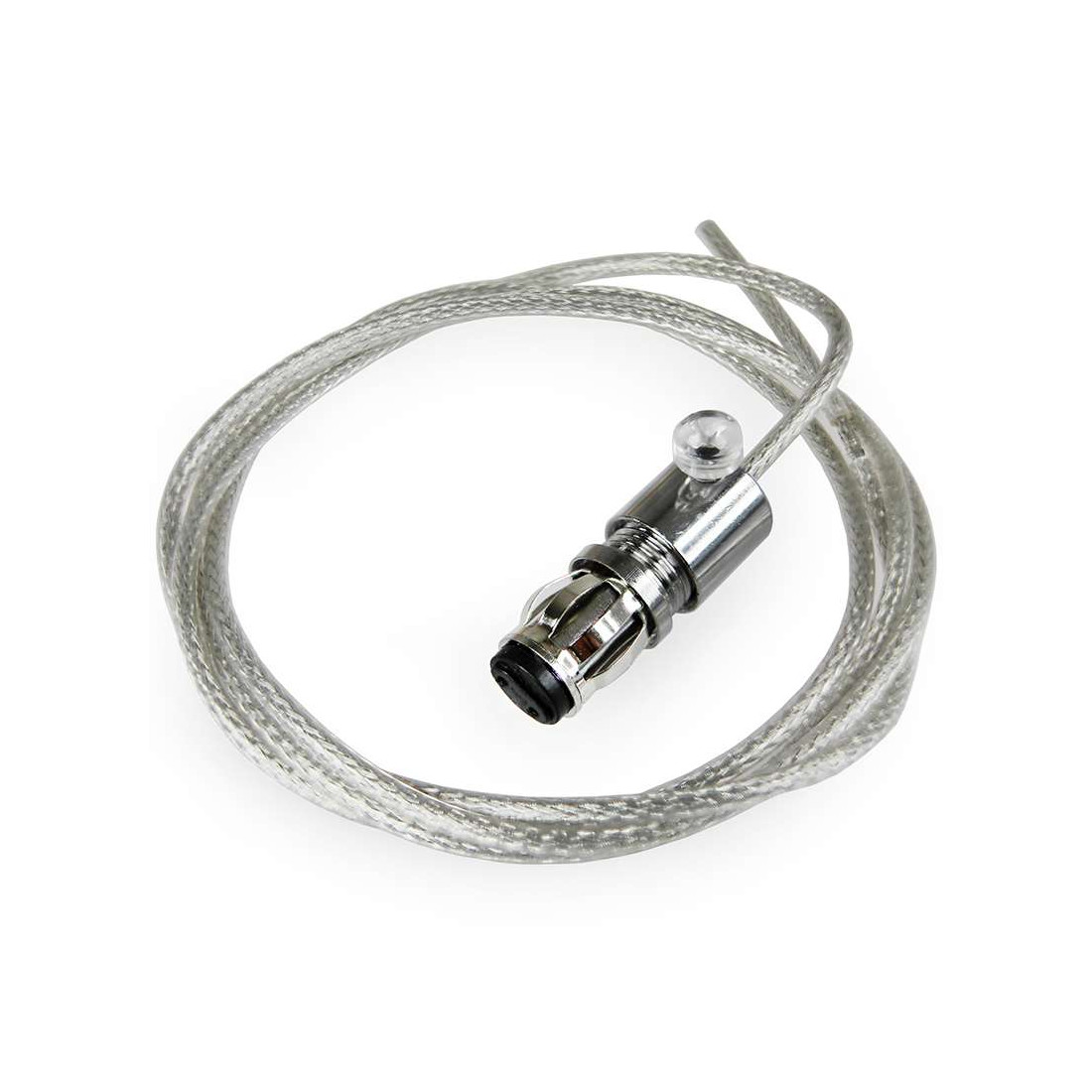

Male M10 threaded D11 socket for G4 lamp with retaining spring for luminaire mounted with a one-metre coaxial cable.
The pressure of the spring ring will hold a small piece of glassware, a light fitting or a lampshade, a small G4 lamp holder that will allow you to easily integrate it into your lighting designs.
Product description :
Male D11 socket for G4 lamp with 1 metre coaxial power cable
Hole diameter: from 9.6mm to 12mm
Maximum voltage: 250 volts
Maximum temperature: 190 °C
Power: maximum 30 Watts
Coaxial cable length: 1 metre
Supplied complete with G4 socket, cable and cable clamp
Sold individually without lamp and glassware
Our products are guaranteed for one year
precautions for use:
Switch off the power supply before carrying out any work on the installation.
Other cable lengths are available on request.
For optimum installation of our coaxial electrical cable, which includes a central electrical conductor and another visible one around the transparent sheath, refer to the photo below. Start by stripping the protective sheaths in a staggered pattern, about 8 mm for the central sheath and 4 to 5 cm for the outer sheath.
Next, carefully bundle the peripheral electrical conductor on one side and use a first heat-shrink sleeve to reconstitute an insulating sheath.
Finally, apply another heat-shrink sleeve at the splice location for final protection. This procedure will ensure safe and efficient installation of our coaxial electrical cable. Heat-shrink tubing is available as an accessory at the bottom of the product data sheet.
