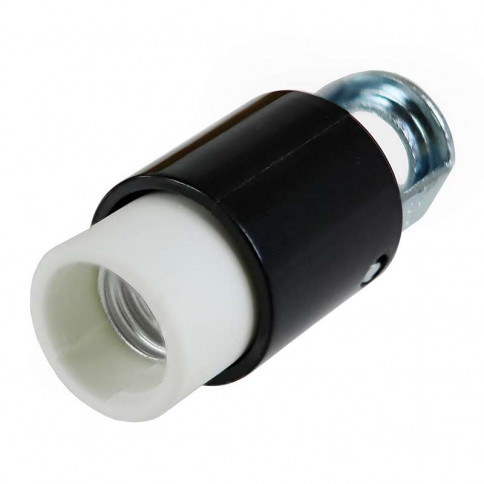

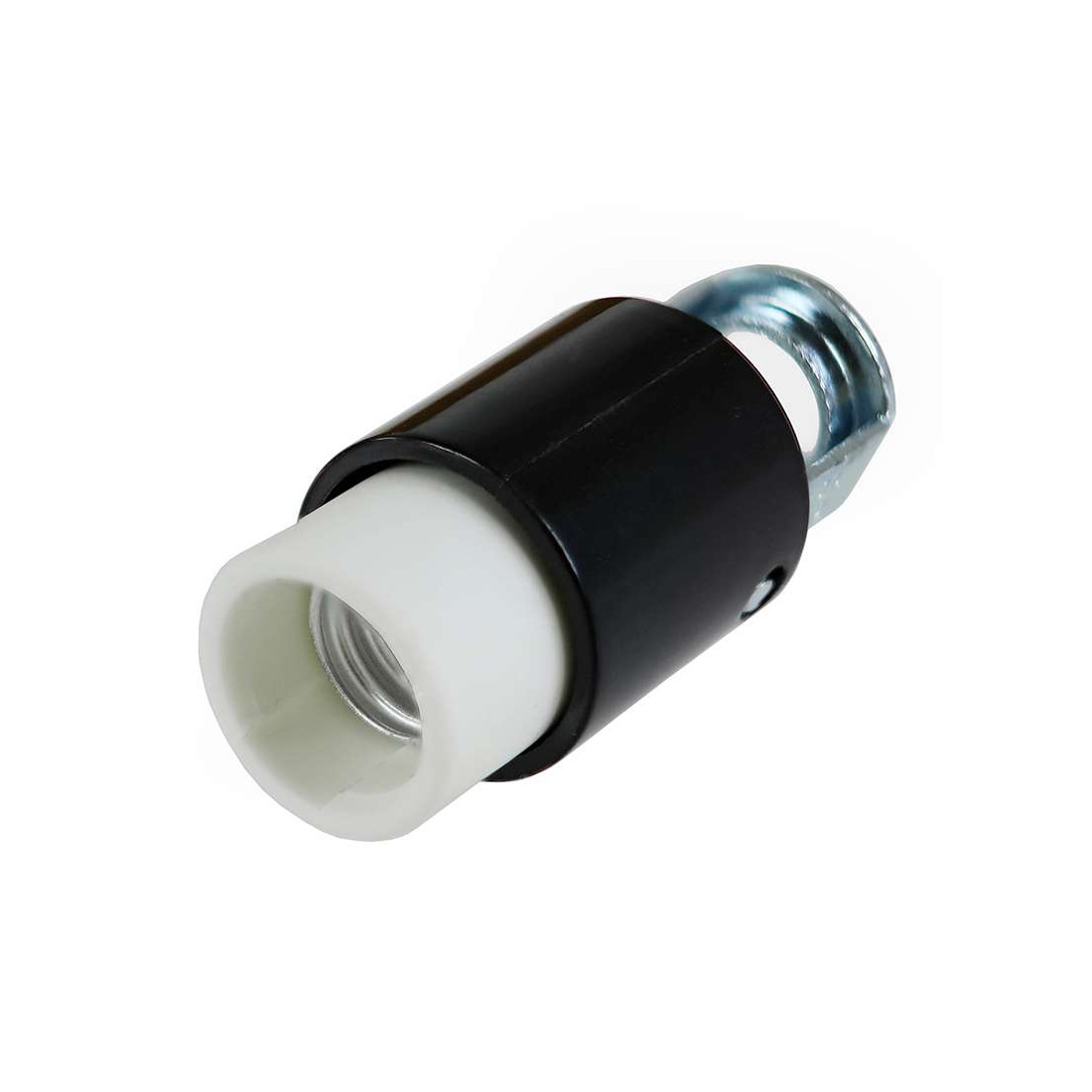

This E12 porcelain screw socket fits onto M10 hollow threaded rods and is particularly suitable for assembling old luminaires,
It is fitted with a protective lampholder cover that can be removed for an installation that already has protection, such as a dummy candle.
Made from porcelain for incandescent or low-energy lamps,
Features:
Socket for E12 base lamp with M10 thread support
Porcelain base with phase and neutral terminals
Material: porcelain and zinc-plated steel bridge
Dimensions: diameter of lampholder cover 21.6mm, diameter of porcelain lampholder 18mm, height with support 47mm
Thread diameter: M10, 1mm pitch
Maximum bulb wattage: 75 watts
Lampholder sold individually
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with phase and neutral wiring. Earthing is possible with a 10mm diameter round lug earthing cable placed under the jumper where it is fixed, some pre-wired earthing cables are available at the bottom of the product sheet.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only the phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
