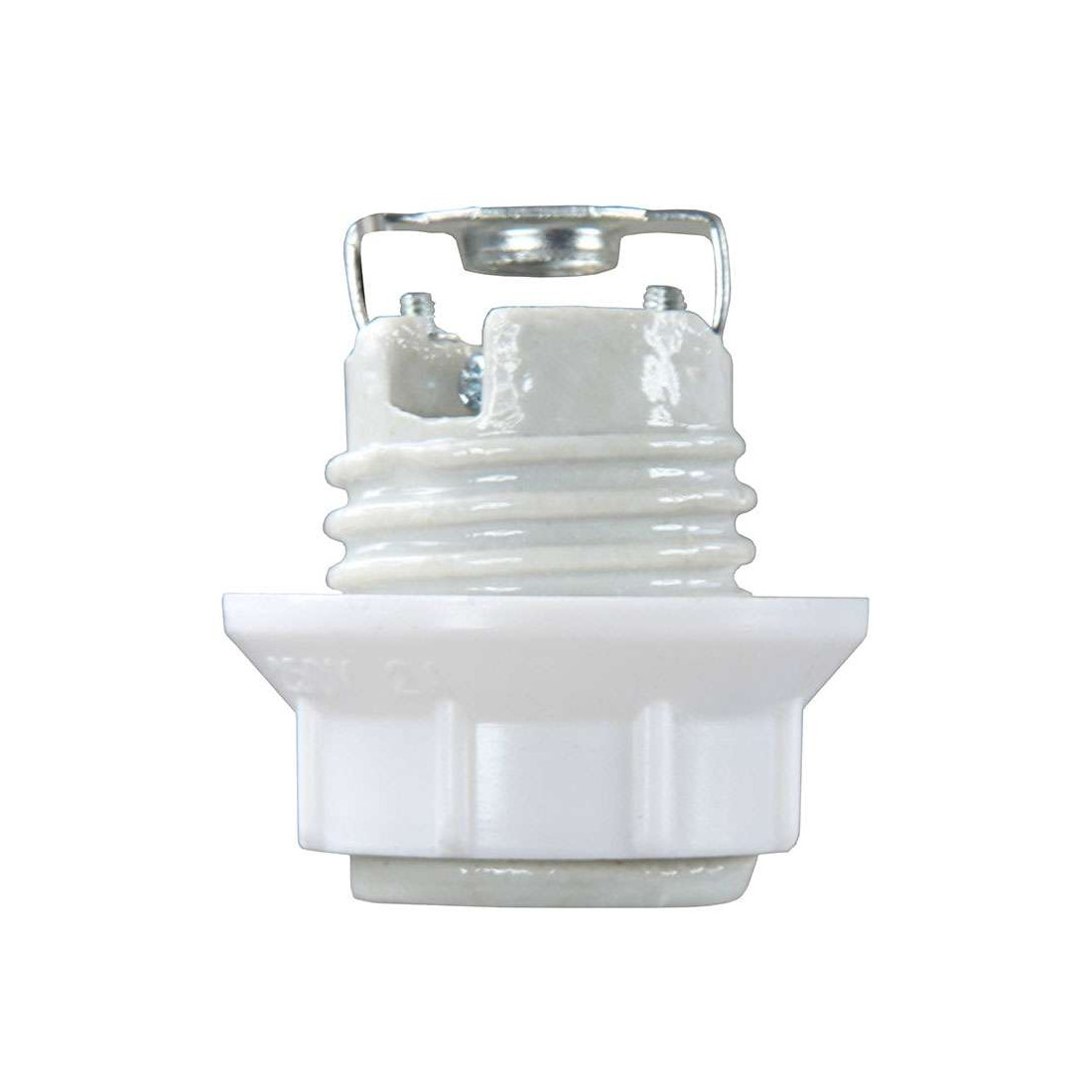

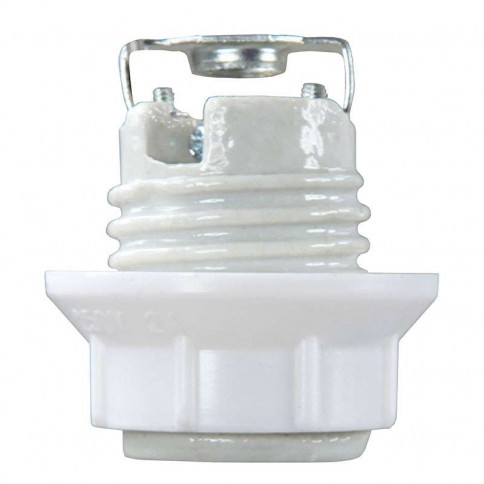

This E14 screw lampholder with its threaded ring fits onto M10 hollow rods and is particularly suitable for assembling luminaires fitted with E14 lampholders.
Made from porcelain for incandescent or low-energy lamps,
Features:
Socket for E14 base lamp with M10 thread support
Porcelain base with two-core terminal block, phase and neutral
Material: porcelain and plastic ring
Dimensions: diameter 29 mm, height with support 46 mm
Cables connected by screws on terminal block
Thread diameter: M10, 1mm pitch
Wattage: 2A - 250V
Maximum bulb power: 500 Watts
Lampholder sold individually
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with phase and neutral wiring. Earthing is possible with an earth cable on a 10 mm diameter round lug placed under the jumper where it is fixed or with a 4 mm screw using the small screw fixings on the jumper, some pre-wired earth cables are available at the bottom of the product sheet.
For obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
