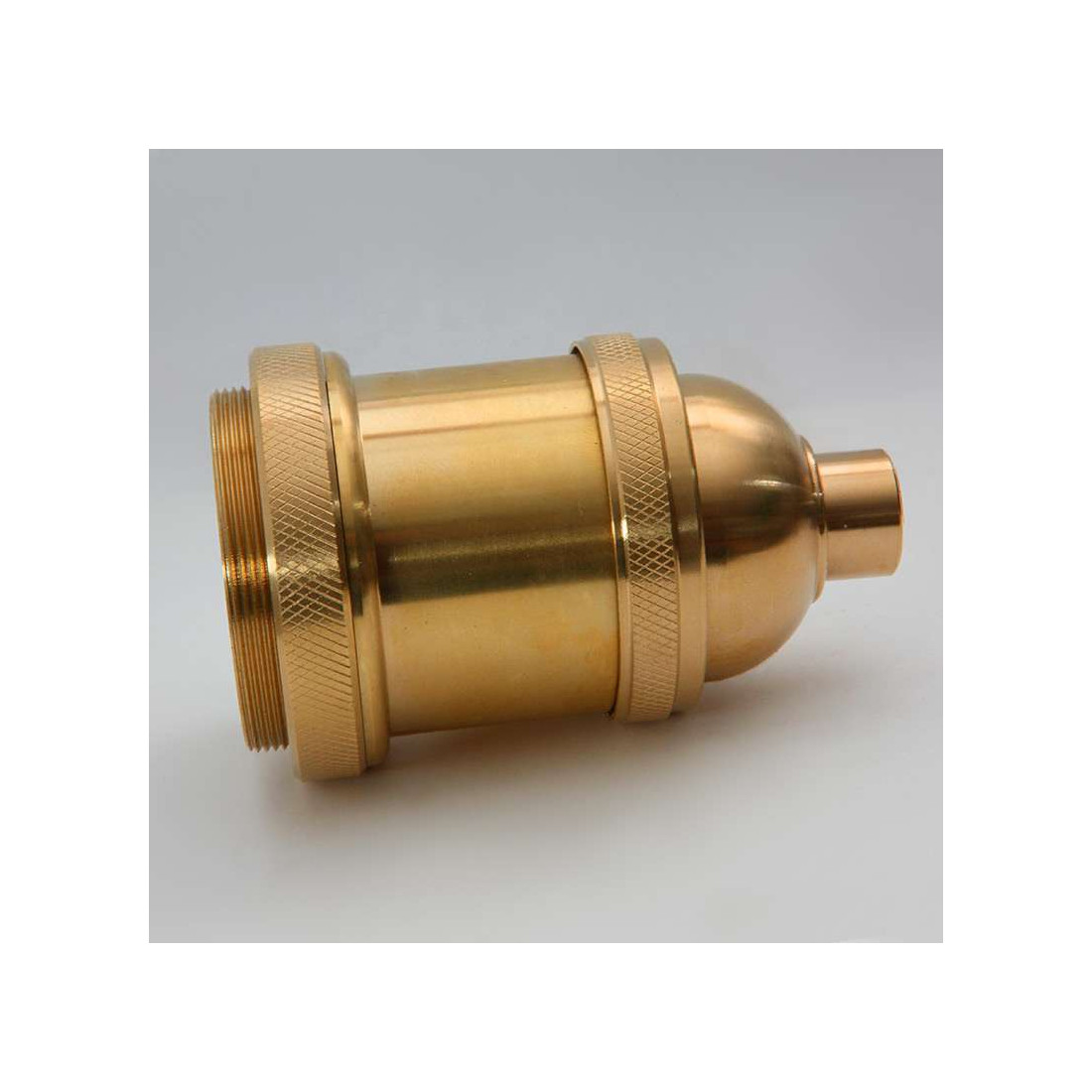

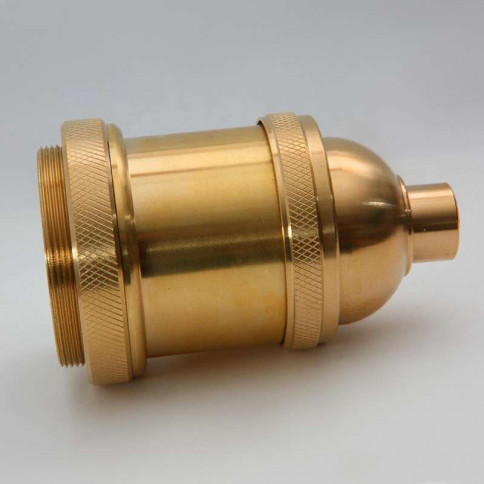

This hygie socket in solid brass with an E27 base is fitted with a simple stop ring and fits onto hollow threaded rods and M10 threaded cable ties.
Its natural brass finish makes it ideal for Edison-style incandescent or LED filament lamps.
Features:
Socket for E27 base lamps
Self-extinguishing polyamide base with phase and neutral terminals
Material: Natural brass
Shade diameter: 42mm
Dimensions: body diameter 50 mm height 76 mm without cable clamp
Cable connection by screws
Power rating: 2A - 250V
Maximum bulb power: 150 Watts
Weight: 250gr
Lampholder sold individually without cable and without cable clamp
Electrical safety information.
In terms of electrical connectivity, the internal plastic lampholder will be installed with phase and neutral wiring, so earthing is not necessary. However, if this lampholder is installed with a metal lampholder cover or other metal structure, earthing of these metal parts will be necessary.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
