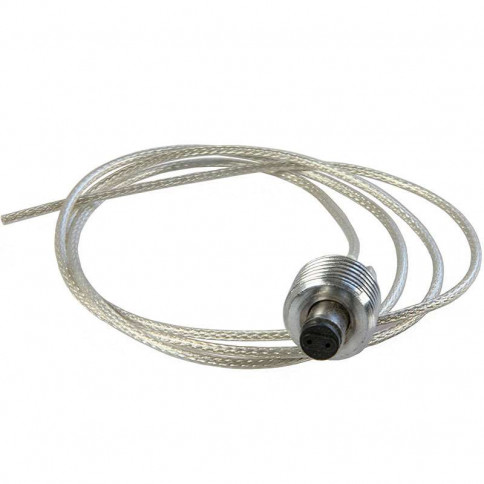

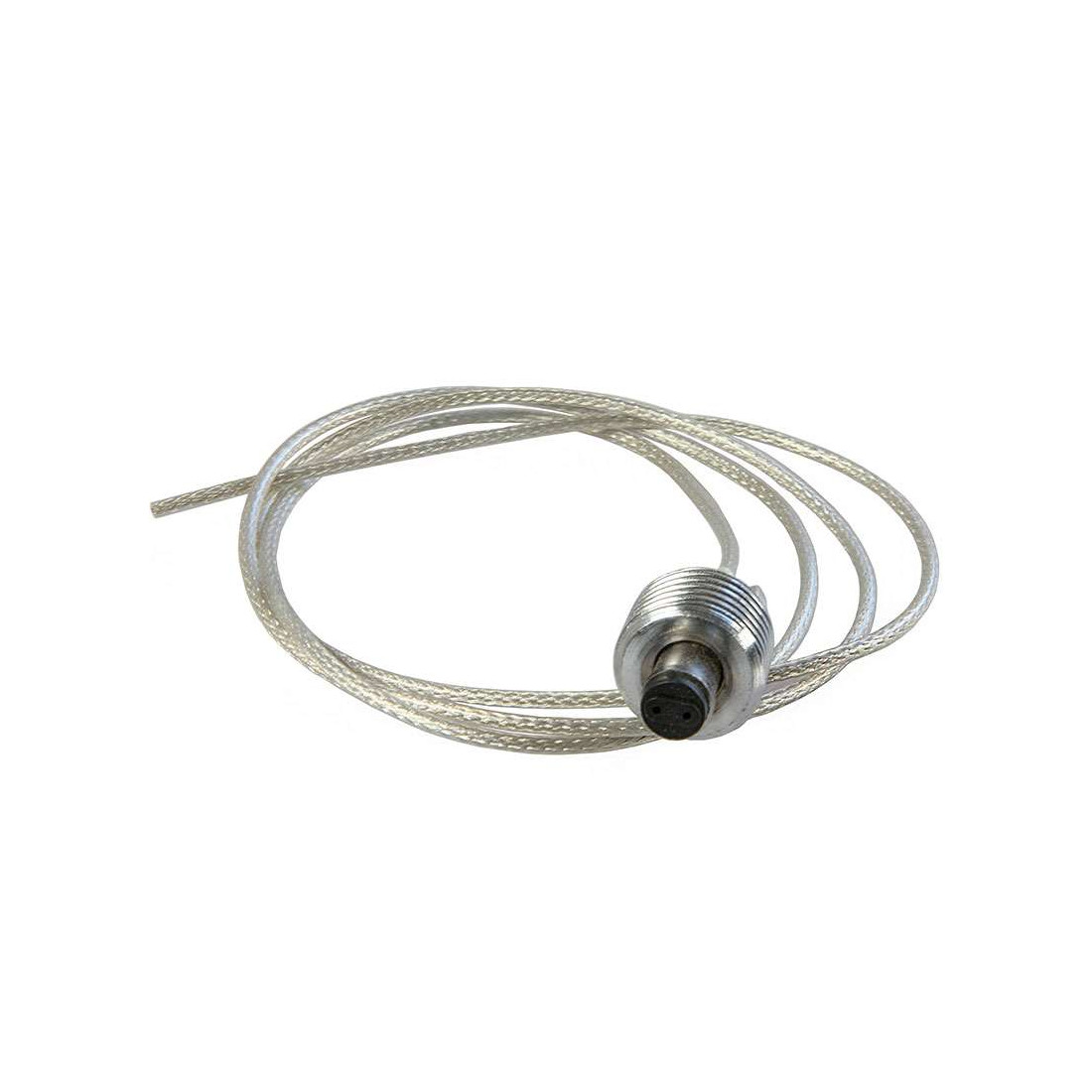

G4 lamp holder for creating luminaires mounted with a one-metre coaxial cable.
A small G4 lamp holder for easy integration into your luminaire creations.
Product description :
G4 lamp holder with one metre coaxial supply cable
Thread diameter: M20.8, 2 mm pitch
200° high-temperature cable
Silver-plated copper conductor finish on transparent Teflon sheath
Rated voltage: 3 volts / 500 volts
Conductor cross-section: 0.3mm².
External cable diameter: 2.2mm
Insulating material: transparent teflon
Maximum temperature: 190 °C
Power: maximum 30 Watts
Supplied complete with G4 socket, cable and cable clamp
Sold individually without nut rings
Our products are guaranteed for one year
precautions for use:
Switch off the power supply before carrying out any work on the installation.
Other cable lengths are available on request.
For optimum installation of our coaxial electrical cable, which includes a central electrical conductor and another visible one around the transparent sheath, refer to the photo below. Start by stripping the protective sheaths in a staggered pattern, about 8 mm for the central sheath and 4 to 5 cm for the outer sheath.
Next, carefully bundle the peripheral electrical conductor on one side and use a first heat-shrink sleeve to reconstitute an insulating sheath.
Finally, apply another heat-shrink sleeve at the splice location for final protection. This procedure will ensure safe and efficient installation of our coaxial electrical cable. Heat-shrink tubing is available as an accessory at the bottom of the product data sheet.
