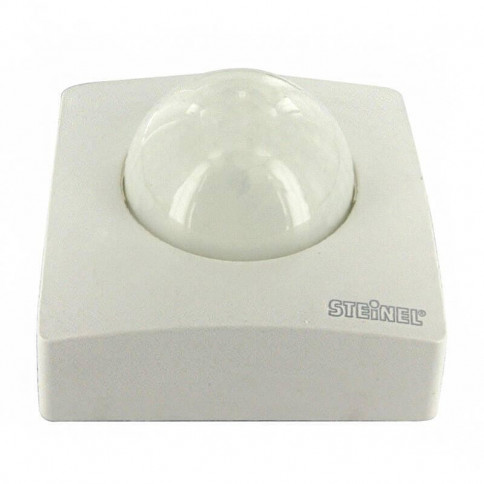

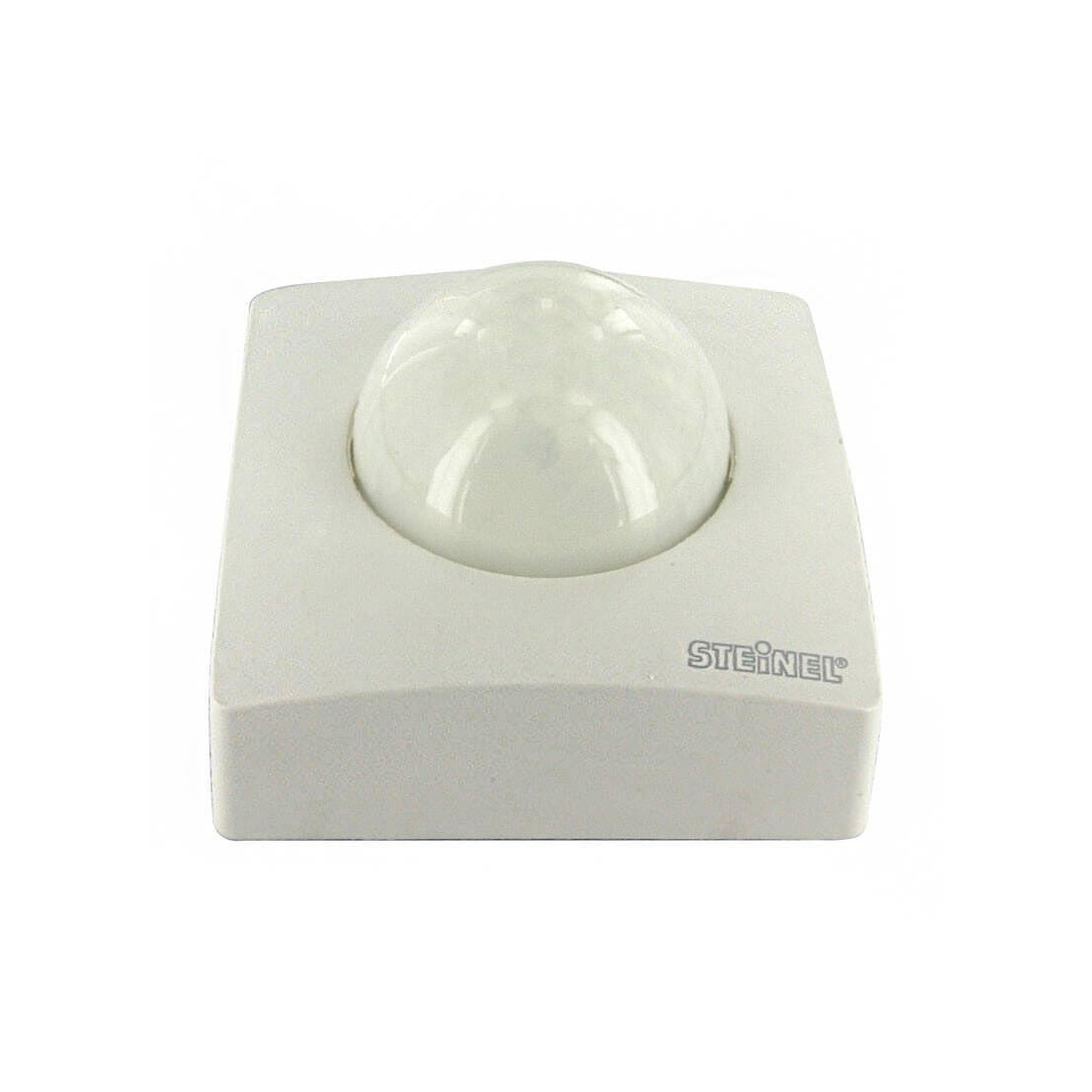

Control your light bulbs, panels and LED tubes with this special corridor detector.
Clearly designed connection space for quick and easy wiring.
Mounting height: 2.5 m.
Product description:
Dimensions: (H x W x D) 95 x 95 x 65 mm
External control output:
max. 2000 W (resistive load, e.g. incandescent lamp)
max. 1000 W (uncompensated, inductive, cos ? = 0.5),
max. 4 lamps, C <= 176 µF (ballasts, capacitive, e.g. energy-saving lamp)
Voltage: 230 - 240 V, 50 Hz
Angle of coverage: 180° with 45° aperture angle
Reach: max. 20 x 4 m (tangential), max. 12 x 4 m (radial) ;
Precision adjustment thanks to lens shift and plug-in covers
Twilight setting: 2 - 2000 lux + Teach mode
Timer setting: 5 s - 15 min.
Protection class: IP 54
Protection class: II
