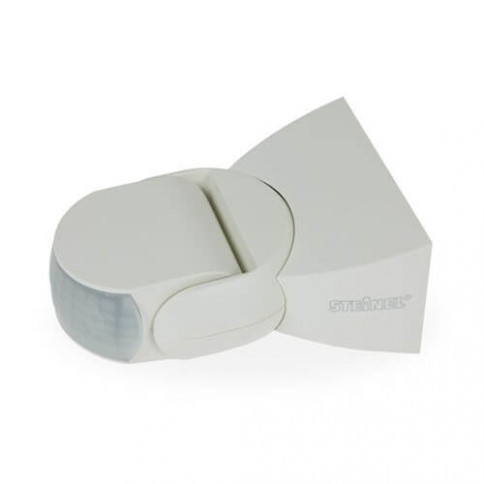

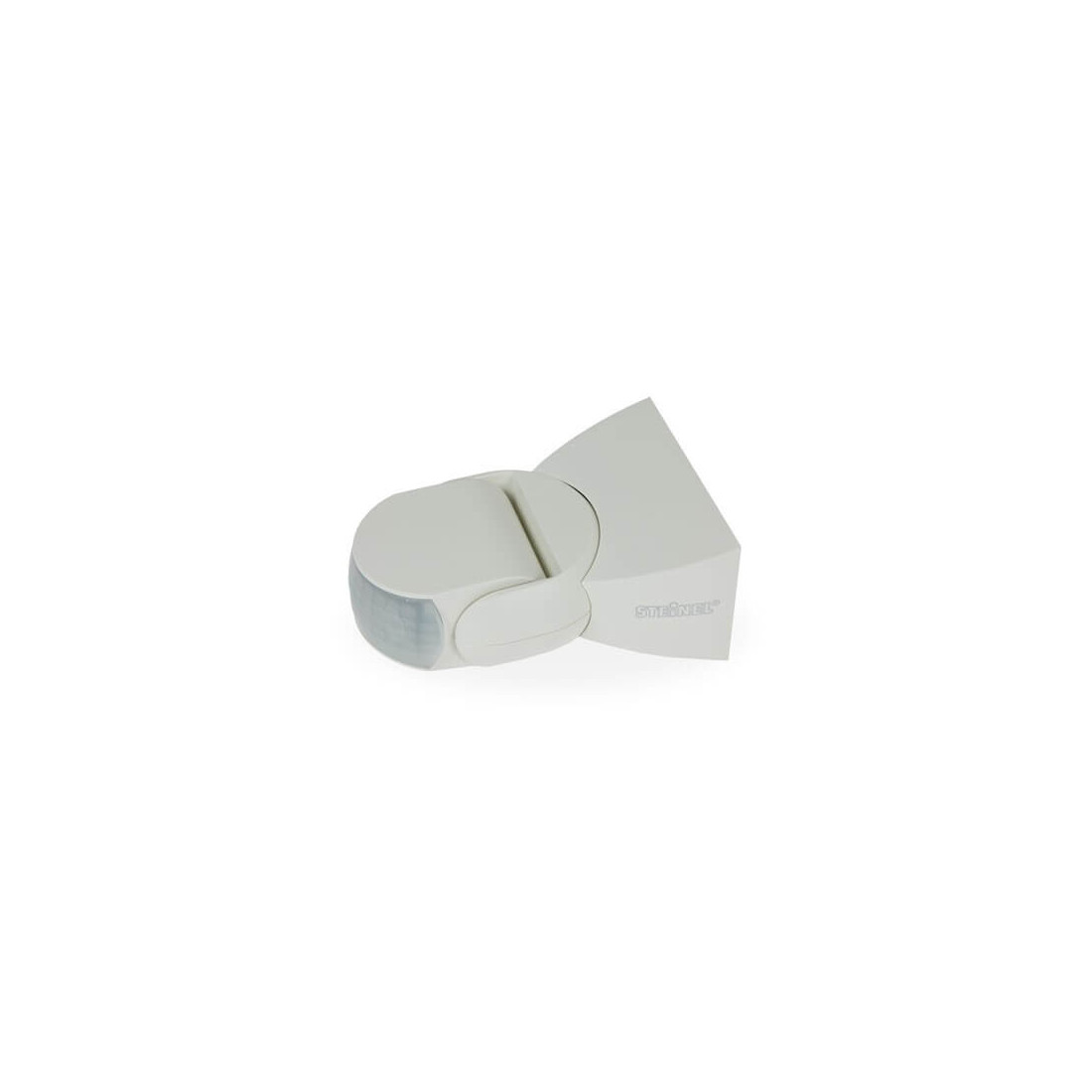

steinel infrared wall-mounted motion detector in white
Various settings:
Precise adjustment of detection zone to local conditions thanks to horizontally and vertically adjustable lens.
Simple adjustment of light 'ON' time and twilight threshold using a controller.
Installation benefits:
Clearly designed connection compartment for quick and easy wiring.
Can be mounted on wall or ceiling.
Can be rotated in 2 axes.
Product description:
Dimensions: (H x W x D) 50 x 80 x 120 mm
External controlled power:
max. 500 W (resistive load, e.g. incandescent lamp)
max. 500 W (uncompensated, inductive, cos ? = 0.5),
ballasts, capacitive, e.g. energy-saving lamp, max. 4 lamps, C = 88 µF
Voltage: 230 - 240 V, 50 Hz
Angle of coverage: 120
Reach: max. 10 m
Twilight setting: 2 - 2000 lux
Time delay: 8 s - 35 min.
Protection rating: IP 54
Protection class: II
