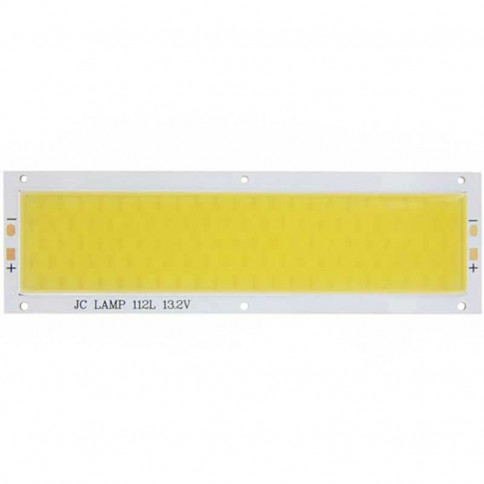

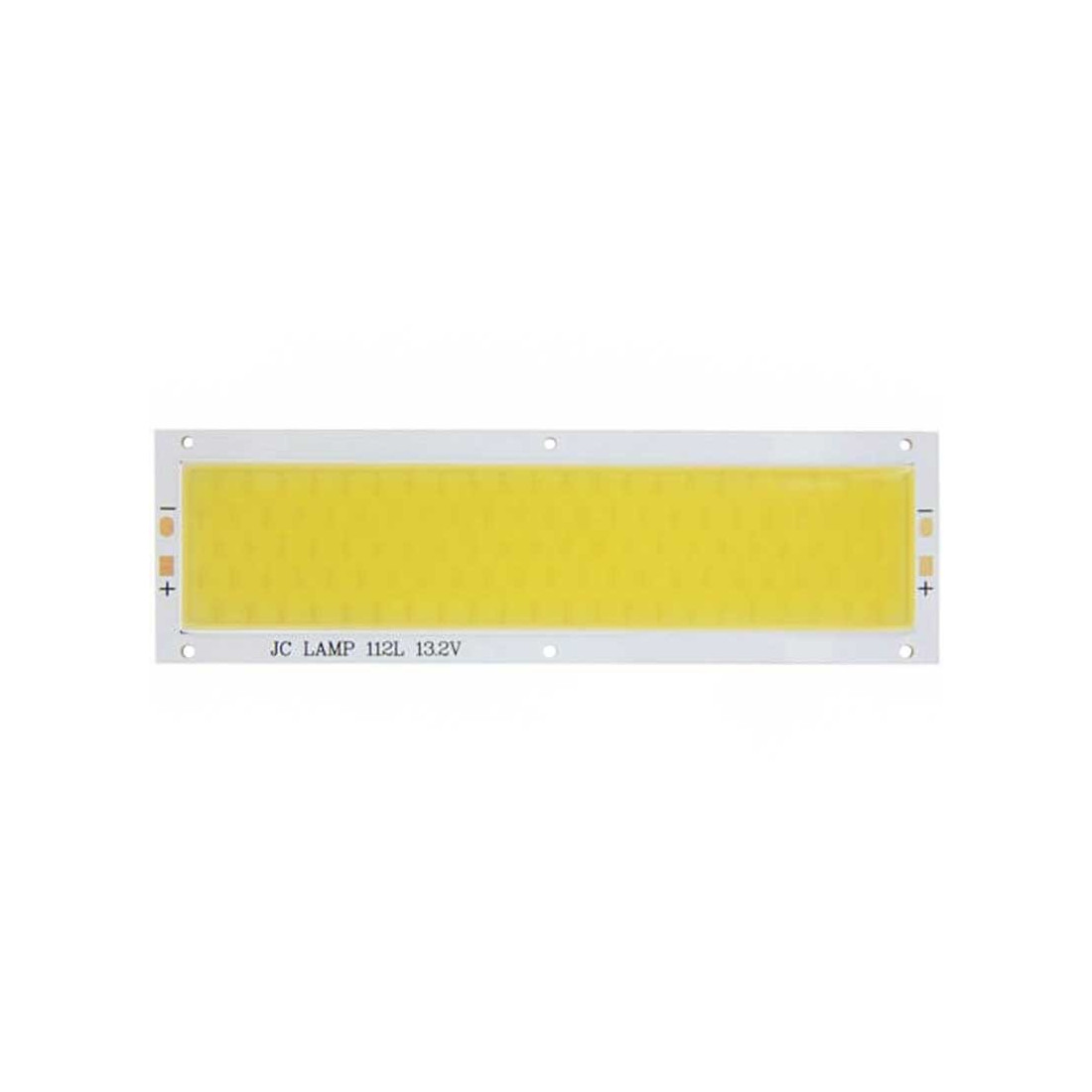

Build or modify your own luminaires with this 7-watt COB LED.
A heat sink will be required with a thermal paste bond to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 7 watt Multi Chip On Board
Number of cores: 112 chips of 0.06 watts
Voltage: Specific supply 9.6 to 10.5 volts 260mA
Amperage: 260 mA
Light output: 644 Lm
LED chip dimensions: L 112 mm x W 26 mm
Overall module dimensions: L 120 mm x W 36 mm x D 2.7 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150
Dimming: not compatible
Power consumption: 7 watts
