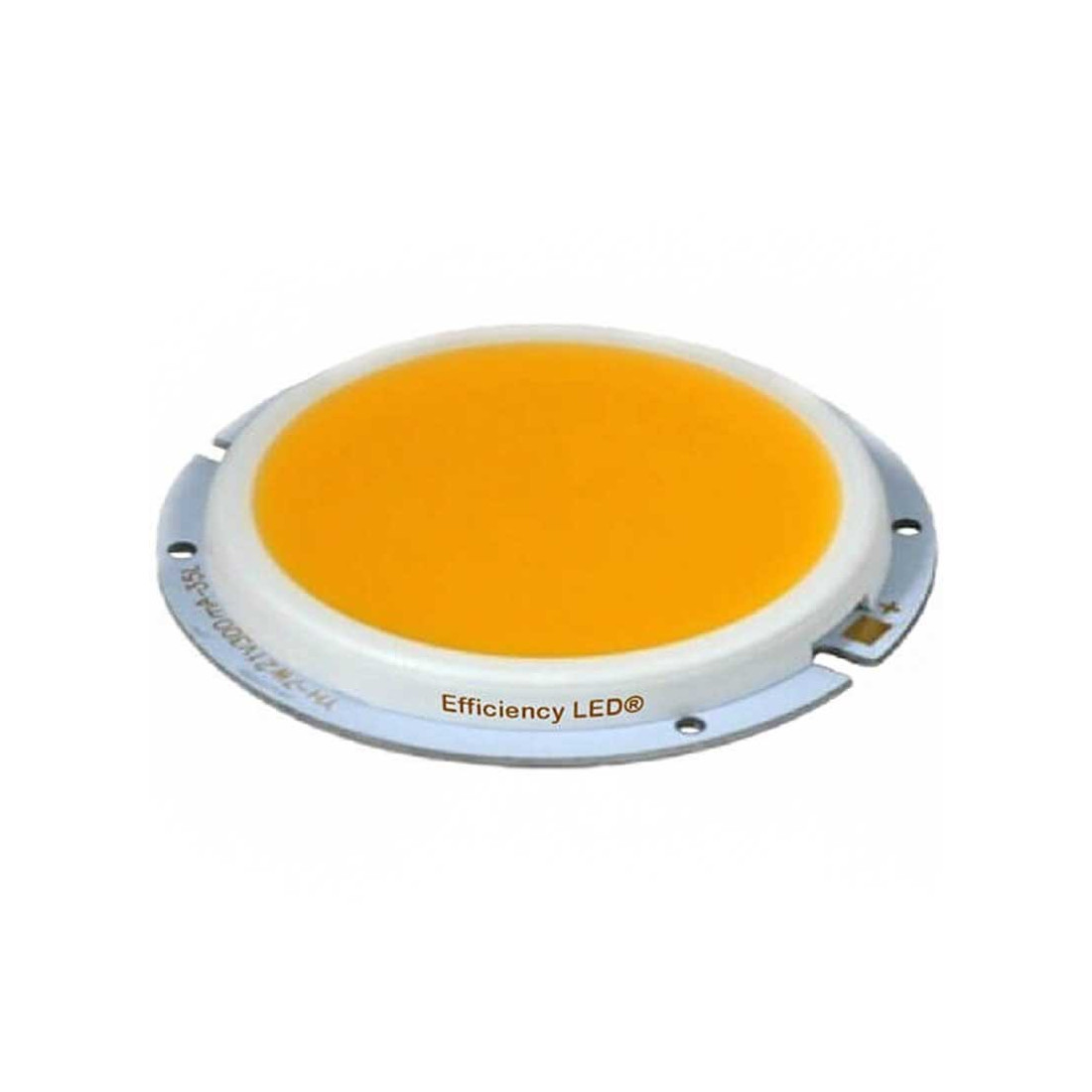

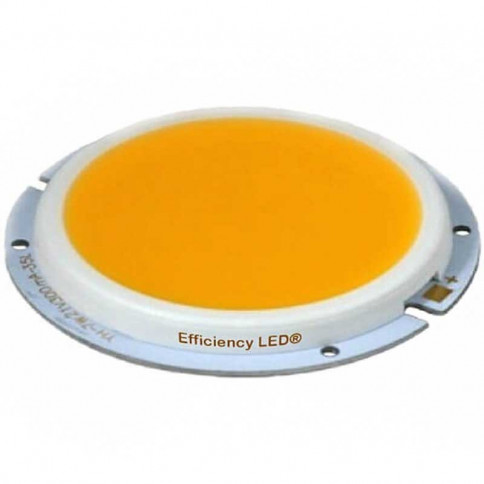

A 5 Watt Multi Chip on board LED with a 31 mm diameter surface emitting LED source, it diffuses a luminous flux of 426 Lm.
Build or modify your own luminaires with this 5 watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 5 watt Multi Chip On Board
Number of cores: 25 0.2-watt chips
Voltage: Specific supply 9.6 to 10.5 volts 260mA
Amperage: 260 mA
Light output: 426 Lm
LED chip diameter: 31 mm
Outer dimension of PCB: Ø 42.8 mm
PCB thickness: 5.6 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150
