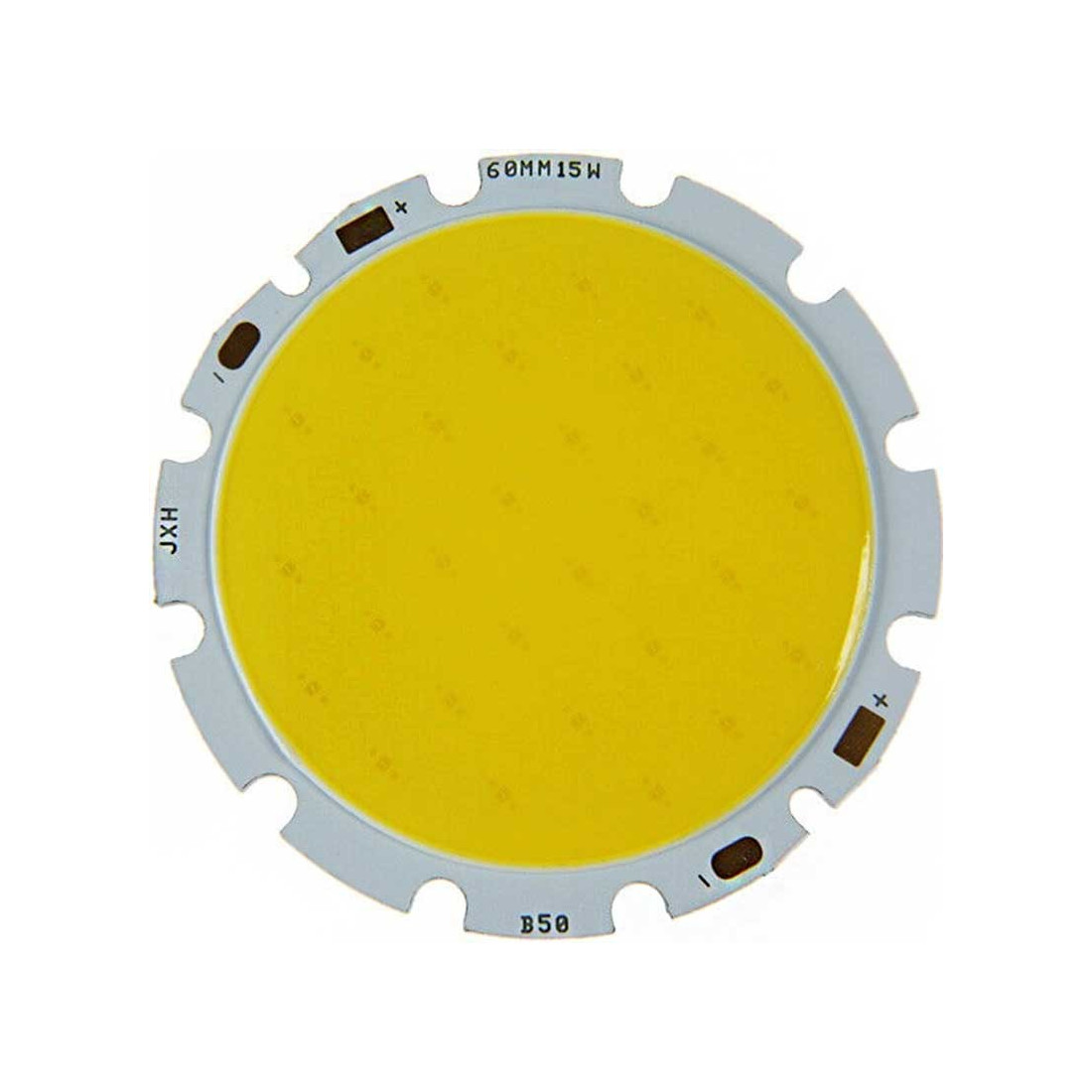

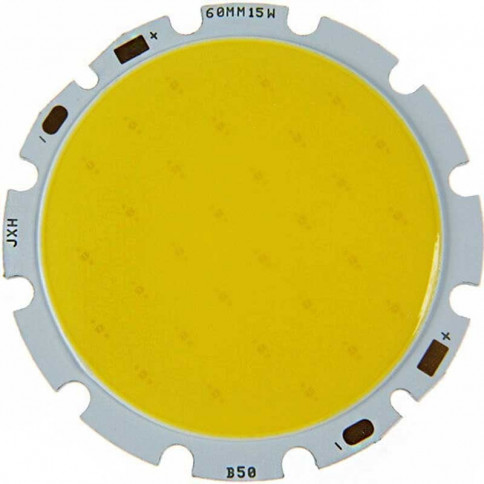

A 15 Watt Multi Chip on board LED with a 51 mm diameter surface emitting LED source, it diffuses a luminous flux of 1350 Lm.
Build or modify your own luminaires with this 15-watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 15 watt Multi Chip On Board
Number of cores: 30 0.5-watt chips
Voltage: Specific power supply 48 to 51 volts 260mA
Amperage: 260 mA
Light output: 1500 Lm white, 1350 Lm warm white
LED chip diameter: 51 mm
Outer dimension of PCB: Ø 60 mm
PCB thickness: 2.3 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150°.
