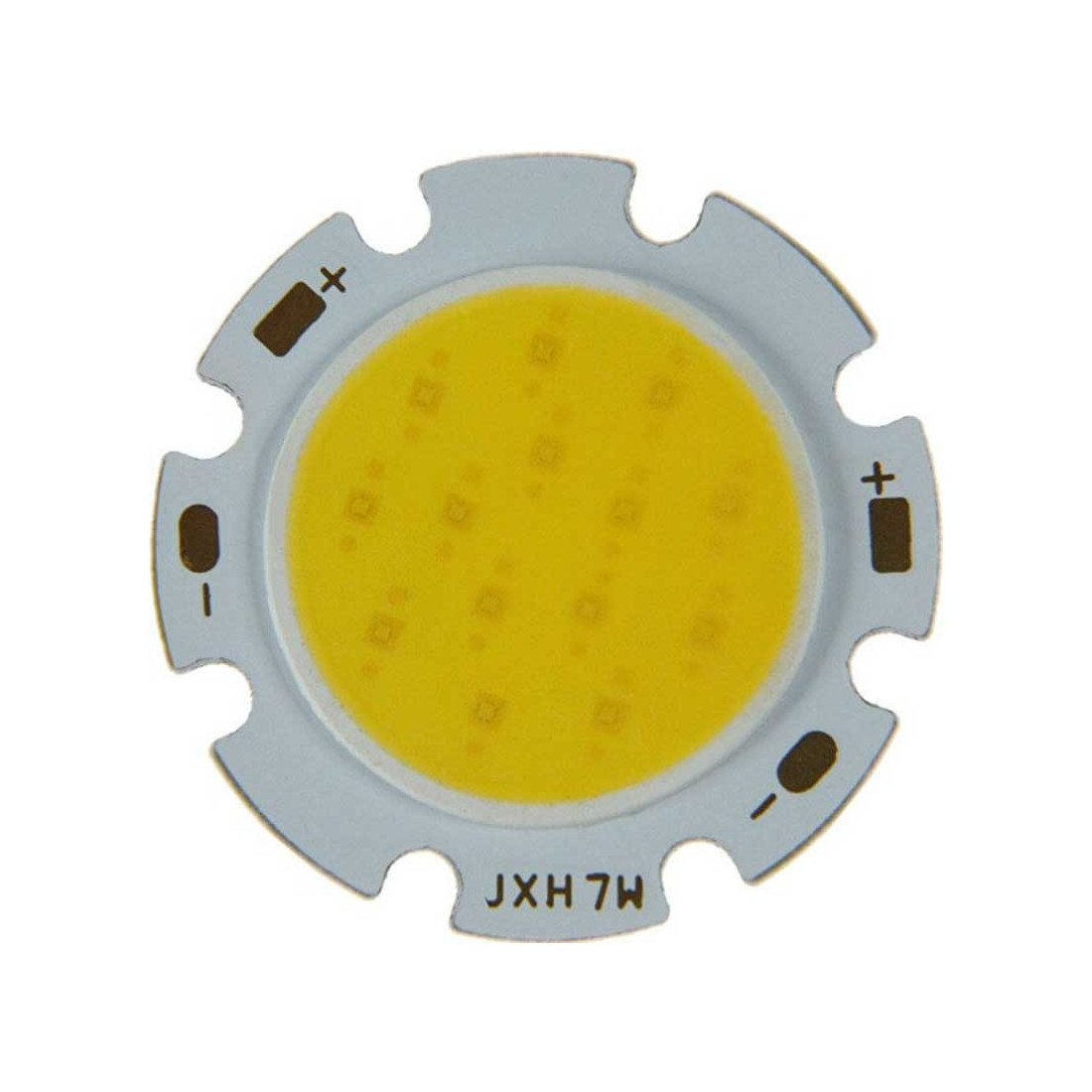

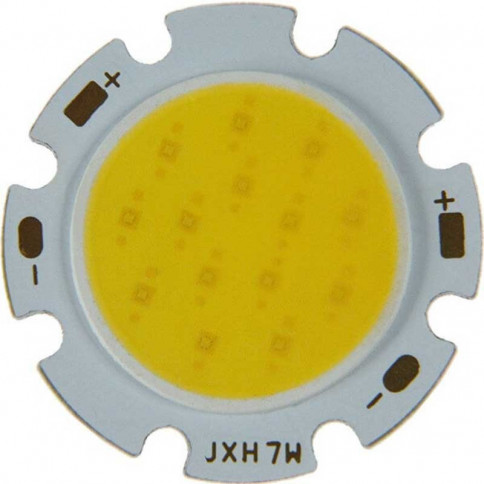

A 7 Watt Multi Chip on board LED with a 20 mm diameter surface emitting LED source, it diffuses a luminous flux of 654 Lm.
Build or modify your own luminaires with this 7 watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 7 watt Multi Chip On Board
Number of cores: 14 0.5-watt chips
Voltage: Specific supply 22 to 24 volts 260mA
Amperage: 260 mA
Light output: 654 Lm
LED chip diameter: 20 mm
Outer dimension of PCB: Ø 28 mm
PCB thickness: 2.3 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150°.
