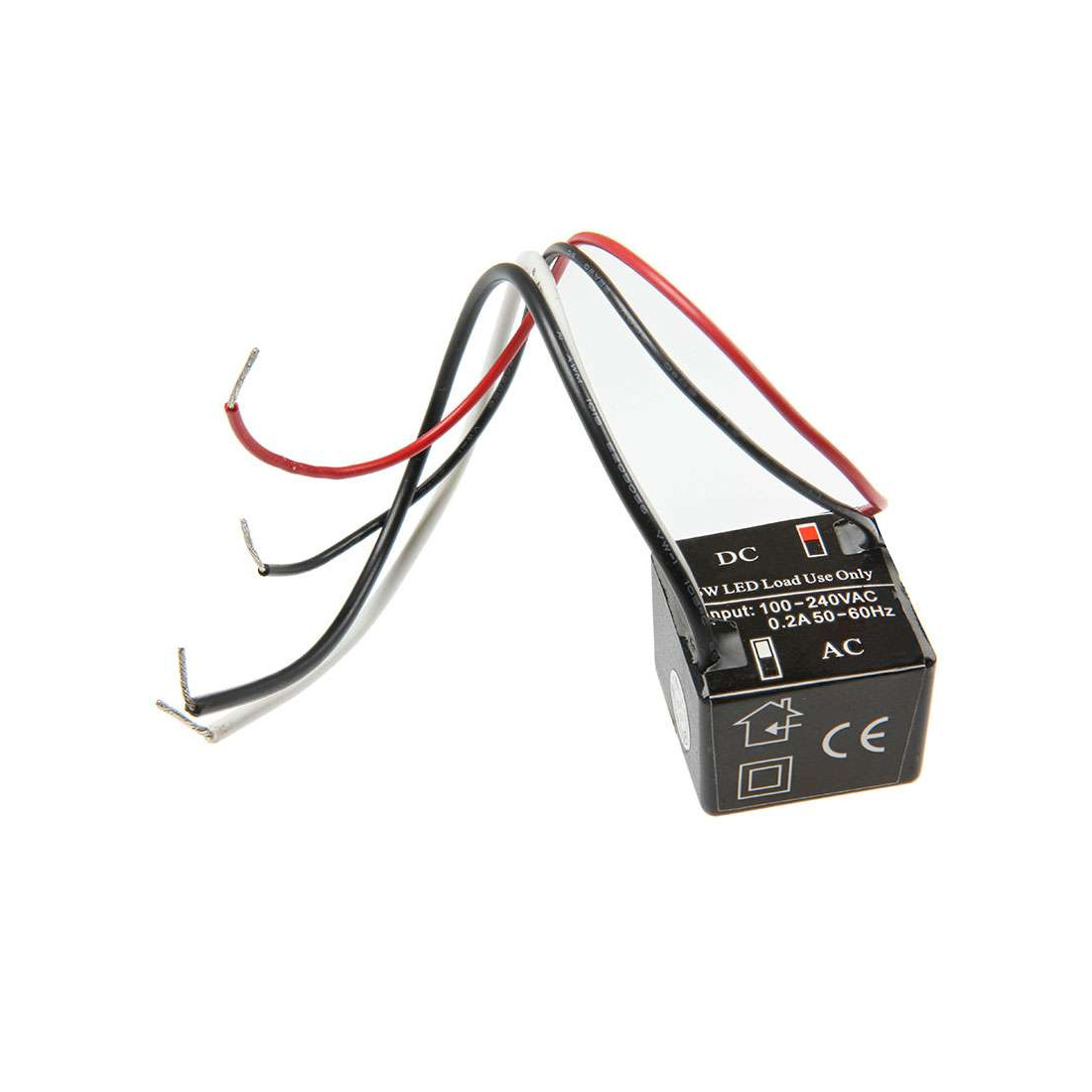

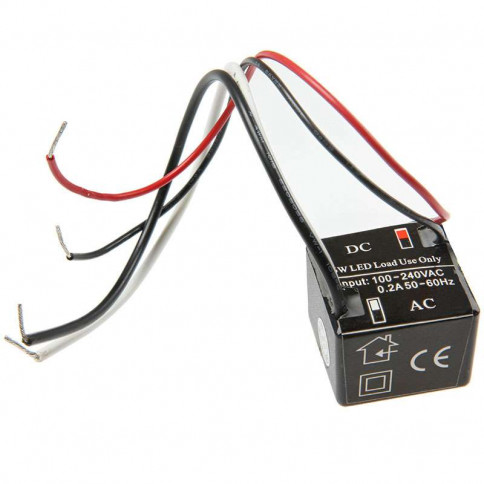

Renovate your old lighting, desk lamps, recessed bathroom or kitchen lights with this LED cube transformer. Its small size means it can be fitted into any small luminaire.
This small LED cube transformer delivers a stabilised 12 Volt DC voltage with a very low tolerance of ± 0.3 Volt, guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free brightness thanks to 12 Volt DC.
This power supply is required for most LED bulbs, LED strips and all other products using 12-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 100 volts to 240 volts.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 6 watts - 12 Volts
Primary current: 0.2 amps 100 to 240 volts AC
Secondary current: 0.5 amps 6 watts 12 volts DC
Type of protection: IP54
Temperature range: -20 to +60°C.
Dimensions: 28 mm x 28 mm height 23 mm
Self-extinguishing plastic case
Length of connection wires: 18 cm
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload and overvoltage
Operating temperature range: -10 to +40°C
Maximum usable power: 6 Watts
Safety certification: CE & ROHS.
