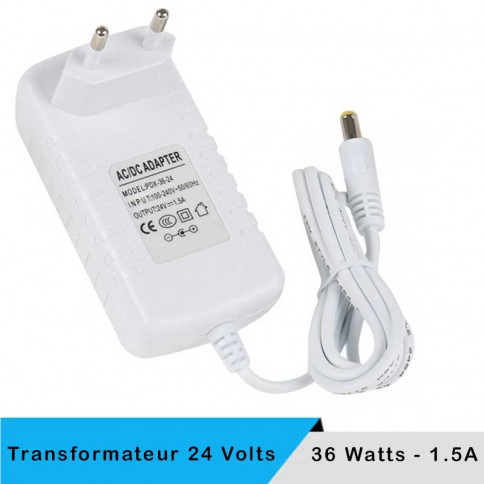

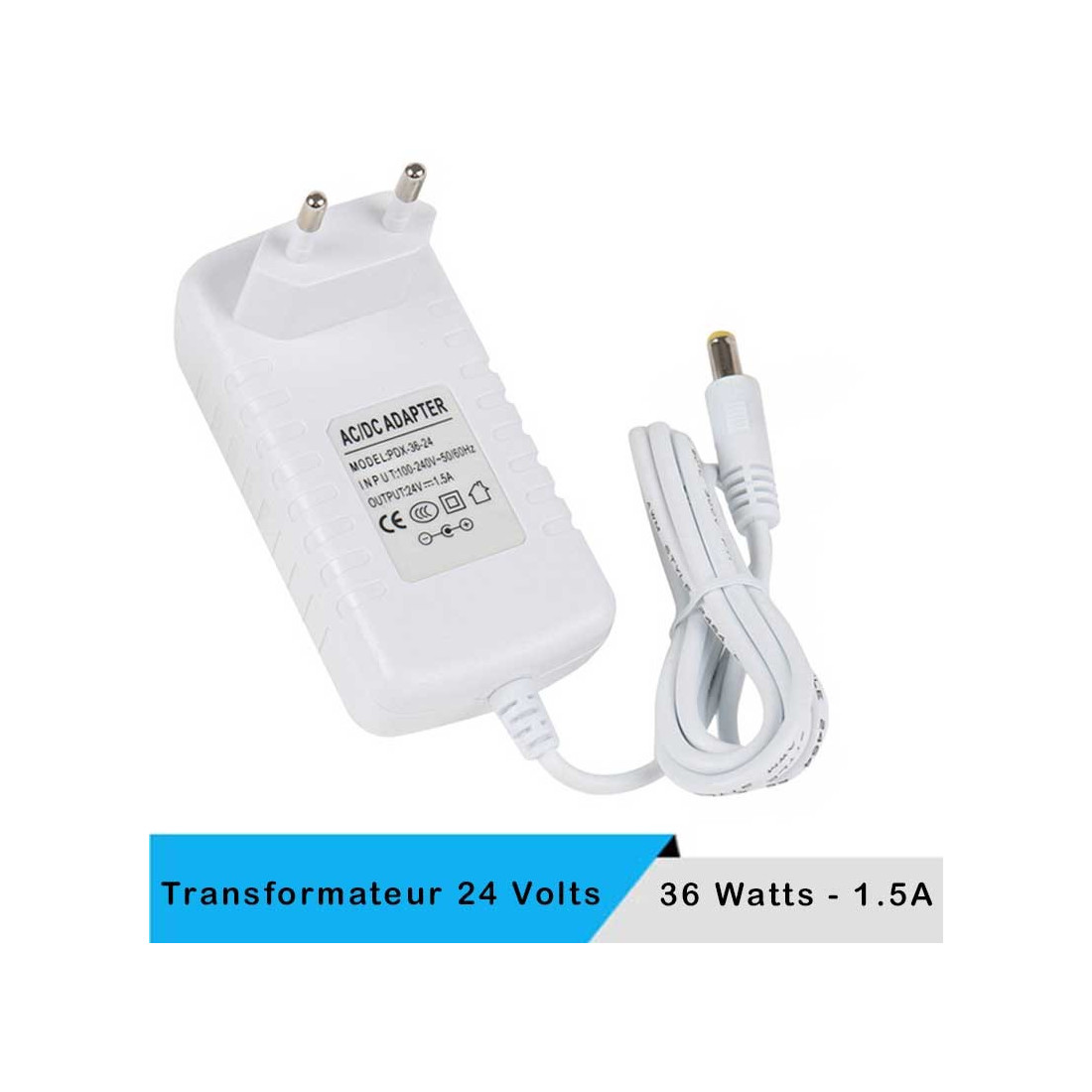

White 24-volt LED transformer with 36-watt LED plug connector
Its white case and cables make it more discreet, making it easier to integrate in conjunction with electronic equipment, lamps or luminaires.
Faultless reliability for the LED source products you are going to connect to this power supply with a stabilised 24 Volt DC current with a very low tolerance of ± 0.5 volts.
Perfect flicker-free brightness thanks to 24 volt DC.
There are two standard jack connectors, both with the same external diameter, 5.5mm, only the internal pin changes from standard 2.1mm to standard 2.5mm.
All our LED transformers are sold in the 2.1 internal diameter standard, the 2.5 version is only available to order.
This power supply is required for most LED bulbs, LED strips and all other products using 24-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 100 volts to 240 volts.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
LED power supply 36 watts - 24 volts
Primary current: 100 to 240 volts AC
Secondary current: 24 volts DC
Output amperage: 1.5 A
Temperature range: -20 to +60°C.
Dimensions: L 116 x W 46 x H 30 mm
Inner diameter: 2.1 mm
External diameter: 5.5 mm
Self-extinguishing white plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overtemperature.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 36 Watts
Safety certification: CE & ROHS.
