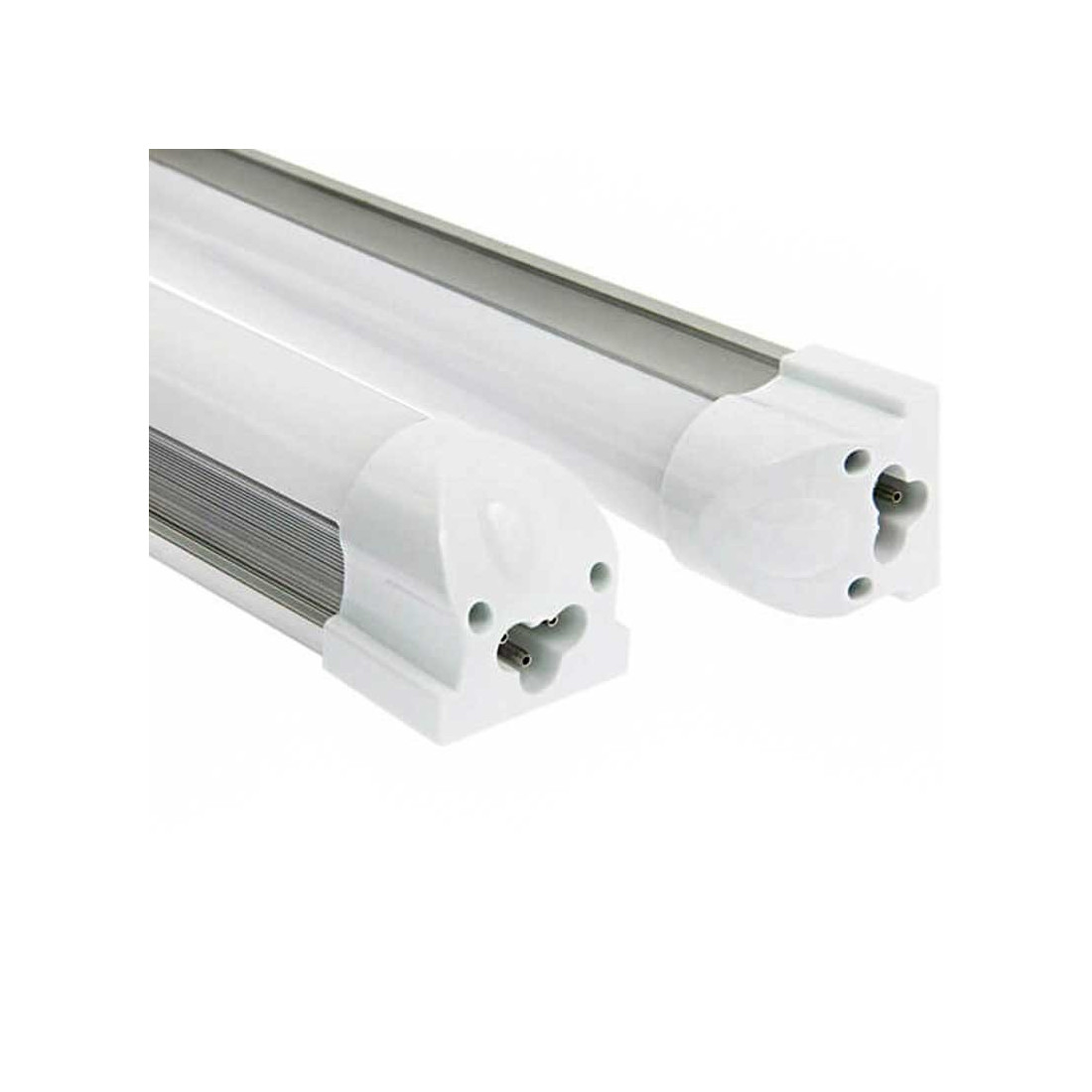

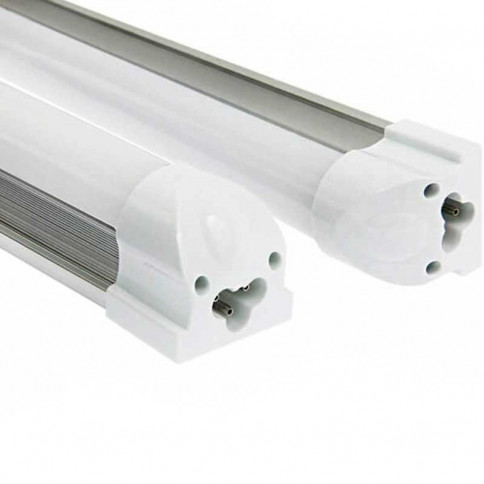

Ultra-compact T8 luminaire with an opaque Milk polycarbonate diffuser for uniform light distribution without glare,
The T8 LED strips in our Lidéa-LED series are available in four different module lengths: 596mm, 900mm, 1205mm, 1505mm.
High-performance LED technology with over 920 lumens for this 60 cm version.
Latest generation Epistar LEDs with a colour rendering index (CRI) of over 80 Ra for the three lighting colours available.
A highly compact modular system thanks to the compact dimensions of the aluminium profile.
Its total cross-section is 33.5 mm in height - ideal for perfect integration;
It will look much better than our old fluorescent T8 neon tube strips.
100% luminosity. used. LED neon tubes and LED strip lights have generally lower lumen outputs than
than the fluorescent solutions they replace, but the narrower lighting angle
angle allows the luminous flux to be fully utilised.
A fluorescent tube distributes its luminosity over 360°, but a large part of this flux is not reflected back to the ground.
Its small size makes it easy to fit into a storage cabinet or under a kitchen unit. It is ideal for use by professionals in the commercial sector, for indirect and invisible lighting, shops and displays.
For a full-length assembly, a small cable or a rigid interconnecting fitting will allow the Lidea-LED strips to be connected in series. With this connection option, you will obtain a linear light that is almost tailor-made for a full-length assembly.
Product description :
Number of LEDs: 48 SMD Epistar type 2835
Power supply: 85 to 265 Volts AC （50/60Hz）
Power consumption: 232 V - 0.048 A - 0.94 Cos = 10.46 watts
Power factor: 0.94
Light output: 87.96 Lumens per watt
Equivalent to an 85-watt incandescent lamp
Brightness: 920.1 Lm white / 880.3 warm white light / 900.7 Lm warm white
Colour: white 6088 K / warm white 4284 K / warm white 3052 K
Colour rendering index: white 80.6 ra / warm white light 80.9 ra / warm white 80.9 ra
Angle of illumination: 240
Protection rating: IP44
Dimensions: length 596 x 34 x H 33.5 mm
Service life: 50,000 hours
Two fixing hooks and a short power supply cable are supplied with the luminaire.
No UV or infrared radiation
Our products come with a one-year guarantee.
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0, over the full range of available lighting colours, meaning that it presents no photo-biological hazard.
Product data sheet :
|
Spectral Analysis |
Spectral Analysis |
Spectral Analysis |
