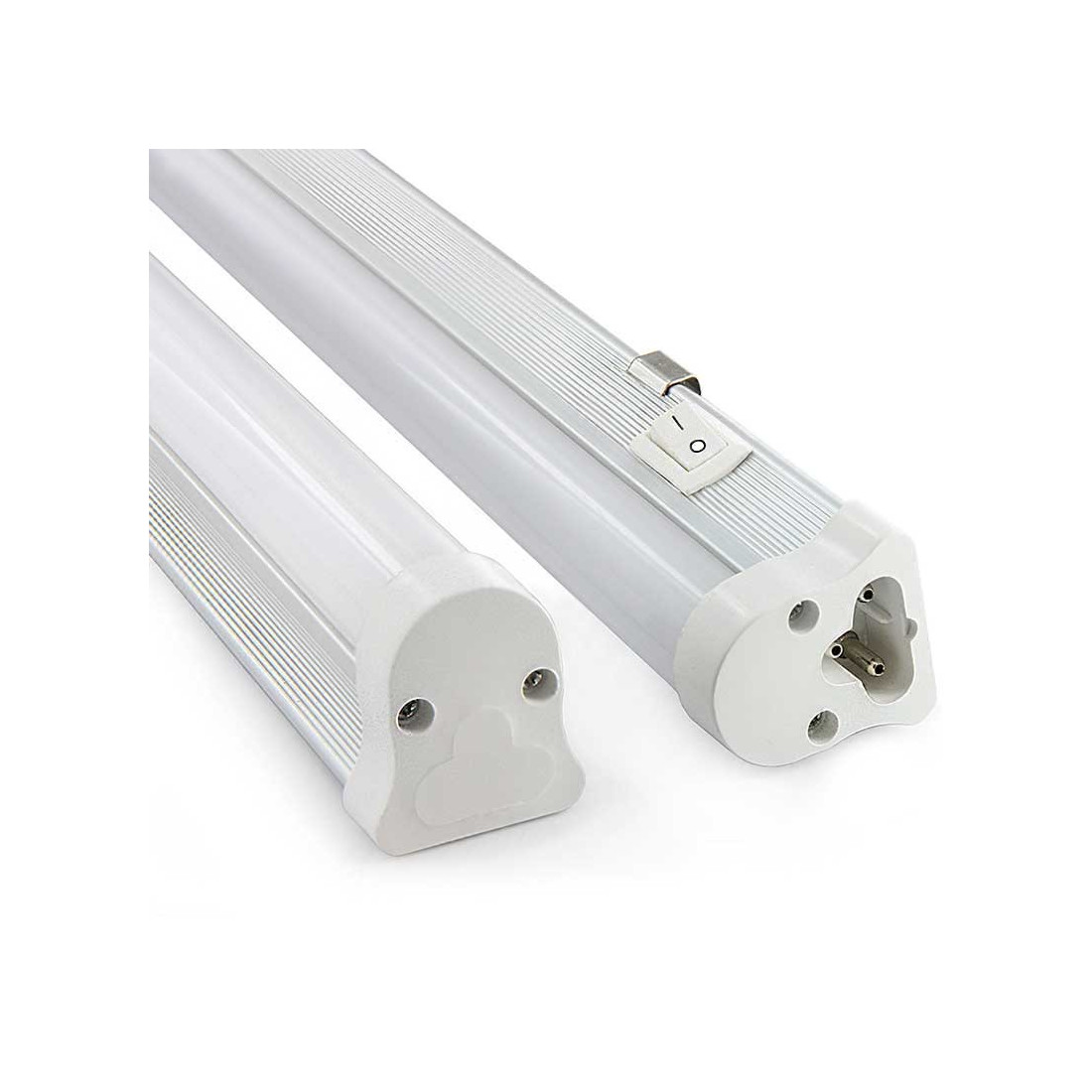

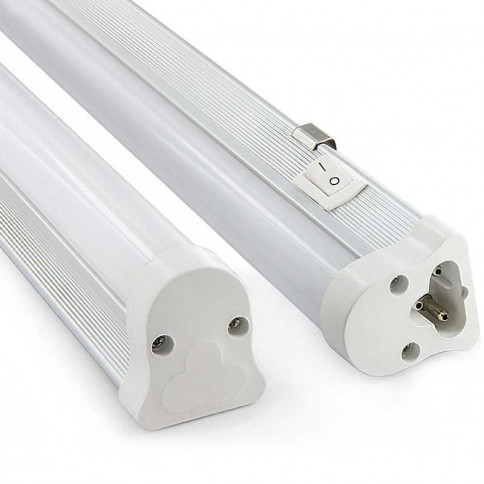

The LED strips in our Lidéa-LED series are available in four different module lengths: 580mm, 880mm, 1180mm, 1480mm.
And for ease of use, they are all fitted with a switch integrated into the aluminium profile.
High-performance LED technology with almost 1300 lumens for this 90 cm version.
Latest generation Epistar LEDs with a colour rendering index (CRI) of over 83 Ra for the three lighting colours available.
Soft, uniform light diffused through a milk-like poly methacrylate (PPMA), comfortable glare-free lighting that will soon become indispensable.
A highly compact modular system thanks to the compact dimensions of the aluminium profile.
Its total cross-section is just 26 mm high - ideal for perfect integration;
It's much more attractive than our old T5 fluorescent neon tubes.
Its small size makes it easy to fit into a storage cupboard or under a kitchen cabinet. It is ideal for professional use in the commercial sector, for indirect and invisible lighting, shops and displays.
For a full-length assembly, a small cable or a rigid interconnecting fitting will allow the Lidea-LED strips to be connected in series. With this connection option, you will obtain a linear light pattern that is almost tailor-made for a full-length assembly.
Product description:
Number of LEDs: 108 SMD Epistar type 3014
Power supply : 85 to 265 Volts AC （50/60Hz）
Power consumption: 14.6 watts
Power factor: 0.931
Light output: 89.84 Lumens per watt
Equivalent to a 105-watt incandescent lamp
Lumen output: 1196.0 Lm white / 1299.9 Lm warm white / 1172.5 Lm warm white
Colour: white 6456 K / warm white 4271 K / warm white 3212 K
Colour rendering index: white 85.2 ra / warm white 83.0 ra / warm white 84.1 ra
Angle of illumination: 240
Protection rating: IP44
Dimensions: length 880 x 28 x 24.5 mm
Service life: 50,000 hours
Two fixing hooks and a short power supply cable are supplied with the luminaire.
No UV or infrared radiation
Our products come with a one-year guarantee.
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0, over the full range of available lighting colours, meaning that it presents no photo-biological hazard.
Product data sheet :
|
