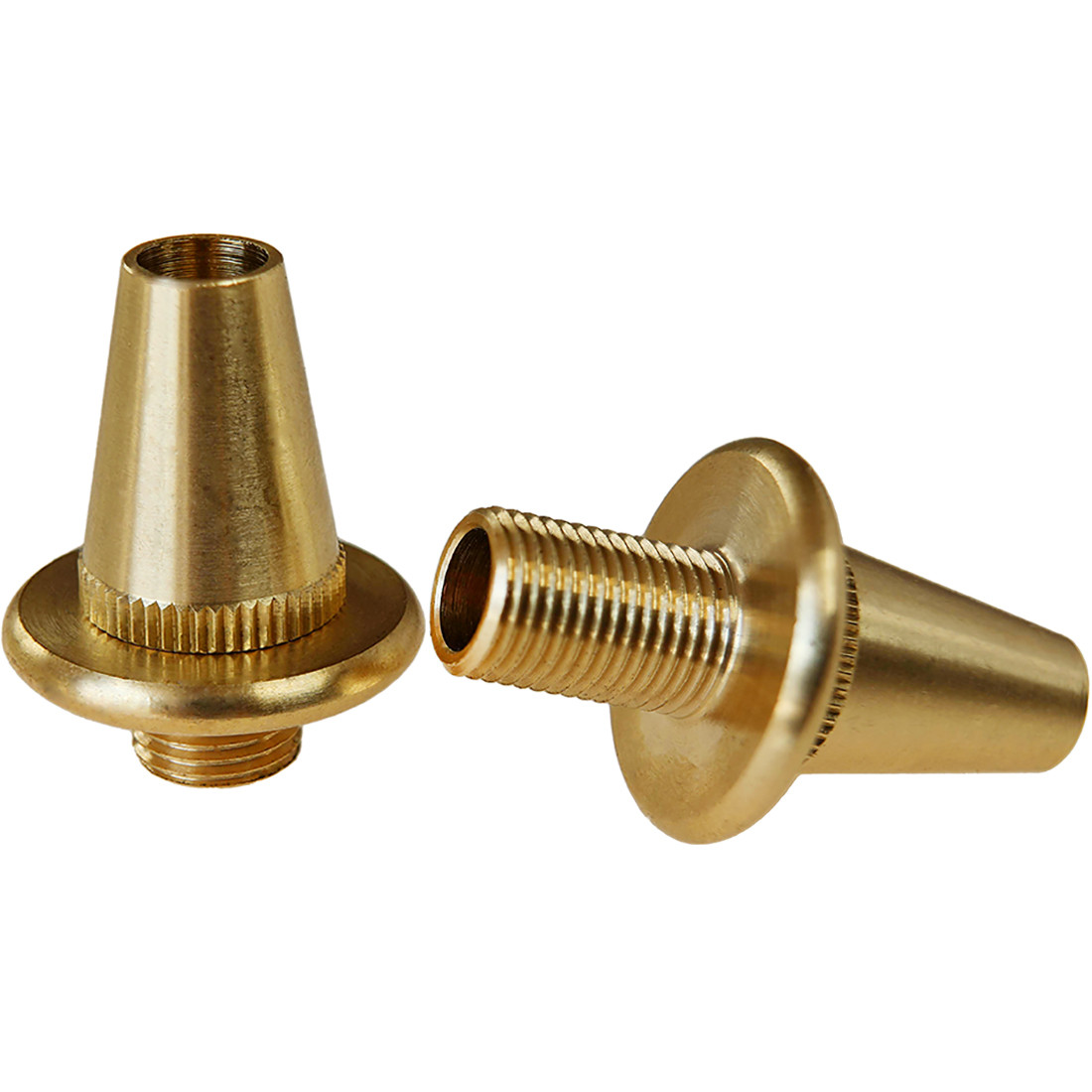

The Mila brass electrical cable clamp, in the shape of a pointed hat, is designed for lamp sockets or ceiling roses. It uses tapered silicone to lock cables with a diameter of 4 to 7 mm.
All you have to do is screw on the top clamping ring to ensure the cable is perfectly held in place.
There are two lengths of thread for the foot in the various versions available. It's important to choose the length that's right for you: long enough to catch the socket's thread, but not too long to make it easier for electrical cables to pass through.
The thread lengths available are 8 millimetres and 15 millimetres.
Product description:
Base diameter: 24mm
Height: 25mm without thread
Cable diameter from 4mm to 7mm
Composition: brass
Thread: M10 1mm pitch, thread lengths available are 8mm and 15mm depending on the version chosen.
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electrical cable*.
Sold individually
Can be made to measure
