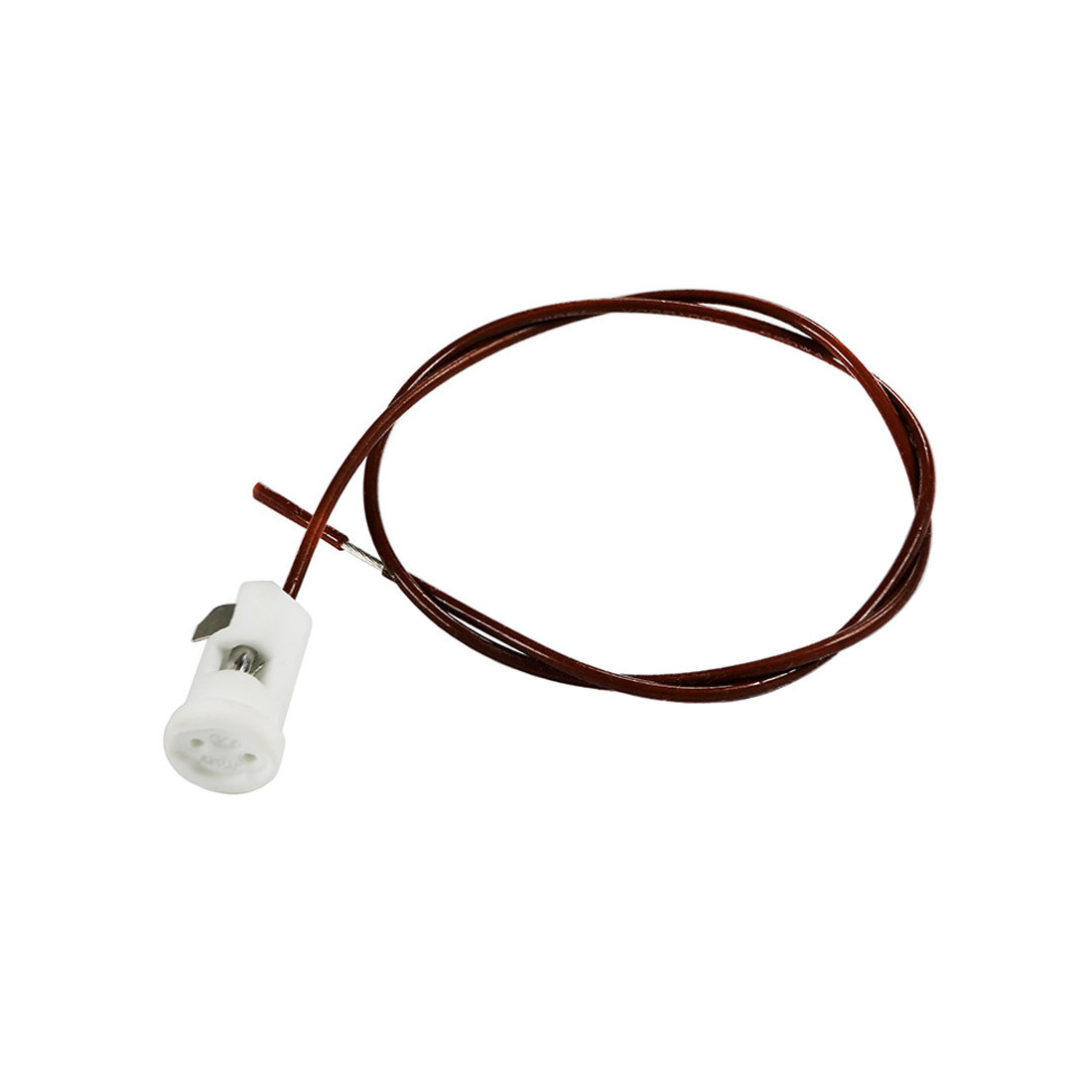

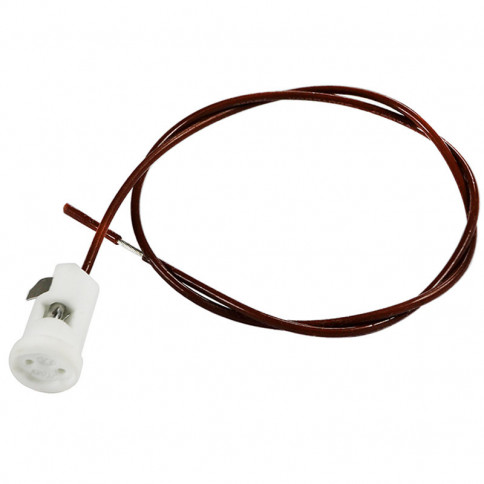

Mini ceramic G4 base with a single connection cable and earth connection, for use on low voltage only.
The negative pole is connected to the lamp holder by means of a small metal connection tab on the lamp holder, while the positive pole is wired.
The very small size of the base makes it easy to integrate into your lighting designs. The diameter of this small ceramic connector is only 7.5 mm.
This base must be used on a low-voltage electrical circuit, as some LED lamps in G4 format are now available in 230 volts and for obvious safety reasons cannot be used on this type of G4 base.
Product description :
Single G4 socket on bare wire
Maximum voltage: 12 volts only
Maximum temperature: 250 °C
Power: maximum 50 watts
Wire length: 30 cm - 1 x 0.5 mm2
Cap dimensions: length 15.3mm, Ø 7.5mm, collar Ø 8.8mm
Safety assurance: CE & ROHS
Our products are guaranteed for one year
precautions for use:
Switch off the power supply before working on the installation.
