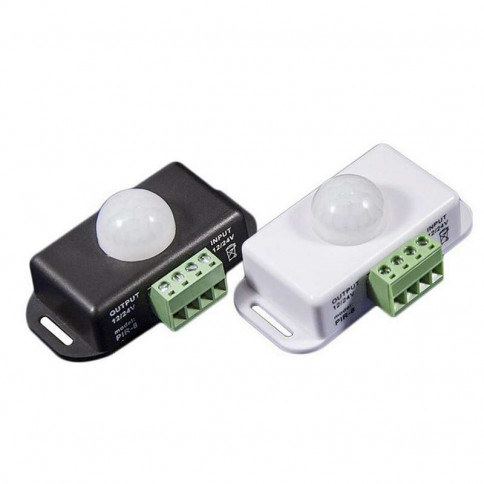

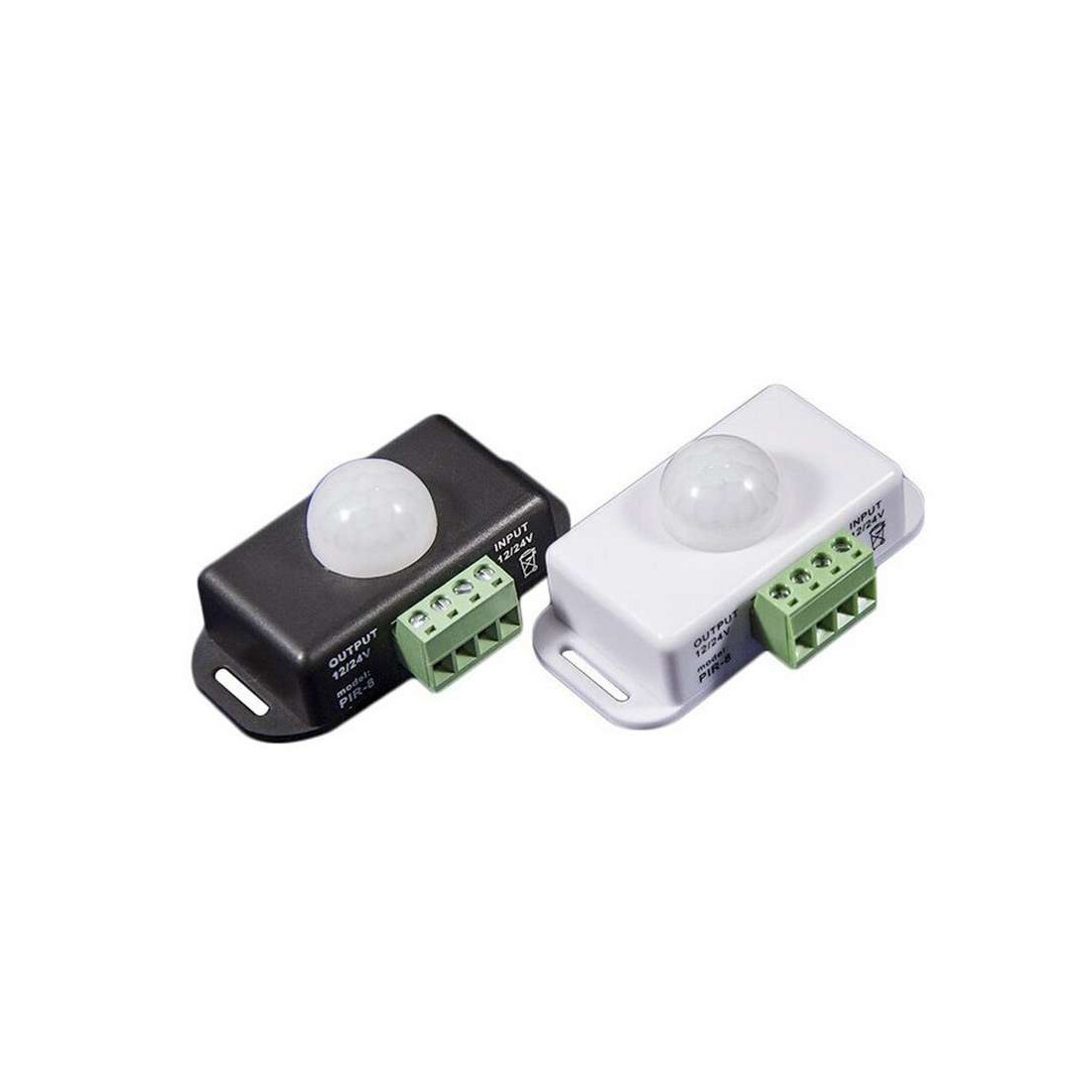

Motion detector, IR on/off switch

Motion detector, IR on/off switch 12 or 24 volts

With this module, you can turn your lamp, spotlight or LED strip into a detection luminaire.

The light comes on automatically when a person passes through the detection zone, so there's no more wasting electricity by forgetting to switch off the lights.

Colour
EFGYCT63-blanc
€19.50
Tax included

Description

This motion detector has an infrared system. Compatible with 12V and 24V devices, maximum load 8A. The detector is designed for indoor use. Protection against overvoltage, undervoltage and overload.

Features:
Automatic on/off switch
Input voltage: 10.5 - 16 volts or 21 - 32 volts
Output voltage: 10.5 - 16 volts or 21 - 32 volts
Adjustable time delay: 1 to 10 min
Detection angle: horizontal 60° / vertical 60
Detection distance in free field: 8 m
Output current: 8 amps
Current consumption (idle): 2mA
Housing colour: black or white (depending on declination)
Dimensions: length 76, width 35, height 34mm
Weight: 30g
Warranty: 1 year
