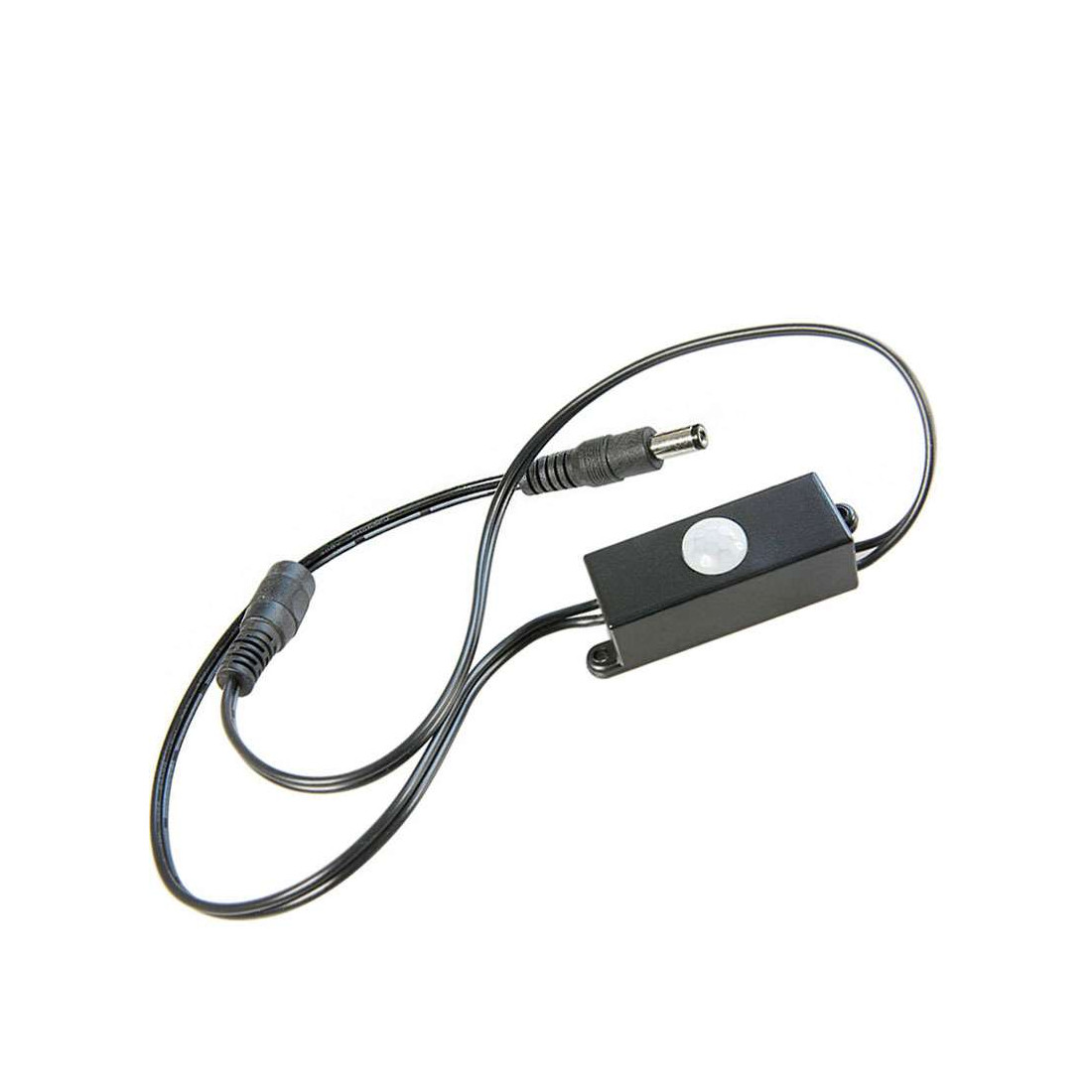

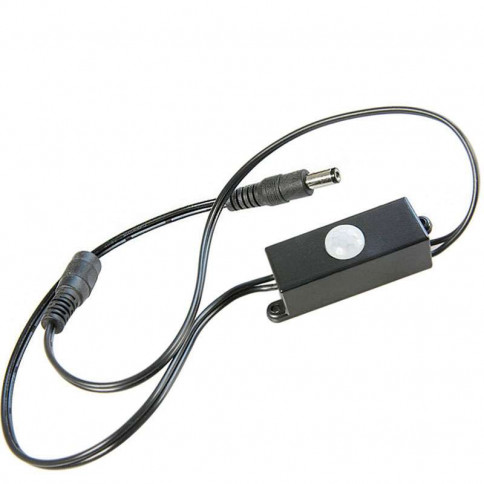

This motion detector jack features an infrared system. Compatible with 12V and 24V devices, maximum load 4A. The detector is designed for indoor use.
Protection against overvoltage, undervoltage and overload.
Features:
Automatic on/off switch
Voltage: 5 volts to 24 volts
Time delay: From 2 min
Detection angle: Horizontal 60° / Vertical 60
Detection distance in free field: 8 m
Operating current: 4 amps
Current consumption (idle): 2mA
Dimensions: length 60, width 20, height 20mm
Length of jack cables: 2 x 30cm
Weight: 30g
Warranty: 1 year
