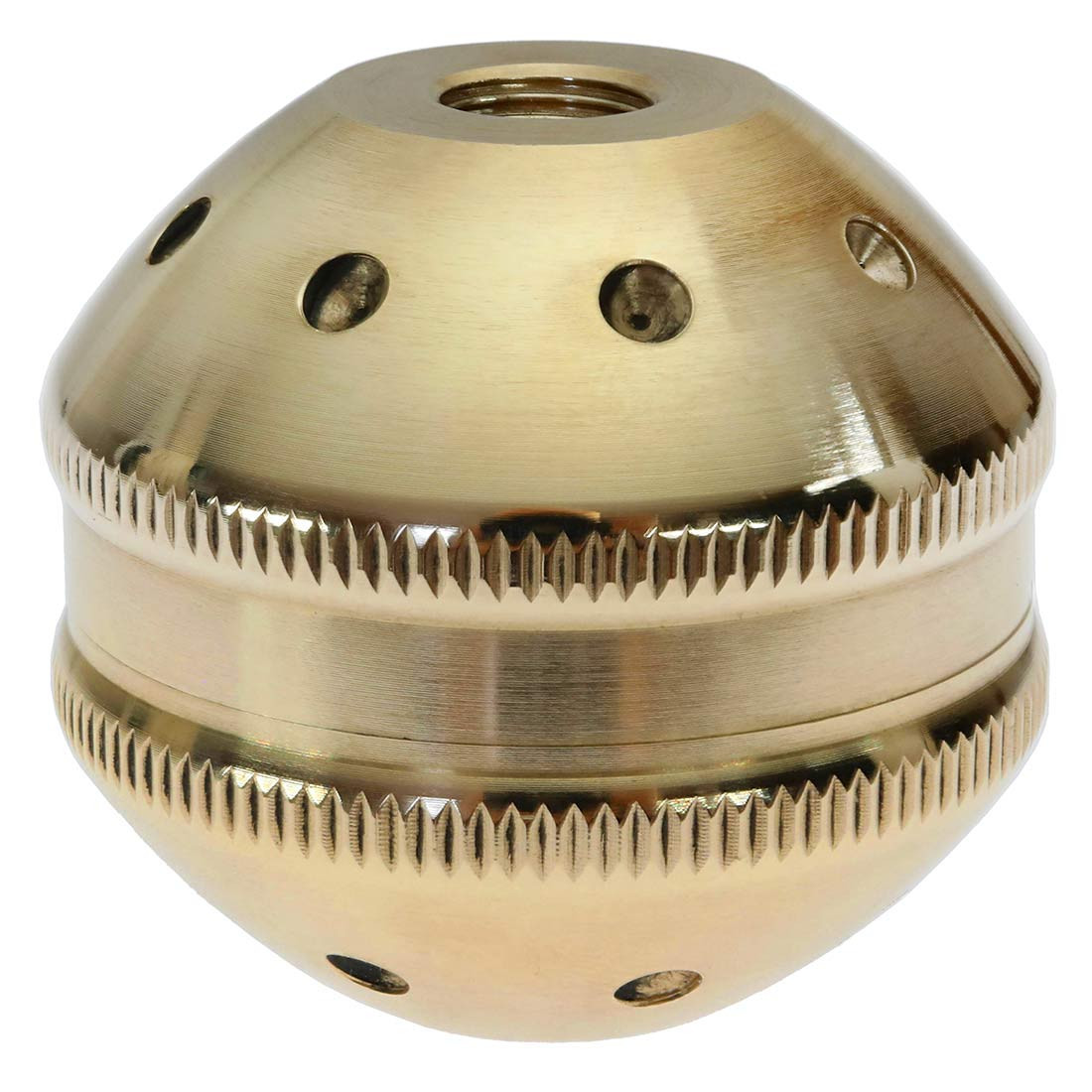

This Orthros sphere-shaped nipple has two M10 tappings located on both the top and bottom of each hemisphere.
In addition, it has 16 small indentations which, once drilled, will allow additional tapping to generate several more M10 outlets.
The predefined indentations allow you to choose the number of additional outlets you require.
The indentations are angularly arranged every 22.5°, allowing you to obtain a symmetrical arrangement every 90°.
All you need to do is use a 9-millimetre-diameter bit to drill the chosen recesses, then use the tap suggested at the bottom of the product data sheet to make the necessary threads.
Specifications
External diameter: 45mm
Internal diameter: 38mm
Height: 41mm
Tapping: 2 x M10 in 1mm increments on top and bottom part
Material: brass
Weight: 150gr
Sold individually
