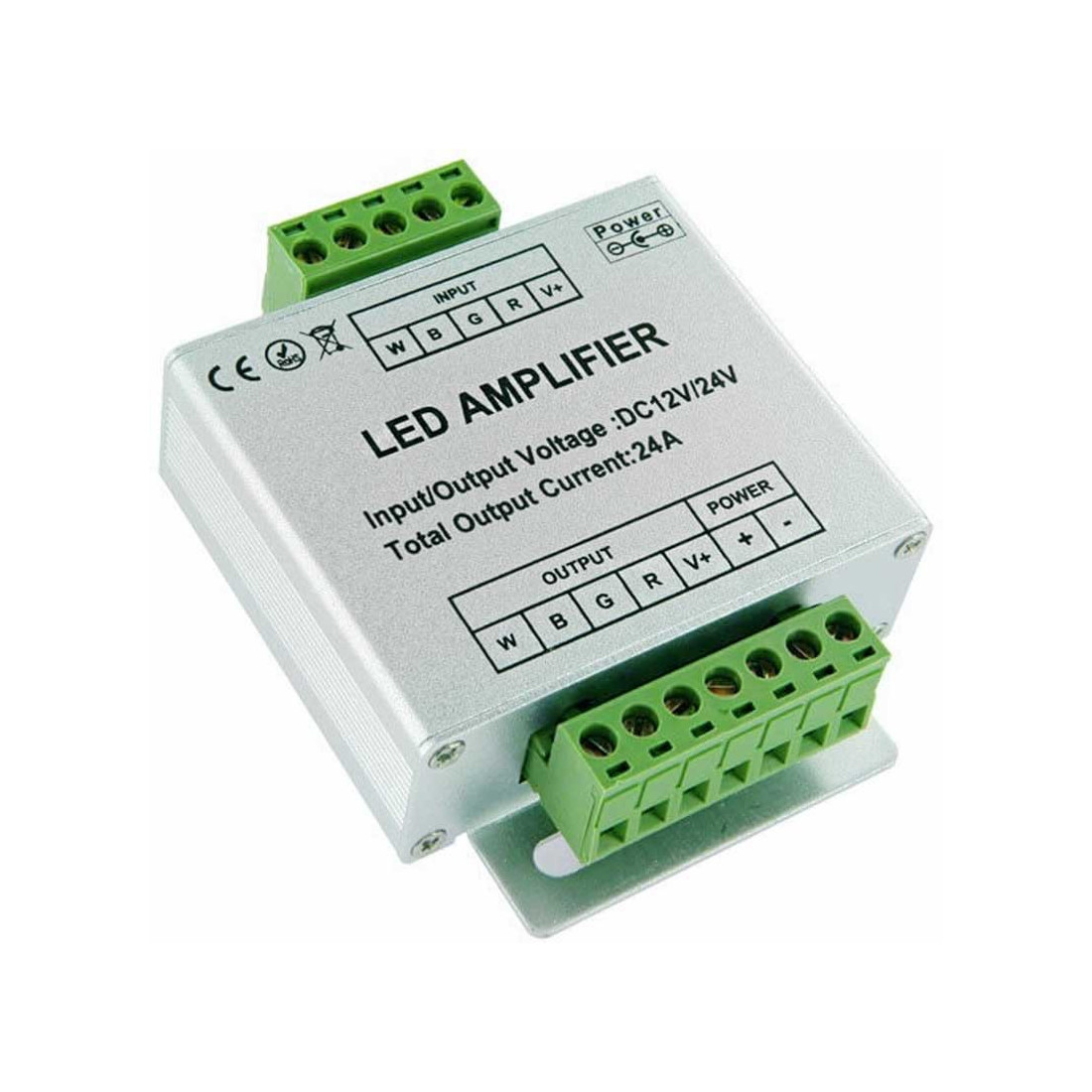

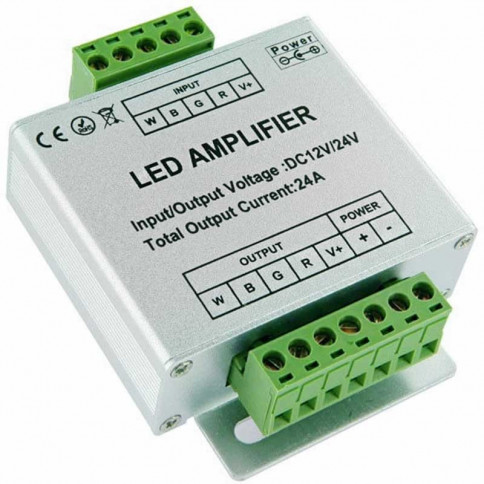

This signal amplifier will receive the original information from the colour controller or dimmer of the first LED strip, and will duplicate it identically without loss of signal to the next LED strip.
The result is light of identical intensity and colour throughout your ribbons.
You can repeat this type of installation ad infinitum by inserting a signal amplifier between each length of 5-metre or 10-metre Strip for a maximum power of 144 watts.
Two types of installation are possible, in parallel or in series.
Each amplifier and its LED strip can be powered by an individual 12-volt transformer, or a general transformer can be wired to power all the amplifiers.
The 12-volt power supply connection is made via a screw terminal block or a female jack plug.
Product description:
Amperage: 12 A
Supply voltage: 12 or 24 volts DC
Total power: 144 watts at 12 volts and 288 watts at 24 volts
Operating temperature : - 20° + 60°
Dimensions: Length 84 x Width 64 x Thickness 24 mm
Safety standards: CE and ROHS
Our products are guaranteed for one year.
