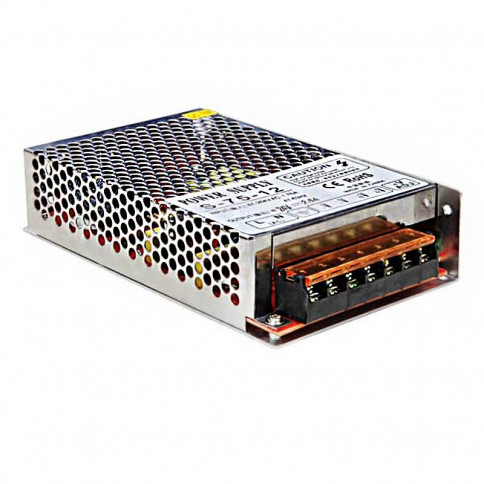

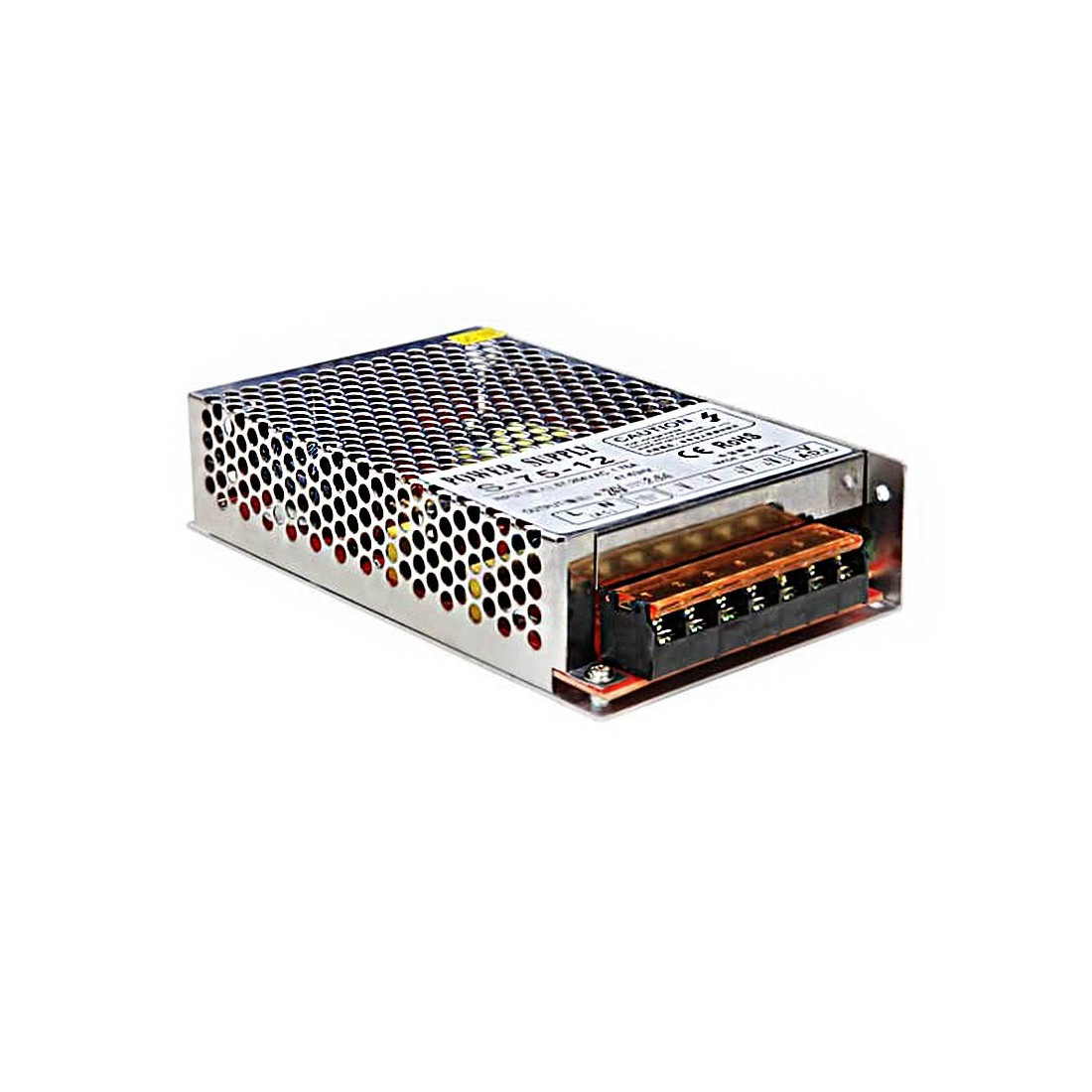

This 60 watt, 24 volt DC stabilised LED transformer has a very low tolerance of ± 0.5 volts, guaranteeing faultless reliability for the LED source products you are going to connect to this power supply.
Perfect flicker-free brightness thanks to 24 Volt DC.
This power supply is required for most LED bulbs, LED strips and all other products using 24-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 220 volts to 240 volts.
With two connection terminals, one at each end of the box, one for the 230 volt mains input and the other for the 24 volt DC output.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 60 watts - 24 volts
Primary current: 170 to 250 volts AC
Secondary current: 24 volts DC
Type of protection: IP67
Temperature range: -20 to +60°C.
Dimensions: L 165 x W 96 x H 38 mm
Material: aluminium & resin
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 60 Watts
Safety assurance: CE & ROHS.
