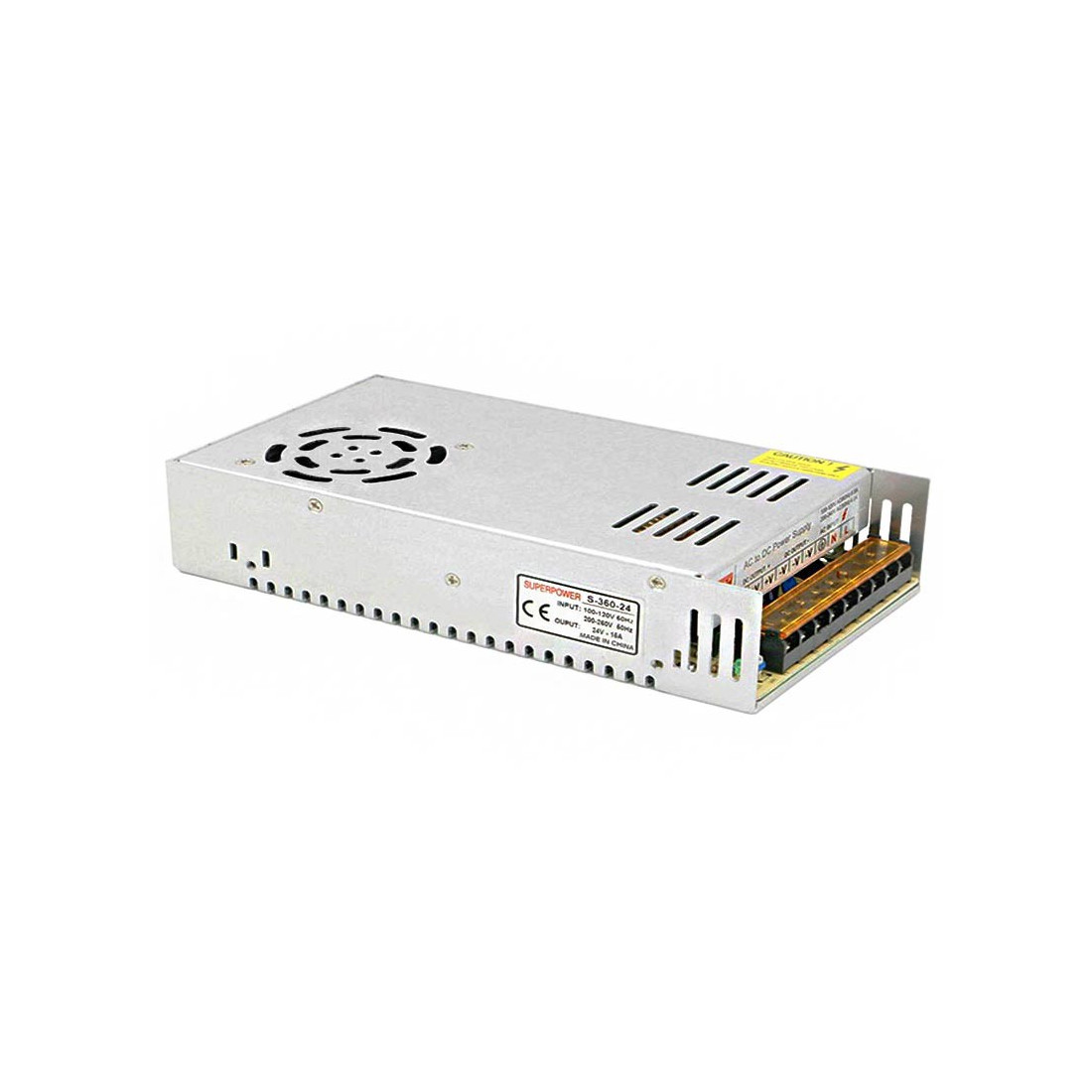

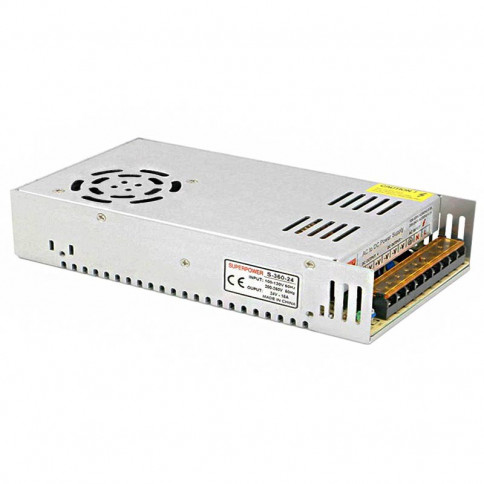

This small 360 watt LED transformer delivers a stabilised 24 Volt DC voltage with a very low tolerance of ± 0.3 volts, guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free brightness thanks to 24 Volt DC.
This power supply is required for most LED bulbs, LED strips and all other products using 24-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 220 volts to 240 volts.
With connection terminals at the end of the case, one for the 230 volt mains input and another for the 24 volt DC output.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 360 watts - 24 volts
Primary current: 220 to 240 volts AC
Secondary current: 24 volts DC
Amperage: 15 Amps
Type of protection: IP30
Temperature range: -20 to +60°C.
Dimensions: L 200 x W 100 x H 50 mm
Self-extinguishing plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 360 Watts
Safety certification: CE & ROHS.
