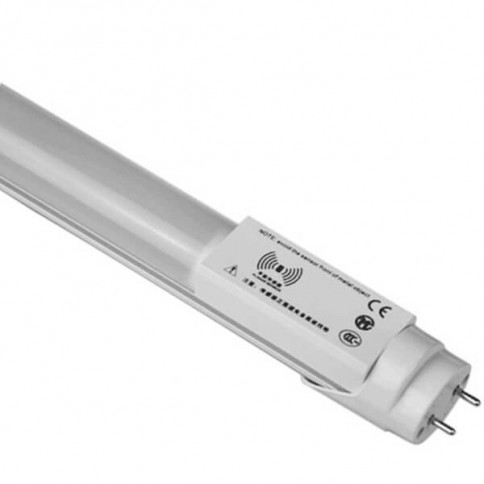

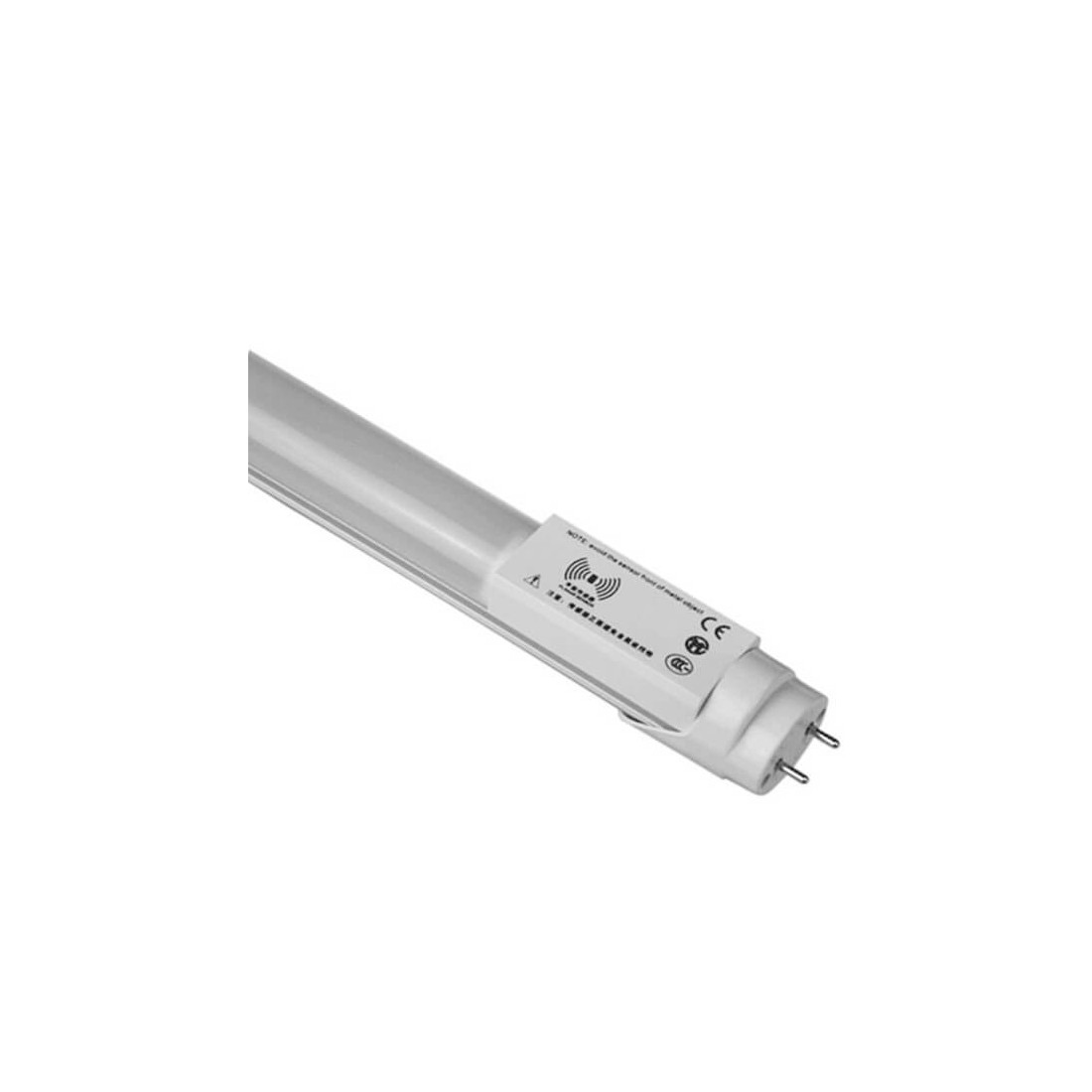

The Tube SensLed is equipped with microwave detection, which is much more precise and avoids the incessant switching on and off that passive infrared (PIR) detectors do.
This system is ideal for environments where people sit for long periods, such as on your garden terrace in the evening. What's more, HF detectors are impervious to pollutants, unlike passive infrared detectors which lose sensitivity if the lens gets dirty.
The twilight switch-on setting is preset at the factory to an appropriate outdoor light threshold, and the timer is set for 30 seconds, so there's no need for the user to make any adjustments.
Microwaves or hyper-frequencies are electromagnetic waves of intermediate frequency between infrared and radio waves.
They are called SHF (Super High Frequency between 3 and 30 GHz) and UHF (Ultra High Frequency from 300 MHz to 3 GHz).
as in mobile phones and wireless networks (Bluetooth, Wi-Fi, DECT, Wi-Max, local wireless video transmitters for baby monitoring, antenna-free TV, microwave ovens, etc.).
The ultra-precise sensor only detects movement and is influenced by four factors:
- the size of the object (intruder)
- its distance from the detector
- its speed of movement
- its angle of approach.
The power of the microwaves is very low, less than 0.8mW, so they are harmless to humans and animals.
The LED tube will only go out if there is no movement in its search field.
Conclusion:
- Greater detection stability
- Greater adaptability to difficult environments
- Greater detection field accuracy
Maximum energy efficiency! Consumption is reduced by around 60% compared with a conventional fluorescent tube plus ballast installation, giving a return on investment in less than a year and a half.
Installation involves simply modifying your control gear, removing the ballast starter wiring and connecting directly to 230 volts (phase on one side and neutral at the other end of the tube).
High colour rendering index of over 80Ra, with very pleasant colour temperatures.
Anti-glare diffuser with "frost" appearance, no visible light spots.
Replaces all your conventional fluorescent neon tube installations on a G13 base.
No flickering, instant start-up, no hazardous substances such as mercury.
Three lighting colours available: white, warm white light
Product features:
Number of LEDs: 100 SMD type 2835 LEDs
Power supply: 85 to 277 volts AC
Anti-dazzle light diffuser with "frost" appearance
Brightness: 2215 Lm
Colours: white 5200 K, light warm white 4600 K, warm white 3300 K
Colour rendering index: White 80.9 ra, Light warm white 82 ra, Warm white 81 ra
Power factor: >0.9
Service life: > 50,000 hours
Power consumption: 25 watts
Base: G13
Dimensions: length 1200 mm (excluding pins), Ø 26 mm
Integrated HF/microwave motion detector
Weight: 684 g
No UV or infrared radiation
Safety standards: CE and ROHS
Our products come with a one-year guarantee.
This LED tube is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as a group 0 risk, over the full range of available lighting colours, meaning that it presents no photo-biological hazard.
The values for luminous power, colour rendering and power consumption are carried out by us in France using appropriate equipment in our quality control laboratory. The information on the product sheets is not overestimated!
Our Spectra color LED tubes comply with European standards for public and workplace lighting.
The requirements of this NF EN 12464-1 standard concern the quality of lighting so that work requiring good visual acuity can be carried out accurately and without eyestrain.
This circular highlights the fact that the colour rendering index (CRI) is satisfactory from a value of 80Ra, which is essential for all workstations requiring constant visual concentration.
