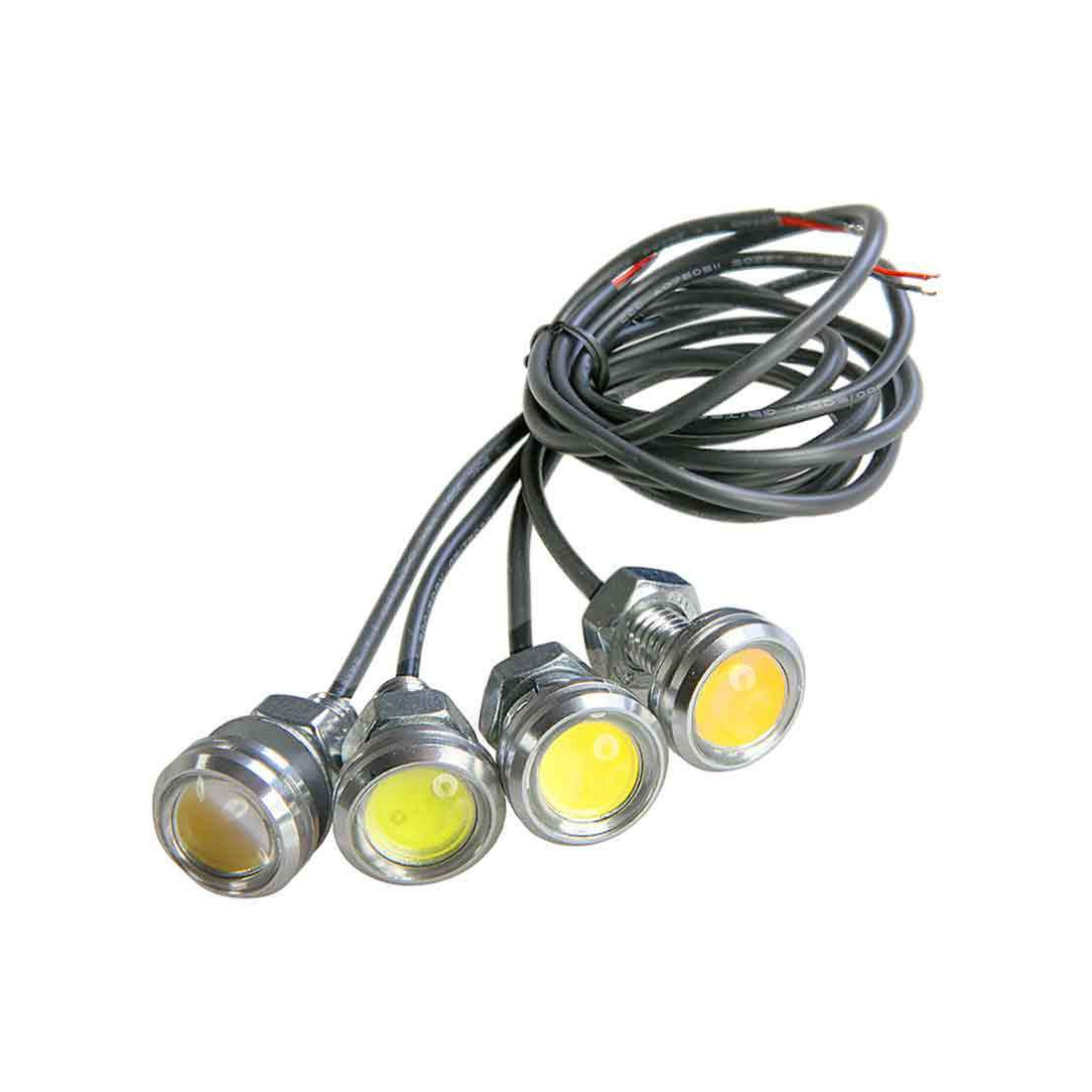

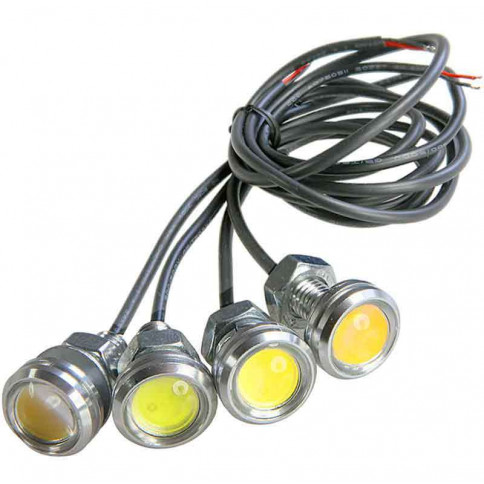

Mini LED spotlight fitted with a spherical diffuser lens placed above the LED source that concentrates the luminous flux at an angle of 100°. It is mounted on an M10 threaded sleeve with a 1.5 mm pitch.
This LED spotlight makes it easy to install small light sources simply by going through a partition or on shelves, kitchen units or work surfaces.
A 3 watt LED spotlight with a small diameter, only 23 mm for a thickness of 10mm which will enable you to integrate it easily into your lighting creations.
Product description :
3-watt Ø 12 mm SMD COB type LED spotlight on M10 threaded tube
Equivalent to a 25-watt halogen lamp
Lumen output: 250 lumens white / 240 lumens warm white / 245 lumens warm white light
Light colours: white 6000k, warm white 4400k, warm white 3200k, orange 1892 k
Colour rendering index: white 83.9 ra / warm white light 82.6 ra / warm white and orange 80.9 ra
Diffusion angle: 100
Thread diameter: M10, 150 mm pitch
Dimension: diameter 23mm, thickness 10mm
Length of sleeve: 23mm
Voltage: 12 volts DC
Maximum temperature: 80°C
Wire length: 55 cm - 2 x 0.75 mm2
Supplied complete: LED spotlight with M10 sleeve and nut
Safety assurance: CE & ROHS
Our products are guaranteed for one year
precautions for use:
Switch off the power supply before carrying out any work on the installation
