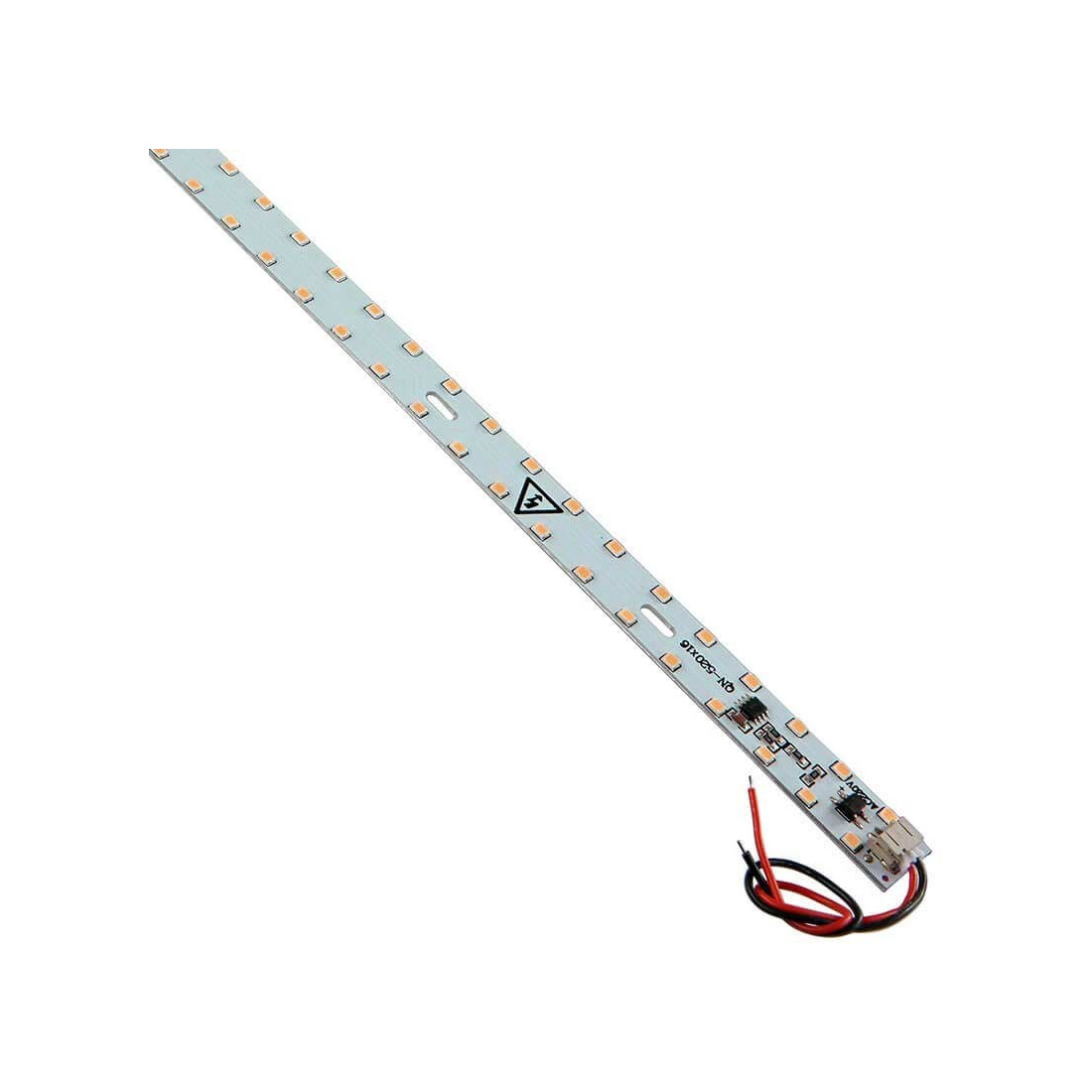

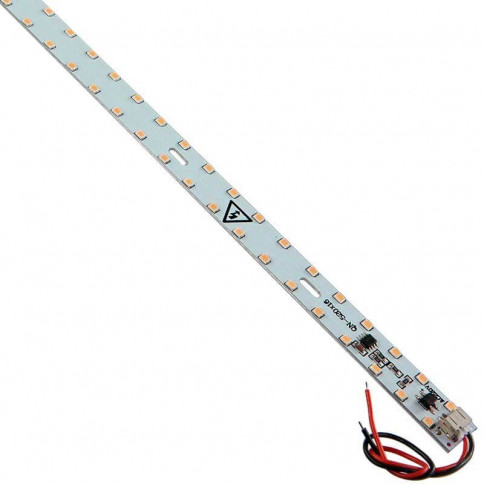

There's no need for a transformer or power supply, this 12-watt rectangular AC - LED plate operates directly on 230 volts alternating current thanks to its integrated transistorised power supply...
The 76 2835 SMD LEDs are arranged uniformly on this 520 mm x 17 mm rectangular plate for good light distribution
With just 12 watts, it can be integrated into your old luminaires, saving you real money.
It will give off an impressive 1100 lumens, with the same light output as a 100-watt bulb.
Product description :
Number of LEDs: 76 LED 2835
Strip size: 520mm x 17mm
Transistor power supply (integrated on the circuit board)
Power consumption: 12 watts
Cosine phi power factor: 1
Dimmability: no
Luminous efficacy: 85 Lumens per watt
Equivalent to a 100-watt halogen lamp
Brightness: 1100 Lumens white
Colour: white 6268 K warm white 3022 K
Colour rendering index: white 82.8 ra
Angle of illumination: 180
Life: 30,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as group 0 risk for the proposed lighting colours, i.e. it presents no photo-biological hazard.
Example of installation on a 600x600 recessed luminaire to replace fluorescent tubes
