Coaxial electrical cable in 0.75mm² multi-strand silver-plated copper with internal and external PTFE insulation for excellent chemical and mechanical properties.
It is packaged in rolls of up to 500 metres and you will receive the desired length in a single piece depending on the quantity chosen.
Features:
200° high temperature cable
Silver-plated copper conductors on a transparent Teflon sheath
Rated voltage: 3 volts / 500 volts
Conductor cross-section: 0.75mm².
External cable diameter: 2.86mm
Insulating material: Teflon in transparent

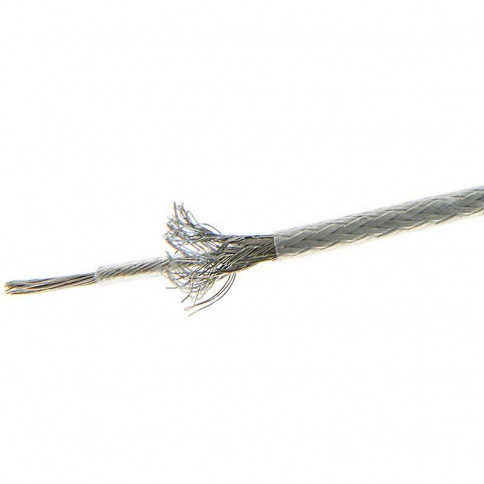

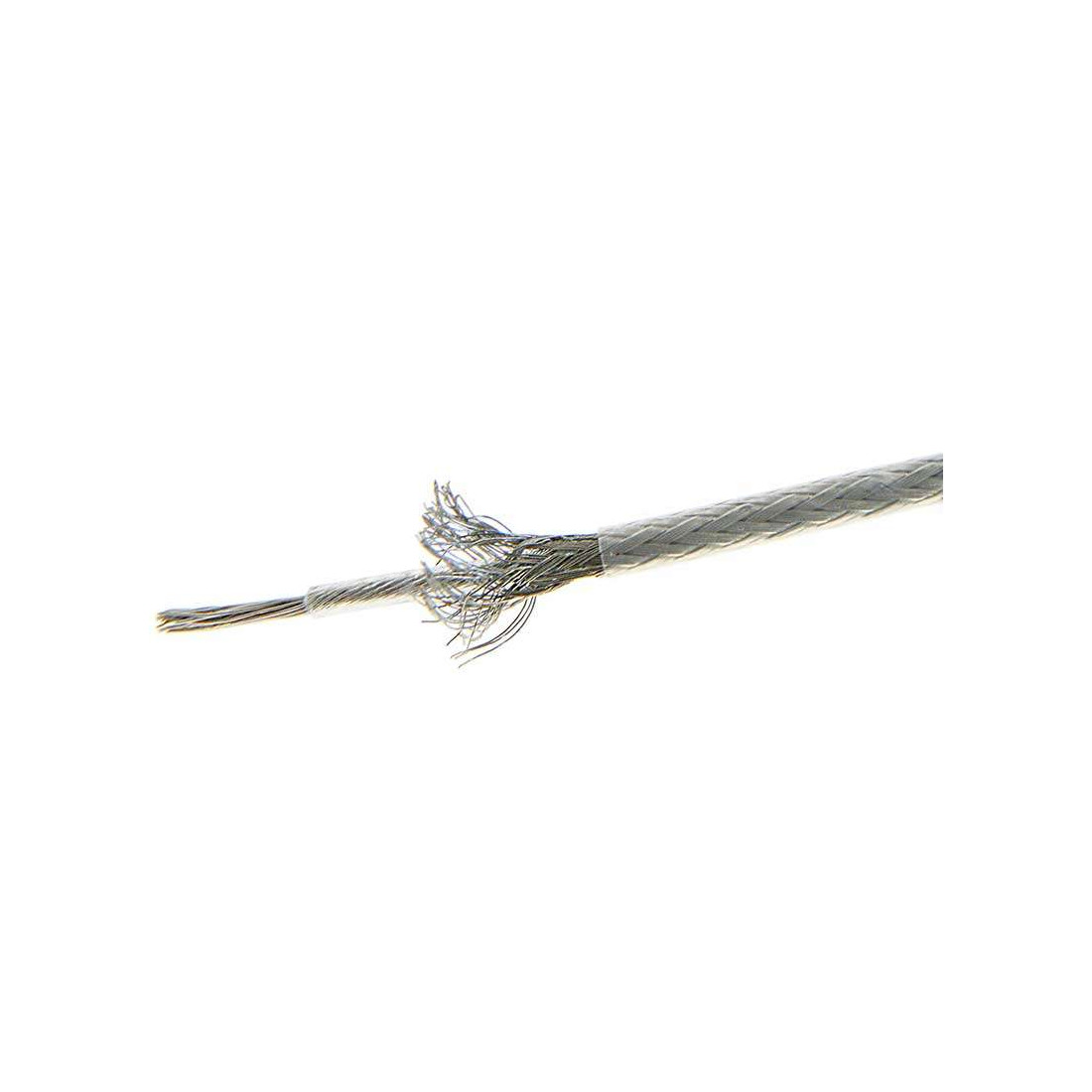

For optimum installation of our coaxial electrical cable, which includes a central electrical conductor and another visible one around the transparent sheath, refer to the photo below. Start by stripping the protective sheaths in a staggered pattern, about 8 mm for the central sheath and 4 to 5 cm for the outer sheath.
Next, carefully bundle the peripheral electrical conductor on one side and use a first heat-shrink sleeve to reconstitute an insulating sheath.
Finally, apply another heat-shrink sleeve at the splice location for final protection. This procedure will ensure safe and efficient installation of our coaxial electrical cable. Heat-shrink tubing is available as an accessory at the bottom of the product data sheet.
