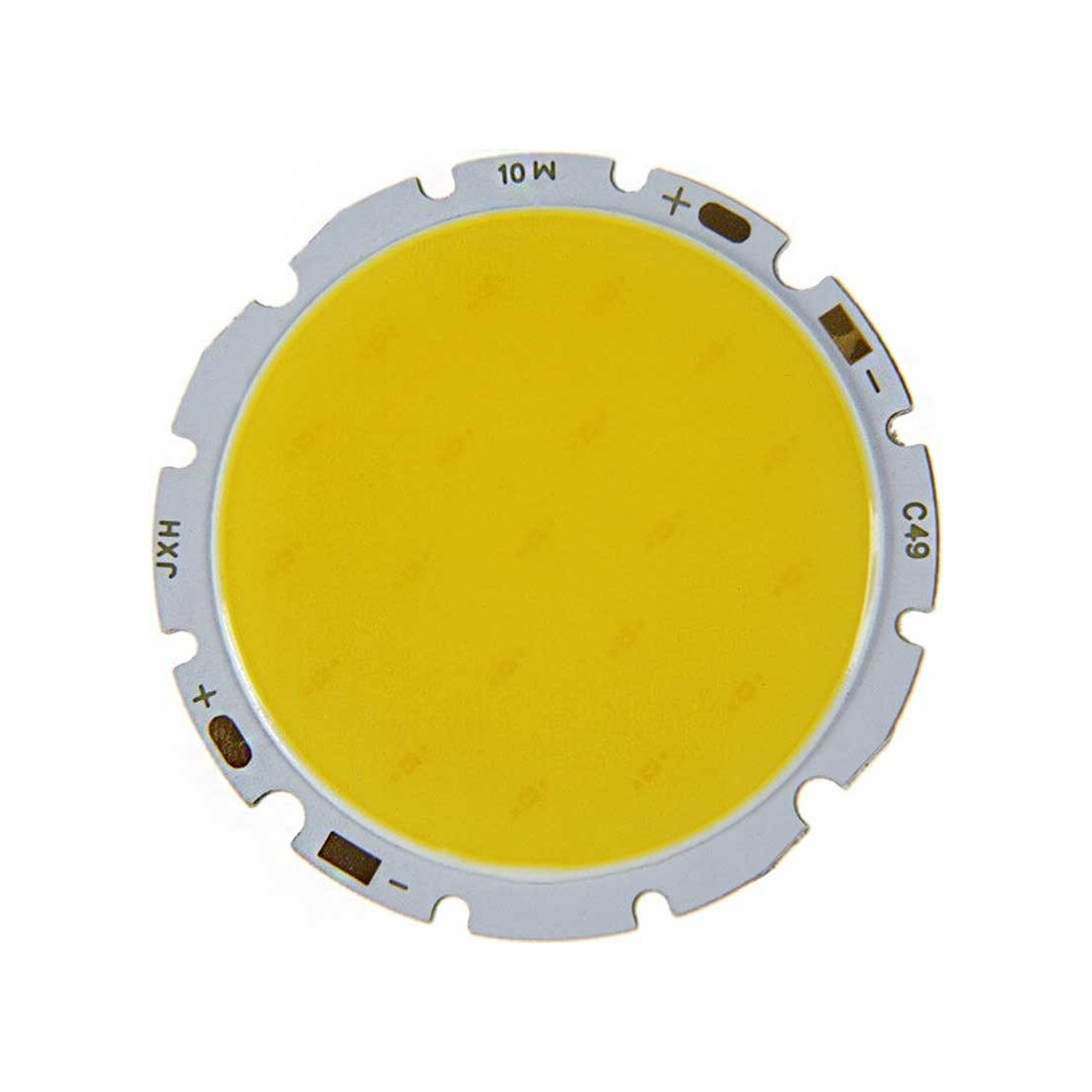

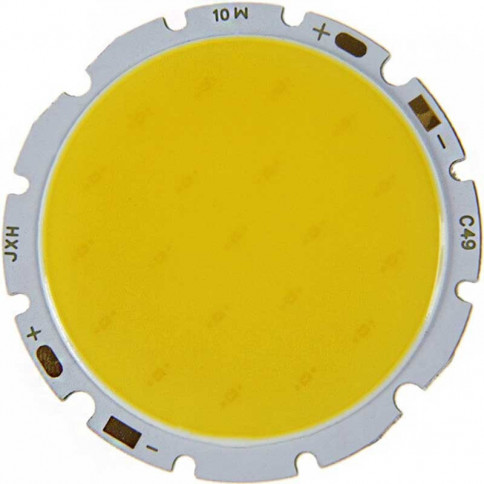

A 10 Watt Multi Chip on board LED with a 41 mm diameter surface emitting LED source, it diffuses a luminous flux of 935 Lumens.
Build or modify your own luminaires with this 10 watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 10 watt Multi Chip On Board
Number of cores: 20 chips of 0.5 watts each
Voltage: Specific supply 32 to 34 volts 260mA
Amperage: 260 mA
Light output: 935 Lumens white, 843 Lumens warm white
LED chip diameter: 41 mm
Outer dimension of PCB: diameter 49 mm
PCB thickness: 2.3 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150°.
