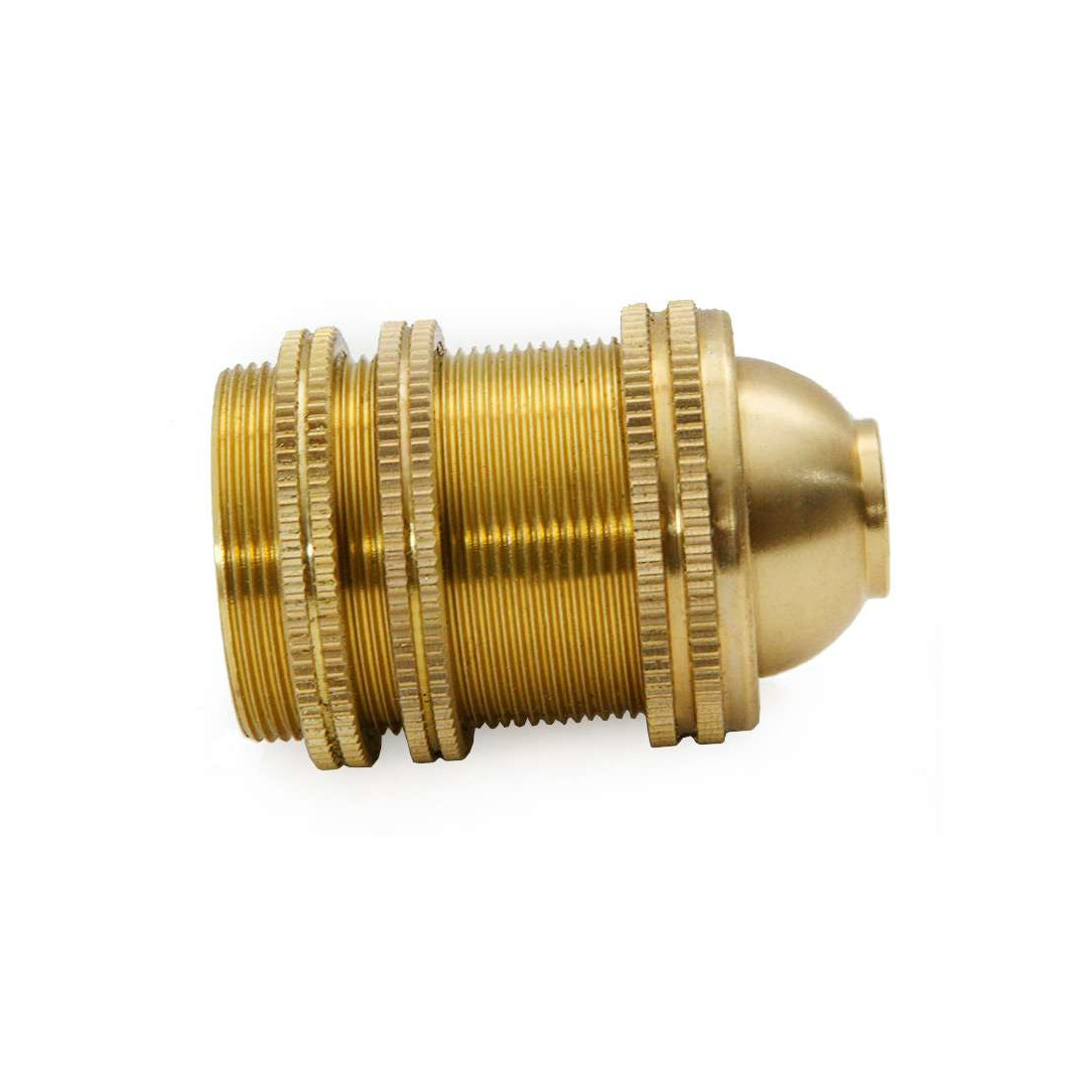

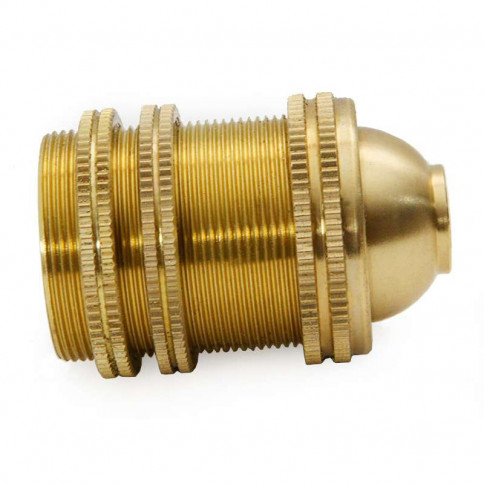

This solid brass Niels lampholder with G9 E12 or E14 base (depending on the version chosen) is threaded with a double ring, and fits onto M10 threaded hollow rods and cable ties.
Its natural brass finish makes it ideal for Edison-style incandescent or LED filament lamps.
Features:
Lampholder for G9 E12 or E14 lamp, depending on version
Material: brass
Dimensions: body diameter (27.7 mm on thread)
Height 47 mm without cable clamp
Cable connection (depending on version)
Power: 1A - 250V
Maximum bulb power: 75 Watts
Weight: 60gr
Lampholder sold individually without cable and without cable clamp
Electrical safety information.
In terms of electrical connectivity, with wiring including phase and neutral, earthing is not necessary. However, if this lampholder is installed on a metal structure, earthing of these metal parts will be necessary.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
