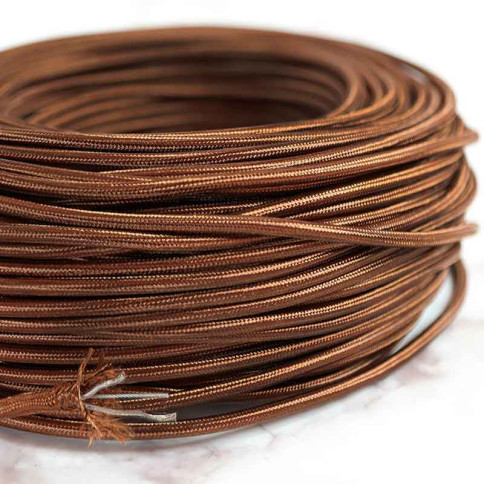

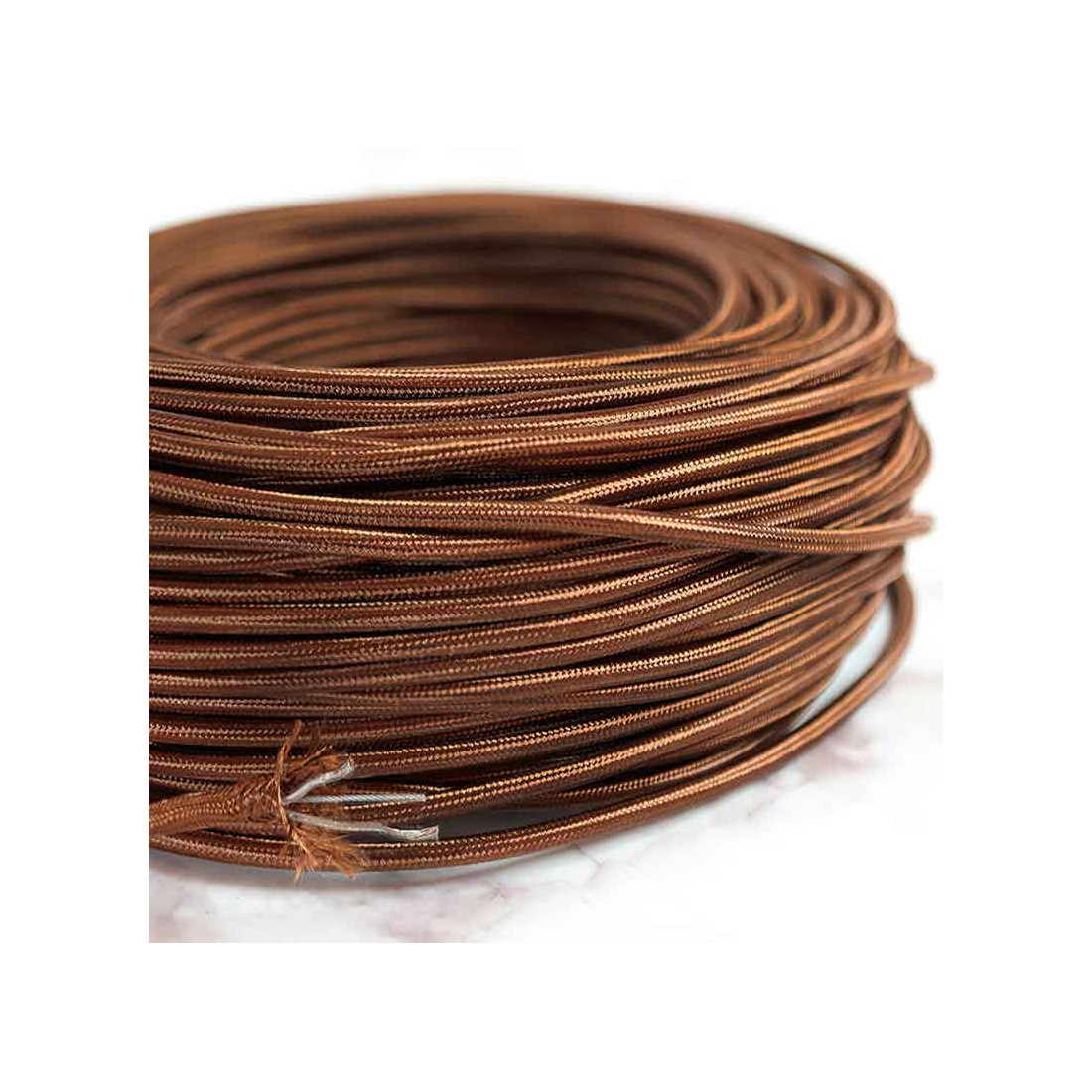

Round chestnut brown braided cable with two 0.75mm² conductors and 1.2mm diameter stainless steel suspension cable with PTFE sheath on the electrical and PVC conductors.
It is packaged in rolls of up to 300 metres. The cable is sold in one-metre increments, but you will receive the desired length in one piece, up to a maximum length of 300 metres, depending on the quantity chosen.
This cable has Teflon (PTFE) insulation, providing effective insulation with 50% less thickness than traditional PVC insulation. Thanks to this technology, the cable is lighter and more flexible, while maintaining excellent resistance to heat and chemicals. What's more, the end result is a smaller diameter cable, ideal for applications requiring optimised space management.
Thanks to the space savings provided by the Teflon insulation, the final cable retains the same diameter as a traditional electrical cable without a load-bearing steel wire, while offering increased robustness and durability.
Features:
Two 0.75mm² multi-strand flexible copper wires
Teflon-coated copper conductor insulation
Rated voltage: 3 volts / 500 volts
Conductor cross-section: 0.75mm².
External cable diameter: 5.9mm
Outer insulation material: PVC
Stainless steel cable 8 strands diameter: 1.2 mm
Maximum load of suspension cable: 50 kgs
We manufacture made-to-measure electrical cables of any size, with braided coverings of various colours and types. Our cables are fitted with electrical conductors of different cross-sections, ranging from single-core to multi-core. They can be flat, round or even twisted. This offer is reserved for professionals, for orders of at least 100 linear metres of cable.
