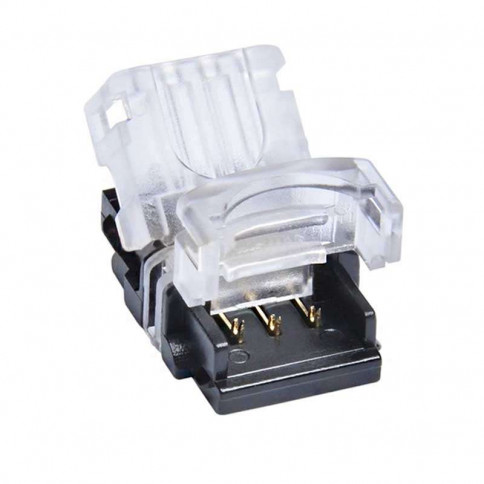

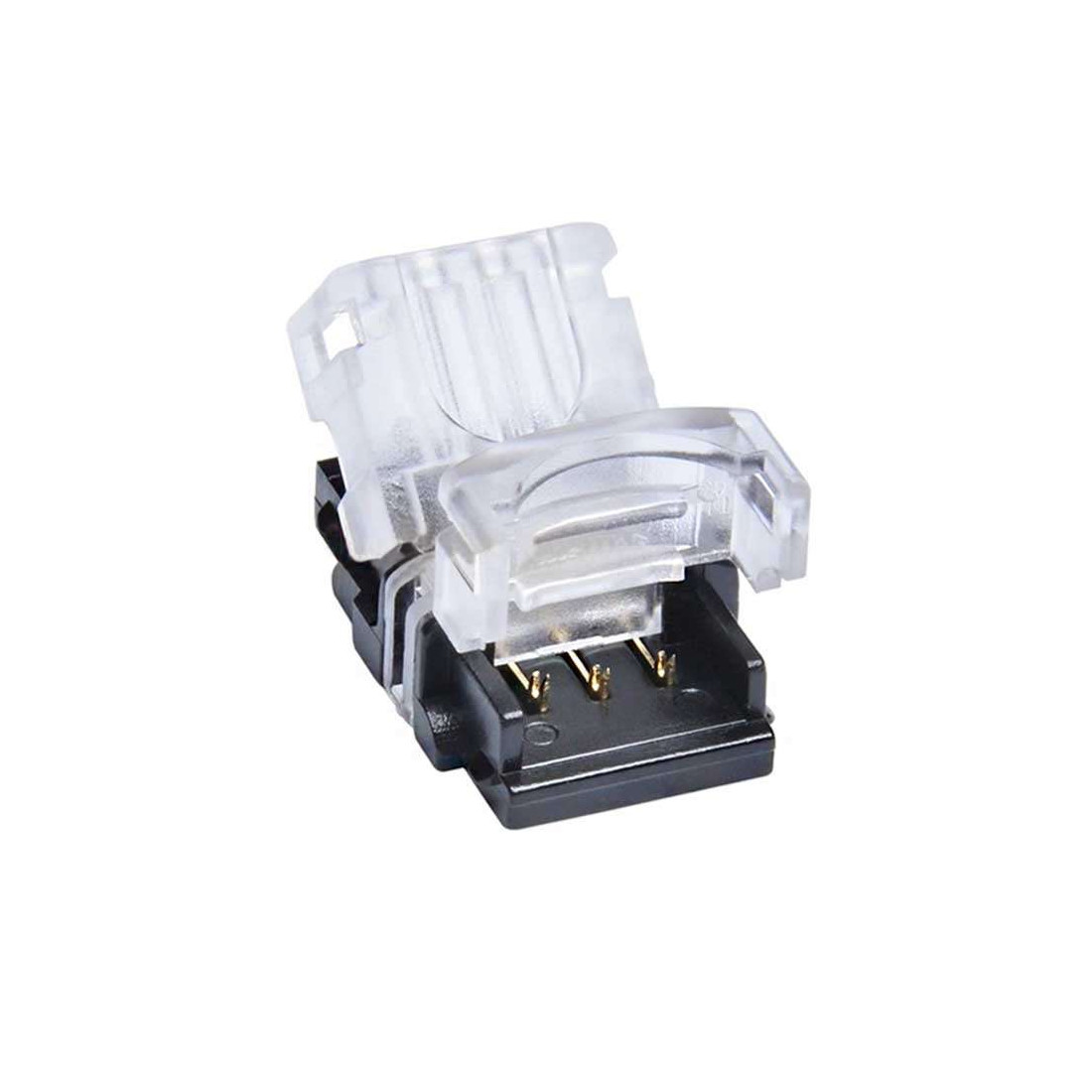

Dimma colour Striplock connector box with three connections will enable you to wire your 10mm LED strip very easily without having to solder.
Striplock connectors are perfectly suited to IP65-tight LED strips covered with a silicone gel on the surface of the LEDs.
However, they are made slightly differently for IP20 sealing, so you'll need to select the appropriate model for your ribbon.
Note that they are not compatible with IP68 ribbons.
With the Striplock housing , there's no need to strip the wires or remove the silicone seal from the LED ribbon.
Electrical connections are made simply by punching holes in the insulation.
Striplock connectors are perfectly suited to IP65 and IP20 sealed LED strips but are not compatible with IP68 LED strips.
Product description :
For LED strip Dimma color 3528 width 10mm
Striplock straight connector
Connector dimensions: Length 24.3 mm, Width 15 mm, Thickness 7.7 mm
Circuit board: 3 tracks
Pin spacing: 2.4 mm
