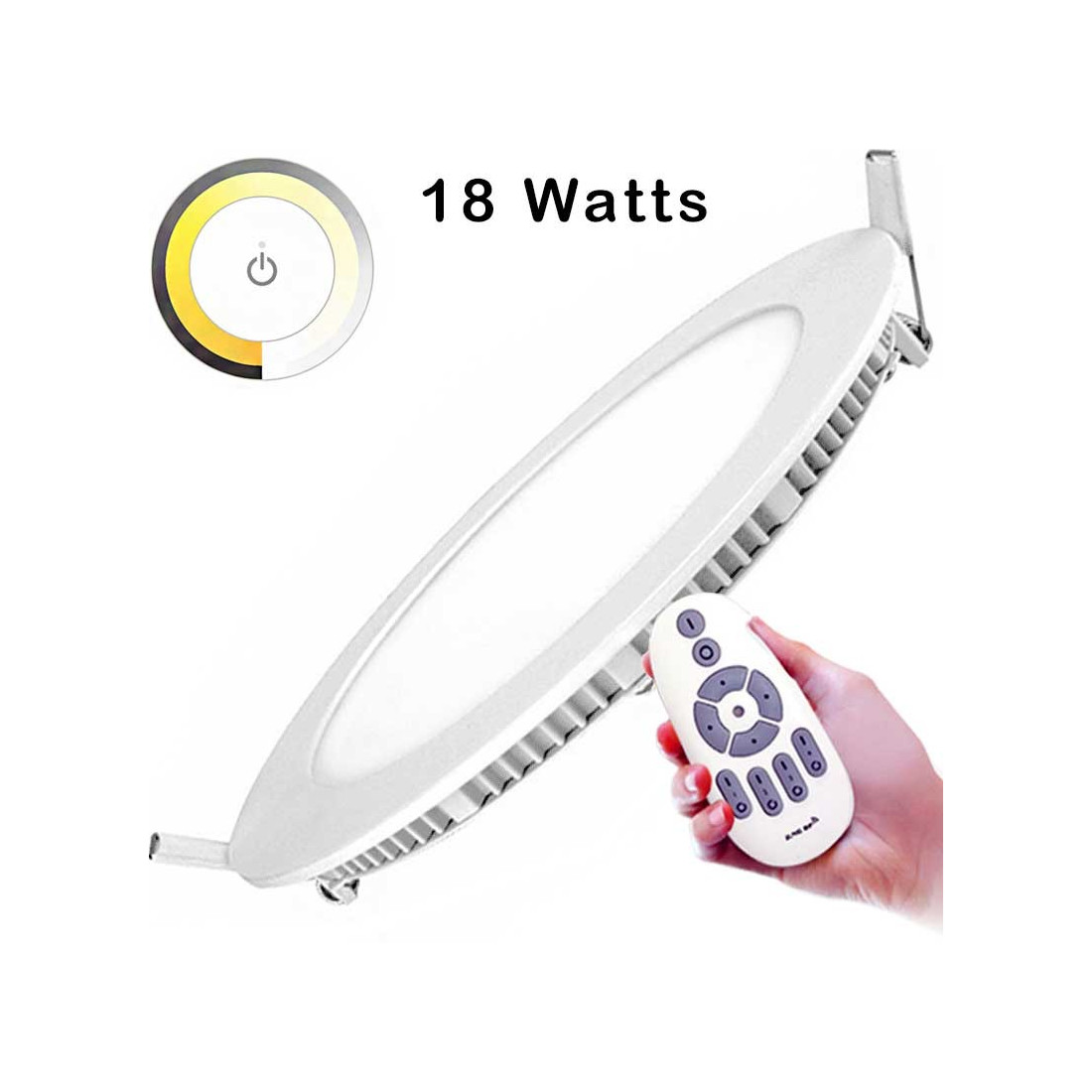

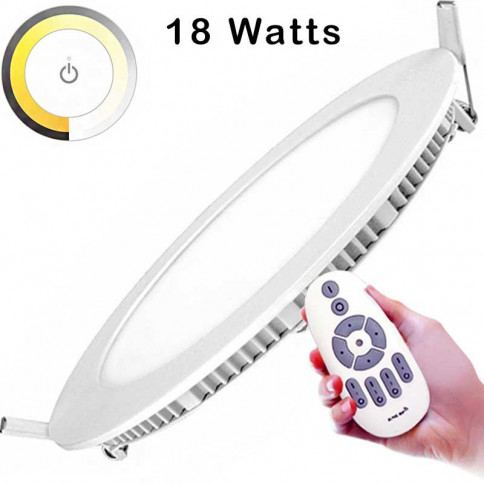

This 18-watt Dimma color LED flat panel lets you choose the lighting colour and intensity to suit your environment.
Each LED panel is fitted with an individual low-voltagepower supply with an integrated radio frequency receiver.
This receiver, which is integrated into the power supply unit, makes installation quick and easy without the need for additional cables, and is responsible for transmitting information about the chosen lighting colour and brightness level directly to the LED panel.
Dimma-color, vary the lighting colour of our LED templats
Templat LED panels can be set independently or in groups of several panels.
The remote control can be programmed to index one or more LED panels in four different zones in your home.
Remote control programming functions:
You can assign several Dimma color LED Templat panels to a group (each secondary button can then control a group of LED tiles).
To assign one or more LED panels, press the power button for the desired channel three times in succession once a single panel or group of panels has been switched on.
To de-assign the LED panels, press the same button 5 times when powering up again.
You can control several LED panels with a single remote control
This is why the remote controls are not sold with each LED panel.
However, you will need at least one remote control for your installation.
The remote control is not included in the offer but is proposed as an accessory at the bottom of the product sheet.
Discover the complete range of dimmable round Templat LED panels with no less than three different references, from the smallest in round format with a diameter of 150 mm and a power consumption of 6 watts to the 18 watt panel with a diameter of 225 mm.
The white lacquered surround will blend in perfectly with your ceiling, letting only the light shine through.
This new generation of slim LED tiles is just 12 mm thick, making it an ultra-flat luminaire that's easy to install.
These panels are equipped with Epistar 2835 SMD LEDs. They provide efficient luminosity with over 80 lumens per watt and a CRI of over 80 Ra for the three lighting colours on offer.
The brightness of Templat LED panels is powerful and even: its large diffuser prevents glare, providing soft yet intense lighting, with no shadows, over a lighting angle of 140°.
Size
Product description
Number of LEDs: 90 SMD 2835 Epistar LEDs
Spot outside diameter: Ø 225 mm
Cut-out diameter: Ø 200 mm
Power supply with integrated IR receiver included: 85 to 265 volts AC
Dimmable: yes with remote control
Light output: 170 watts traditional halogen
Light output: 1674 Lm white / 1584 Lm warm white light / 1548 Lm warm white light
Light colours adjustable with remote control: white 5200 to warm white 3300 kelvin
The remote control is not included in the offer but is proposed as an accessory at the bottom of the product data sheet.
Power factor: >0.9
Colour rendering index: white 82 ra, light warm white 82 ra, warm white 83 ra
Diffusion angle: 140
Service life: 50,000 hours
Power consumption: 18 watts
Tightness of device: IP44
No UV or infrared radiation
Basic remote control functions:
One general on/off button
Four secondary buttons for individual control of different zones
One circular pad button for adjusting light intensity and colour variation
Our products come with a one-year guarantee.
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0, for the three lighting colours offered, meaning that it presents no photo-biological hazard.
Installation
The Templat LED panel operates on low voltage and should be connected to the power supply unit supplied.
And with the WIFI module, move on to intelligent lighting and control the Templat LED panel remotely using a simple touch tablet or phone, from the comfort of your sofa. You can switch on or off any LED installation in the house, change the lighting colour or dim the light.
