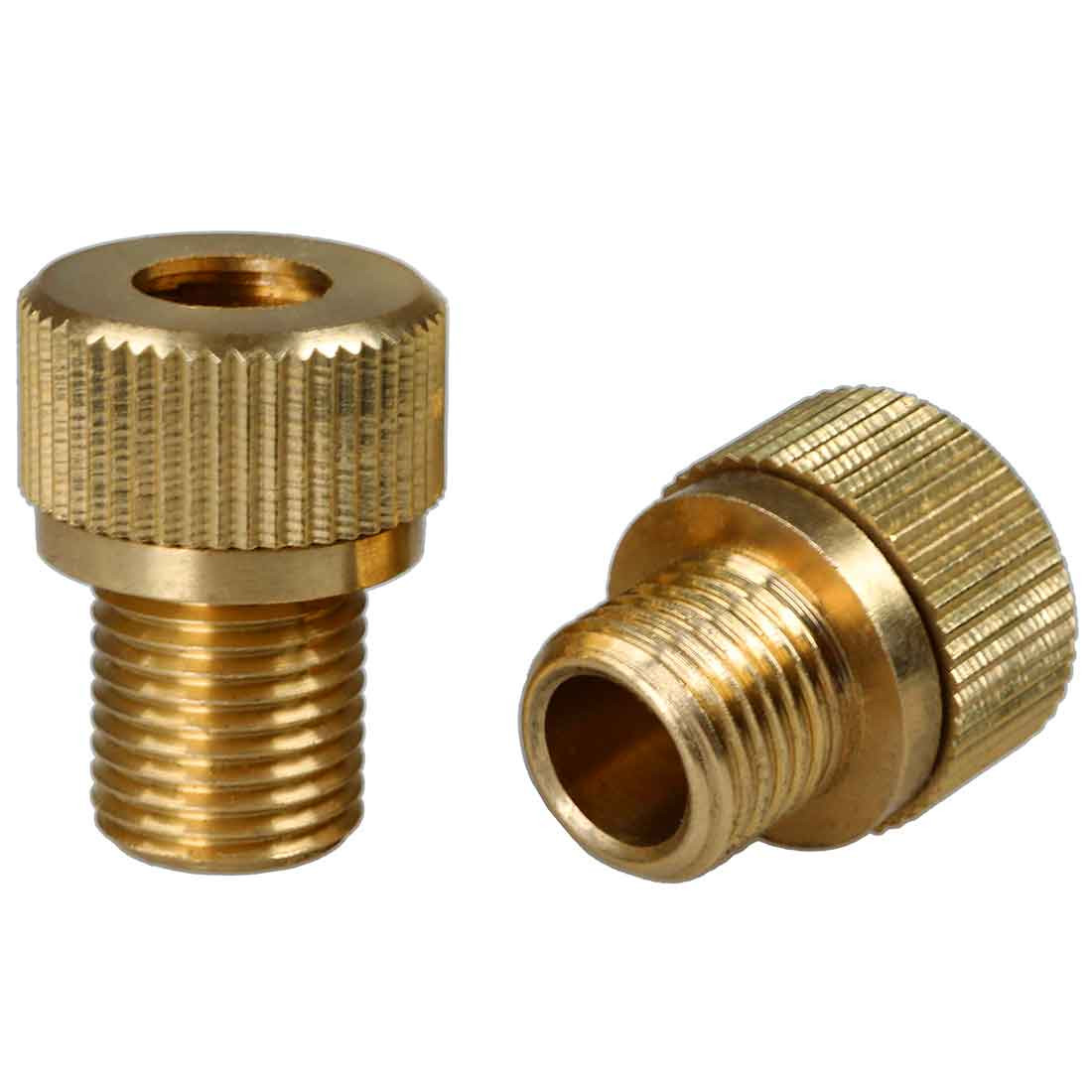

Discover the Tytia brass electrical cable clamp, ideal for lamp sockets or ceiling roses. It features a cable locking system with conical silicone and a knurled head for a better grip ,
It allows cables with a diameter of 4 to 7 mm to pass through, and its knurling gives it a vintage, elegant design, adding a touch of character to your installation.
Our Tytia cable clamp is innovative: unlike conventional models, it doesn't use locking screws that could damage the electrical cable when pressed.
It is made from a tapered silicone that exerts uniform pressure around the cable, ensuring effective locking against rotation and traction.
Product description:
Base diameter: 13.7mm
Head diameter: 13.7mm
Height: 10mm (without thread)
Cable diameter from 4mm to 7mm
Composition: brass
Thread: M10 1mm pitch, thread height 7.8mm
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electrical cable*.
Sold individually
Can be made to measure
There are two lengths of thread for the footin the different versions available. It's important to choose the length that's right for you: long enough to catch the socket thread, but not too long to allow electrical cables to pass through easily.
The thread lengths available are 8 millimetres and 11 millimetres.
